EL31L-ZGKRSK (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

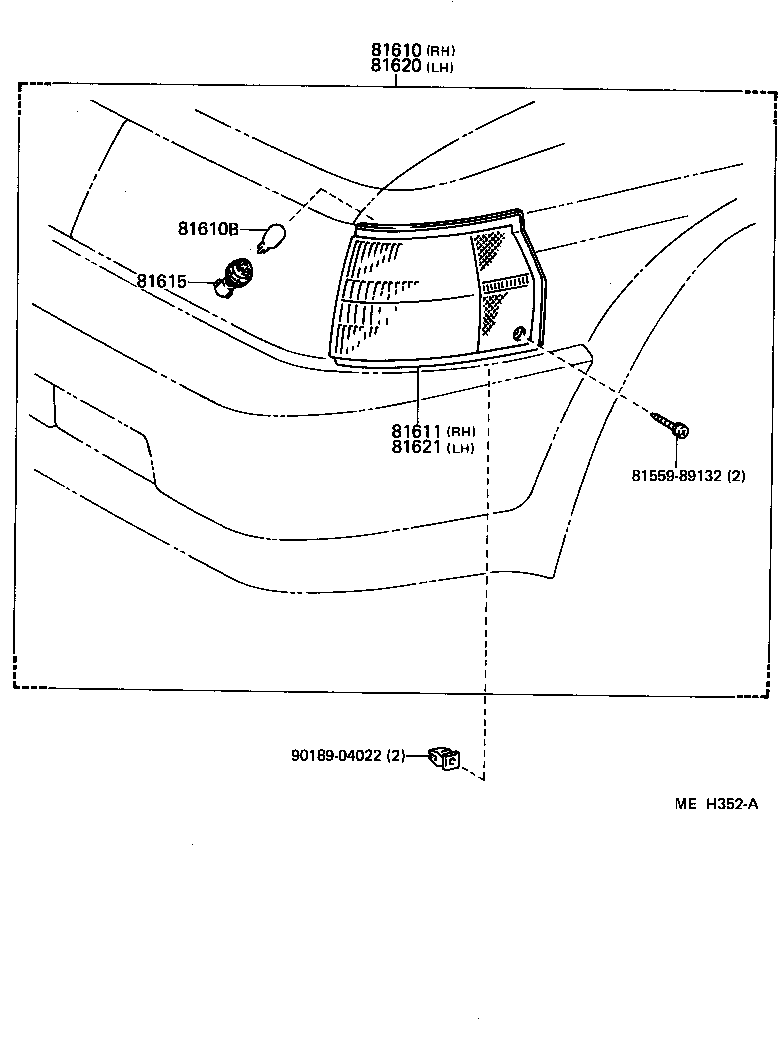

Click highlighted areas on diagram

diagram 8155989132 81610 81610B 81611 81615 81620 81621 9018904022
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-16130

EL31

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

EL31

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-16130

EL31

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81735-12180

EL31

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-16130

EL31

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-16130

EL31

 1
Common parts
81559-89132
90189-04022
