EL31L-ZGKRSK (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

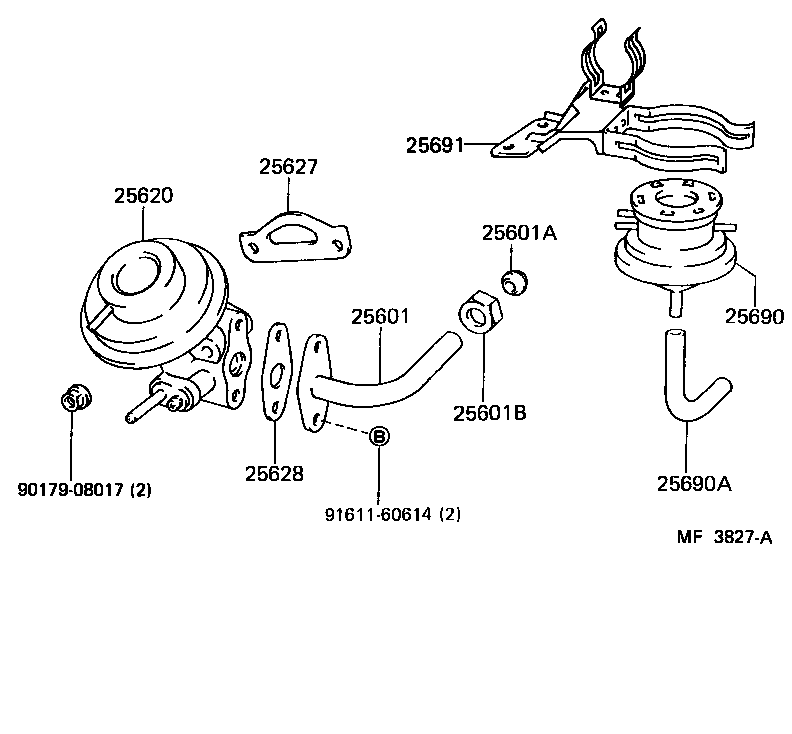

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25620 25627 25628 25690 25690A 25691 9017908017 9161160614
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-11010

3E..EL31

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-14005

3E..EL31

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22011

3E..EL31

 1
25620 - VALVE ASSY, EGR
25620-11070

3E..EL31..MTM

 1
25627 - GASKET, EGR VALVE
25627-11010

3E..EL31

 1
25628 - GASKET, EGR INLET
25628-11010

3E..EL31

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-11050

3E..EL31..MTM

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11080

3E..EL31

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-11030

3E..EL31

 1
25691-11020

3E..EL31..(DX,STD)..CND

 1
Common parts
90179-08017
91611-60614
