EL31L-ZGKRSK (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

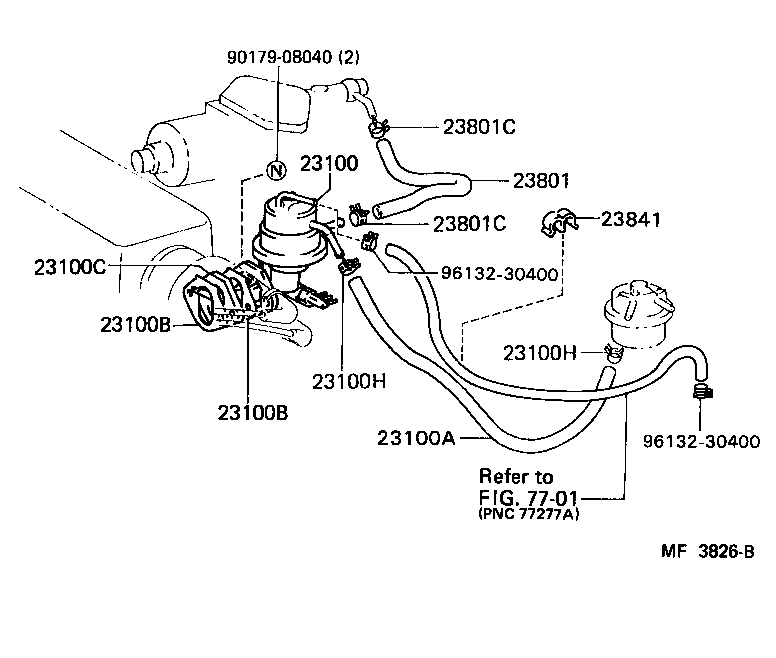

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-11060 |
3E..EL31 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95333-06030 |
3E..EL31 |
1 | ||
| 95333-06028 |
3E..EL31 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05017 |
3E..EL31 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05017 |
3E..EL31 |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 23915-10020 |
3E..EL31 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3E..EL31 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3E..EL31 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95332-06030 |
3E..EL31 *H,L=300 |
1 | ||
| 90447-12086 |
3E..EL31 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-11009 |
3E..EL31 |
2 | ||
| 96132-30600 |
3E..EL31 |
2 | ||
| 90467-11049 |
3E..EL31 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-11009 |
3E..EL31 |
2 | ||
| 96132-30600 |
3E..EL31 |
2 | ||
| 90467-11049 |
3E..EL31 |
2 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 90464-00231 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 96132-30400 | ||||
| Linked diagrams | ||||
| 7701 | ||||
