EL31L-ZGKRSK (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

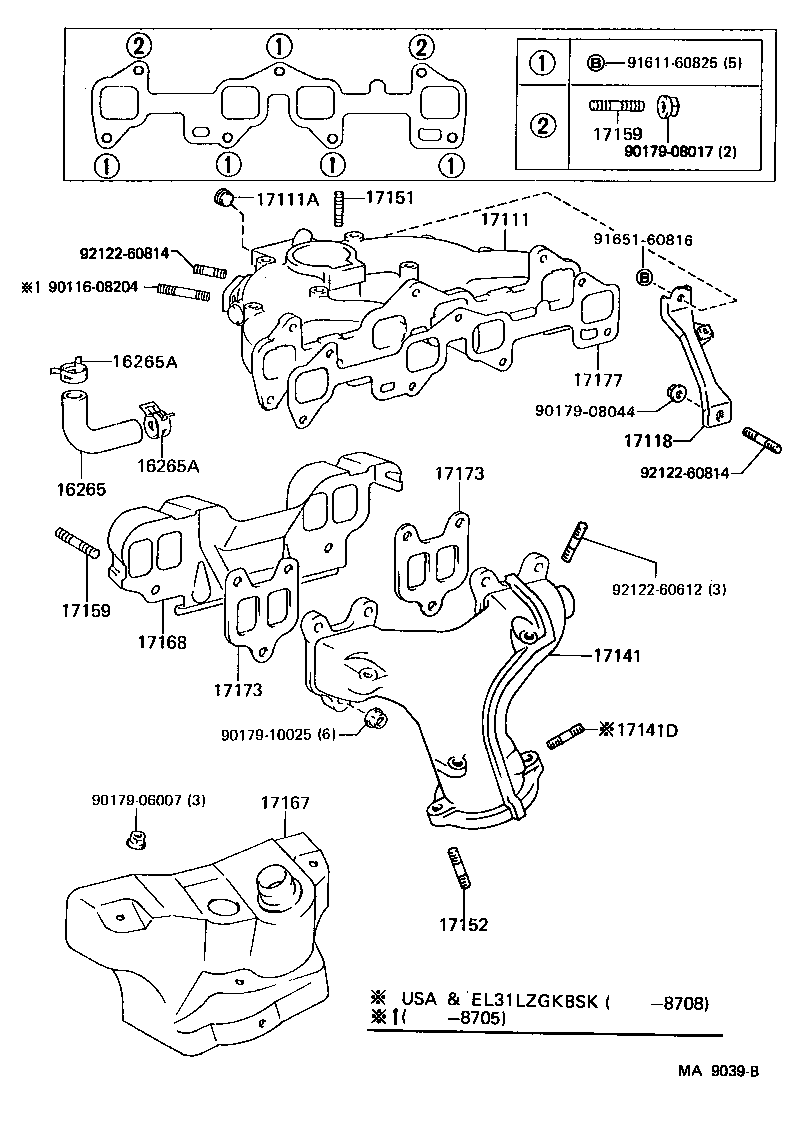

Click highlighted areas on diagram

diagram 16265 16265A 16265A 17111 17111A 17118 17141 17141D 17151 17152 17159 17159 17167 17168 17173 17173 17177 9011608204 9017906007 9017908017 9017908044 9017910025 9161160825 9165160816 9212260612 9212260814 9212260814
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
16265-11020

3E..EL31

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

3E..EL31

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

3E..EL31

 2
17111 - MANIFOLD, INTAKE
17101-11130

3E..EL31

 1
17111A - PLUG, NO.1
90344-53015

3E..EL31

 1
17118 - STAY, MANIFOLD
17118-11090

3E..EL31

 1
17141 - MANIFOLD, EXHAUST
17141-11080

3E..EL31

 1
17141-11100

3E..EL31..(DX,STD)..CND

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

3E..EL31

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08204

3E..EL31

 5
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

3E..EL31

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10131

3E..EL31

EXHAUST MANIFOLD,NO.1

 4
92132-60825

3E..EL31

INTAKE MANIFOLD

 2
90116-10132

3E..EL31

EXHAUST MANIFOLD,NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10131

3E..EL31

EXHAUST MANIFOLD,NO.1

 4
92132-60825

3E..EL31

INTAKE MANIFOLD

 2
90116-10132

3E..EL31

EXHAUST MANIFOLD,NO.2

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-11060

3E..EL31

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-11031

3E..EL31

 1
17168-11030

3E..EL31

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11020

3E..EL31

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11020

3E..EL31

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11010

3E..EL31

 1
Common parts
90116-08204
90179-06007
90179-08017
90179-08044
90179-10025
91611-60825
91651-60816
92122-60612
92122-60814
