EL31L-ZGKRSA (1986)
Toyota Tercel
(8608- )3DS,5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62493A - COVER, REAR ROOM LAMP OPENING | ||||
| 62493-1603004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 62493-1603001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 62493-1603005 |
EL31..3DS,5DS BEIGE,BEIGE,TRIM4# |
1 | ||
| 64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-1603001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 64033-1603004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 64033-1603005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-1603001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 64033-1603004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 64033-1603005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64303 - BRACKET SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64301-1607001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 64301-1607004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 64301-1607005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64301-1608001 |
EL31..3DS,5DS W/SPEAKER,BLACK,BLACK,TRIM2# |
1 | ||
| 64301-1608005 |
EL31..3DS,5DS W/SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64301-1609005 |
EL31..3DS,5DS W/SECURITY LOCK,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64301-1608004 |
EL31..3DS,5DS W/SPEAKER,BLUE,BLUE,TRIM8# |
1 | ||
| 64301-1610001 |
EL31..3DS,5DS W/SECURITY LOCK,SPEAKER,BLACK,BLACK,TRIM2# |
1 | ||
| 64301-1610005 |
EL31..3DS,5DS W/SECURITY LOCK,SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64301-1609004 |
EL31..3DS,5DS W/SECURITY LOCK,BLUE,BLUE,TRIM8# |
1 | ||
| 64301-1610004 |
EL31..3DS,5DS W/SECURITY LOCK,SPEAKER,BLUE,BLUE,TRIM8# |
1 | ||
| 64301-1609001 |
EL31..3DS,5DS W/SECURITY LOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 64304 - BRACKET SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64302-1607004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 64302-1607005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64302-1610004 |
EL31..3DS,5DS W/SECURITY LOCK,SPEAKER,BLUE,BLUE,TRIM8# |
1 | ||
| 64302-1608001 |
EL31..3DS,5DS W/SPEAKER,BLACK,BLACK,TRIM2# |
1 | ||
| 64302-1608004 |
EL31..3DS,5DS W/SPEAKER,BLUE,BLUE,TRIM8# |
1 | ||
| 64302-1609001 |
EL31..3DS,5DS W/SECURITY LOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 64302-1608005 |
EL31..3DS,5DS W/SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64302-1609005 |
EL31..3DS,5DS W/SECURITY LOCK,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64302-1610001 |
EL31..3DS,5DS W/SECURITY LOCK,SPEAKER,BLACK,BLACK,TRIM2# |
1 | ||
| 64302-1607001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 64302-1609004 |
EL31..3DS,5DS W/SECURITY LOCK,BLUE,BLUE,TRIM8# |
1 | ||
| 64302-1610005 |
EL31..3DS,5DS W/SECURITY LOCK,SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-12030 |
EL31..3DS,5DS |
1 | ||
| 64306-16030 |
EL31..3DS,5DS |
2 | ||
| 64323 - CLAMP, PACKAGE TRAY TRIM, NO.1 | ||||
| 64323-10010 |
EL31..3DS,5DS RH |
1 | ||
| 64324-10010 |
EL31..3DS,5DS LH |
1 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-1620001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 64330-1621004 |
EL31..3DS,5DS W/SPEAKER,BLUE,BLUE,TRIM8# |
1 | ||
| 64330-1620004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 64330-1621005 |
EL31..3DS,5DS W/SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-1620005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-1621001 |
EL31..3DS,5DS W/SPEAKER,BLACK,BLACK,TRIM2# |
1 | ||
| 64373A - STOPPER, PACKAGE TRAY TRIM | ||||
| 64379-16010 |
EL31..3DS,5DS LH |
1 | ||
| 64373-16050 |
EL31..3DS,5DS RH |
1 | ||
| 64373-16030 |
EL31..3DS |
2 | ||
| 64373A - STOPPER, PACKAGE TRAY TRIM | ||||
| 64379-16010 |
EL31..3DS,5DS LH |
1 | ||
| 64373-16050 |
EL31..3DS,5DS RH |
1 | ||
| 64373-16030 |
EL31..3DS |
2 | ||
| 64387 - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-10010 |
EL31..3DS,5DS |
2 | ||
| 64395 - PIN, PACKAGE TRAY TRIM HINGE | ||||
| 64395-12020 |
EL31..3DS,5DS |
2 | ||
| 64706 - COVER SUB-ASSY, QUARTER TRIM, JACK | ||||
| 64766-1603001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 64766-1603005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64766-1603004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-1605004 |
EL31..3DS,5DS W/SECURITY LOCK,BLUE,BLUE,TRIM8# |
1 | ||
| 64716-1604004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 64716-1604001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
1 | ||
| 64716-1604005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64716-1605005 |
EL31..3DS,5DS W/SECURITY LOCK,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64716-1605001 |
EL31..3DS,5DS W/SECURITY LOCK,BLACK,BLACK,TRIM2# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0704311 |
EL31..3DS,5DS TYPE A,BLACK,BLACK,TRIM2# |
3 | ||
| 90467-0706601 |
EL31..3DS,5DS TYPE B,BLACK,BLACK,TRIM2# |
6 | ||
| 90467-0704334 |
EL31..3DS,5DS TYPE A,BLUE,BLUE,TRIM8# |
3 | ||
| 90467-0706604 |
EL31..3DS,5DS TYPE B,BLUE,BLUE,TRIM8# |
6 | ||
| 90467-0704315 |
EL31..3DS,5DS TYPE A,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 90467-0706605 |
EL31..3DS,5DS TYPE B,BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0704311 |
EL31..3DS,5DS TYPE A,BLACK,BLACK,TRIM2# |
3 | ||
| 90467-0706601 |
EL31..3DS,5DS TYPE B,BLACK,BLACK,TRIM2# |
6 | ||
| 90467-0704334 |
EL31..3DS,5DS TYPE A,BLUE,BLUE,TRIM8# |
3 | ||
| 90467-0706604 |
EL31..3DS,5DS TYPE B,BLUE,BLUE,TRIM8# |
6 | ||
| 90467-0704315 |
EL31..3DS,5DS TYPE A,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 90467-0706605 |
EL31..3DS,5DS TYPE B,BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 64750 - PANEL ASSY, DECK SIDE TRIM, RH | ||||
| 64714-1611004 |
EL31..3DS BLUE,BLUE,TRIM8# |
1 | ||
| 64714-1611005 |
EL31..3DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64714-1611001 |
EL31..3DS BLACK,BLACK,TRIM2# |
1 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-14040 |
EL31..3DS |
10 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-14040 |
EL31..3DS |
10 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-14040 |
EL31..3DS |
10 | ||
| 64759A - COVER, SHOCK ABSORBER HEAD | ||||
| 58731-1604005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 58731-1604001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
2 | ||
| 58731-1604004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
2 | ||
| 64759A - COVER, SHOCK ABSORBER HEAD | ||||
| 58731-1604005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 58731-1604001 |
EL31..3DS,5DS BLACK,BLACK,TRIM2# |
2 | ||
| 58731-1604004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
2 | ||
| 64760 - PANEL ASSY, DECK SIDE TRIM, LH | ||||
| 64715-1611005 |
EL31..3DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64715-1611004 |
EL31..3DS BLUE,BLUE,TRIM8# |
1 | ||
| 64715-1611001 |
EL31..3DS BLACK,BLACK,TRIM2# |
1 | ||
| 64768 - STOPPER, JACK COVER | ||||
| 64768-16010 |
EL31..3DS,5DS |
1 | ||
| 73903 - BRACKET SUB-ASSY, REAR SHELF, RH | ||||
| 73903-16010 |
EL31..3DS,5DS W/SECURITY LOCK |
1 | ||
| 73904 - BRACKET SUB-ASSY, REAR SHELF, LH | ||||
| 73904-16010 |
EL31..3DS,5DS W/SECURITY LOCK |
1 | ||
| Common parts | ||||
| 90119-06342 | ||||
| 90119-06343 | ||||
| 90467-0805601 | ||||
| 90468-05014 | ||||
| 93520-55012 | ||||
| 93540-13010 | ||||
| 93560-54012 | ||||

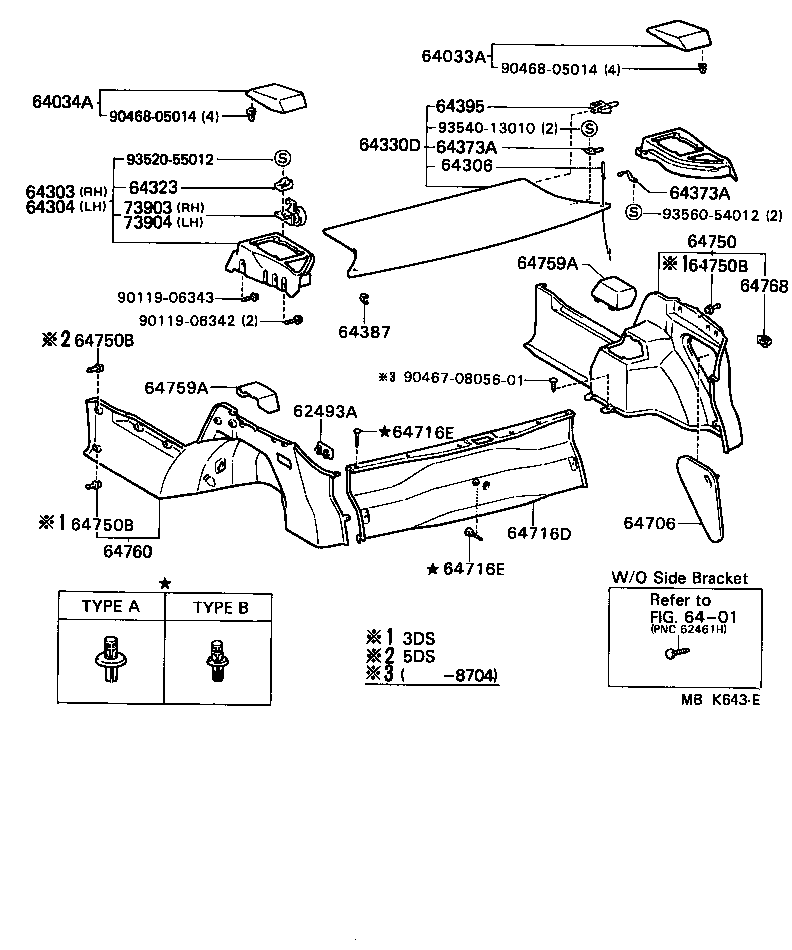

| Linked diagrams | ||||
| 6401 | ||||
