EL31L-ZGKBSK (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3DS,5DS

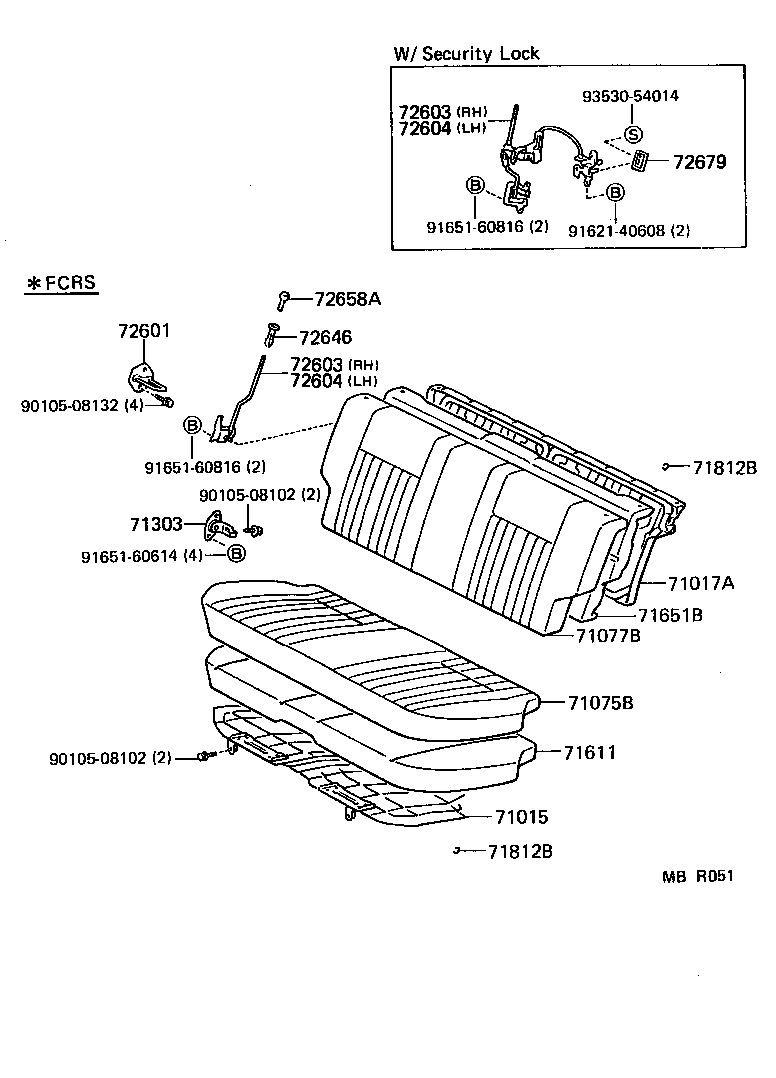

Click highlighted areas on diagram

diagram 71015 71017A 71075B 71077B 71303 71611 71651B 71812B 71812B 72601 72603 72603 72604 72604 72646 72658A 72679 9010508102 9010508102 9010508132 9162140608 9165160614 9165160816 9165160816 9353054014
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-16070

EL31..3DS,5DS

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-16120

EL31..3DS,5DS

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-1622003

EL31..BASE

GRAY,TRIM2#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-1G10003

EL31..BASE

GRAY,TRIM2#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-16040

EL31..3DS,5DS

 2
71611 - PAD, REAR SEAT CUSHION
71611-16190

EL31..3DS,5DS

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-16210

EL31..3DS,5DS

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EL31..3DS,5DS

 80
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

EL31..3DS,5DS

 80
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-16070

EL31..3DS,5DS

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-16150

EL31..3DS,5DS

 1
72630-16160

EL31..EZ;EL31..5DS..USA;EL31..3DS..EFI;EL31..(3DS,5DS)..CND

W(SECURITY LOCK)

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-16150

EL31..3DS,5DS

 1
72630-16160

EL31..EZ;EL31..5DS..USA;EL31..3DS..EFI;EL31..(3DS,5DS)..CND

W(SECURITY LOCK)

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-16110

EL31..3DS,5DS

 1
72640-16120

EL31..EZ;EL31..5DS..USA;EL31..3DS..EFI;EL31..(3DS,5DS)..CND

W(SECURITY LOCK)

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-16110

EL31..3DS,5DS

 1
72640-16120

EL31..EZ;EL31..5DS..USA;EL31..3DS..EFI;EL31..(3DS,5DS)..CND

W(SECURITY LOCK)

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-1601001

EL31..3DS,5DS

BLACK,TRIM2#

 2
72658A - KNOB, REAR SEAT BACK LOCKING
72658-2301001

EL31..3DS,5DS

BLACK,TRIM2#

 2
72658-1602001

EL31..3DS,5DS

BLACK,TRIM2#

 2
72679 - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-1601001

EL31..EZ;EL31..5DS..USA;EL31..3DS..EFI;EL31..(3DS,5DS)..CND

BLACK,TRIM2#

 2
Common parts
90105-08102
90105-08132
91621-40608
91651-60614
91651-60816
93530-54014
