EL31L-ZGKBSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

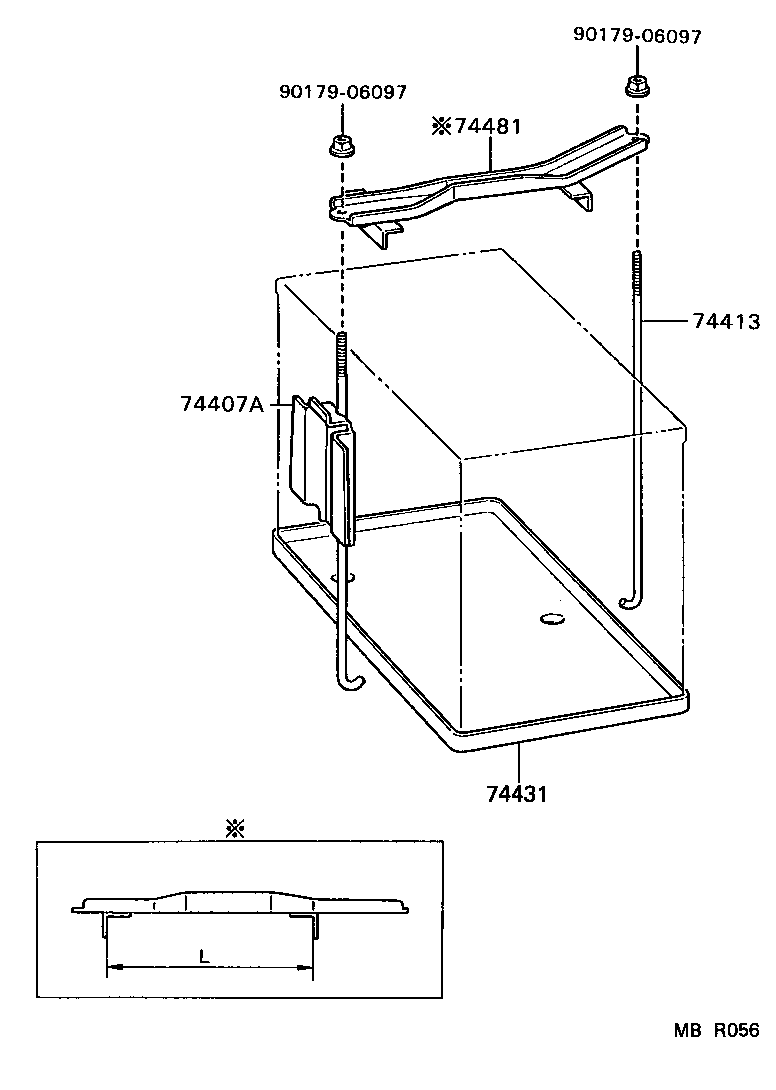

Click highlighted areas on diagram

diagram 74407A 74413 74431 74481 9017906097 9017906097
Part # Description Qty Price
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-16020

EL31

 1
74413 - BOLT, BATTERY CLAMP
74451-16010

EL31

 1
74451-14010

EL31..USA

W(BATTERY=32C24L)

 1
74431 - TRAY, BATTERY
74431-14020

EL31..USA

W(BATTERY=32C24L)

 1
74431-14030

EL31

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-16080

EL31

 1
74404-16070

EL31..USA

W(BATTERY=32C24L)

 1
Common parts
90179-06097
