EL31L-ZGKBSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

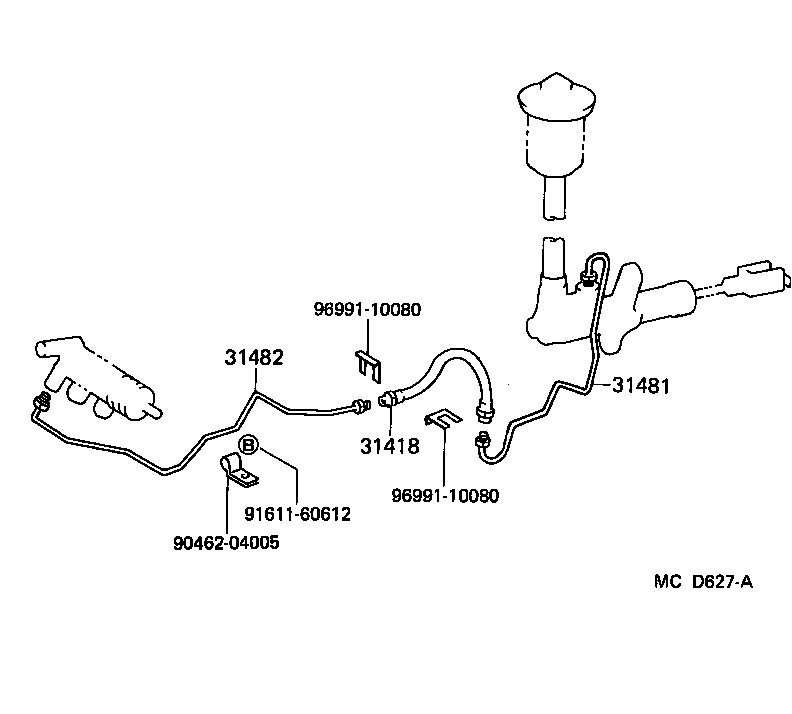

ILLUST NO. 2 OF 2(8808- )MTM

Click highlighted areas on diagram

diagram 31418 31481 31482 9046204005 9161160612 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
96816-50260

EL31..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16031

EL31..MTM

 1
31481-16030

EL31..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10010

EL31..MTM

 1
Common parts
90462-04005
91611-60612
96991-10080

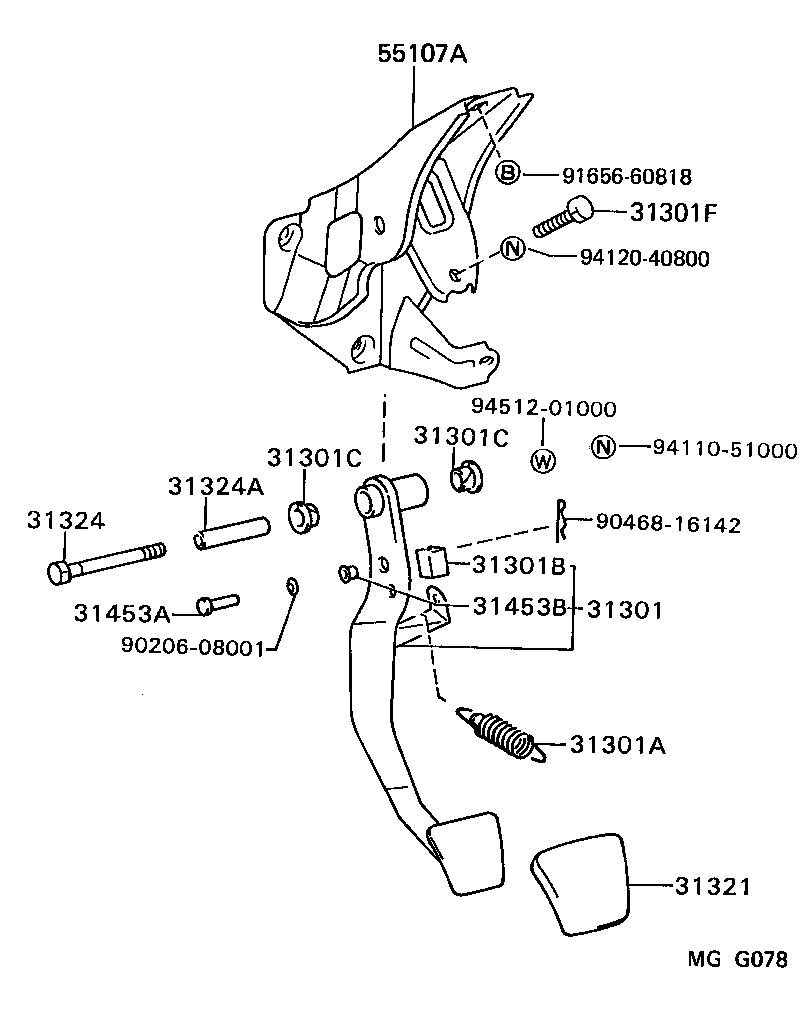

ILLUST NO. 1 OF 2(8808- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9020608001 9046816142 9165660818 9411051000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16070

EL31..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14036

EL31..MTM

 1
90507-14023

EL31..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10010

EL31..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

EL31..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

EL31..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

EL31..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

EL31..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

EL31..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

EL31..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

EL31..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

EL31..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-16050

EL31..MTM

 1
Common parts
90206-08001
90468-16142
91656-60818
94110-51000
94120-40800
94512-01000
