EL31L-ZGHRSK (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

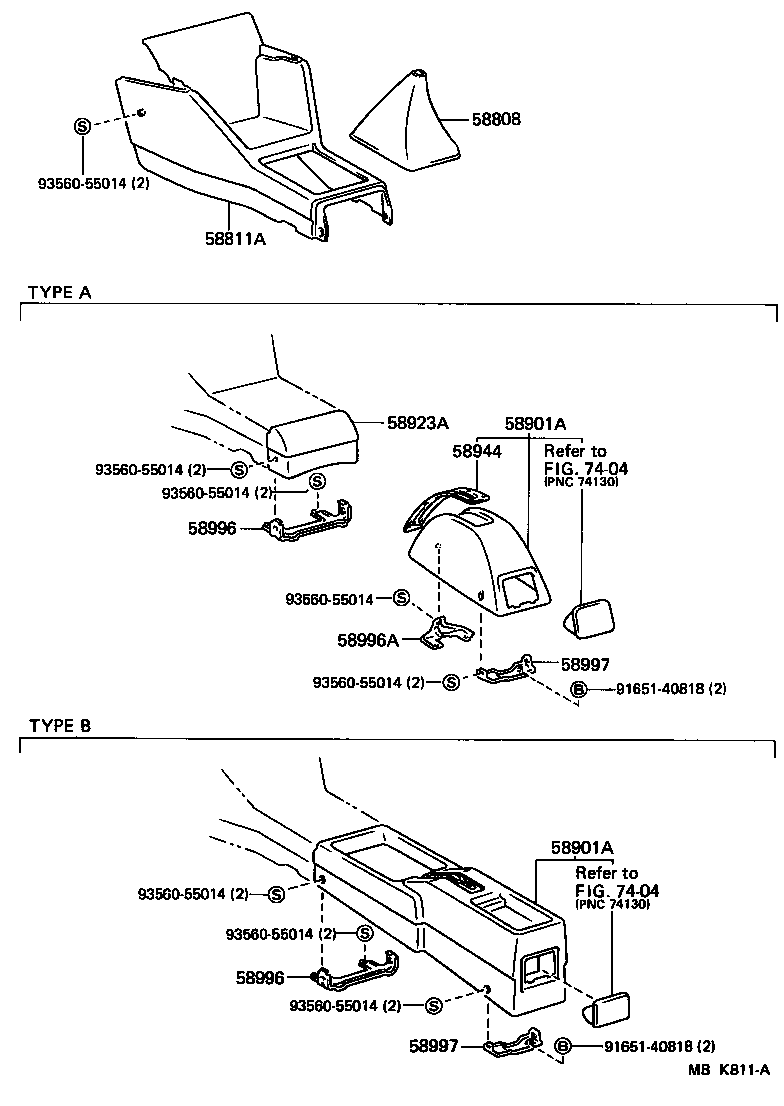

Click highlighted areas on diagram

diagram 58808 58811A 58901A 58901A 58923A 58944 58996 58996 58996A 58997 58997 7404 7404 9165140818 9165140818 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014
Part # Description Qty Price
58811A - BOX, CONSOLE, FRONT
58802-1603104

EL31..CND

BLUE,BLUE,TRIM8#

 1
58802-1603105

EL31..CND

BEIGE,DARK BEIGE,TRIM4#

 1
58802-1603004

EL31..CND

BLUE,BLUE,TRIM8#

 1
58802-1603005

EL31..CND

BEIGE,DARK BEIGE,TRIM4#

 1
58802-1603001

EL31..CND

BLACK,BLACK,TRIM2#

 1
58802-1603101

EL31..CND

BLACK,BRACK,TRIM2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1607004

EL31

TYPE A,BLUE,BLUE,TRIM8#

 1
58901-1607001

EL31

TYPE A,BLACK,BLACK,TRIM2#

 1
58901-1607005

EL31

TYPE A,BEIGE,DARK BLUE,TRIM4#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1607004

EL31

TYPE A,BLUE,BLUE,TRIM8#

 1
58901-1607001

EL31

TYPE A,BLACK,BLACK,TRIM2#

 1
58901-1607005

EL31

TYPE A,BEIGE,DARK BLUE,TRIM4#

 1
58923A - PANEL, CONSOLE REAR END
58923-1601005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
58923-1601001

EL31

BLACK,BLACK,TRIM2#

 1
58923-1601004

EL31

BLUE,BLUE,TRIM8#

 1
58944 - COVER, PARKING BRAKE HOLE
58941-1608001

EL31

BLACK,BLACK,TRIM2#

 1
58941-1608005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
58941-1608004

EL31

BLUE,BLUE,TRIM8#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-16040

EL31

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-16060

EL31

TYPE A CONSOLE

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-16060

EL31

TYPE A CONSOLE

 1
Common parts
91651-40818
93560-55014
Linked diagrams
7404
