EL31L-ZGHRSK (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

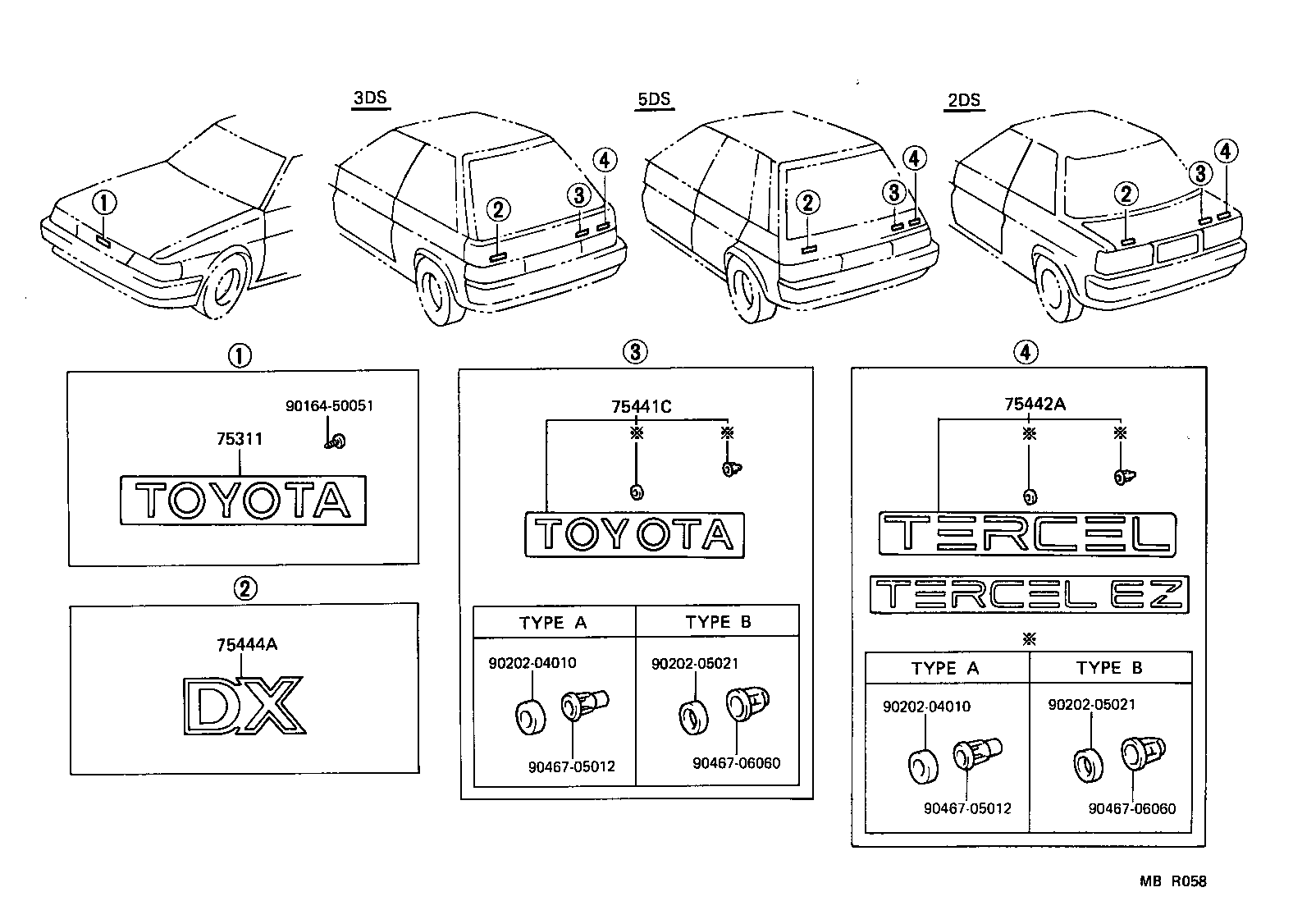

Click highlighted areas on diagram

diagram 75311 75441C 75442A 75444A 9016450051 9020204010 9020204010 9020205021 9020205021 9046705012 9046705012 9046706060 9046706060
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16300

EL31

 1
75441C - PLATE, BACK DOOR NAME
75441-16241

EL31

TOYOTA,TYPE A

 1
75441-16271

EL31

TOYOTA,TYPE B

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-16401

EL31..BASE..CND;EL31..3DS..(3FC,5F)

TERCEL,TYPE A

 1
75442-16471

EL31..BASE..CND;EL31..3DS..(3FC,5F)

TERCEL,TYPE B

 1
Common parts
90164-50051
90202-04010
90202-05021
90467-05012
90467-06060
