EL31L-ZGHRSK (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

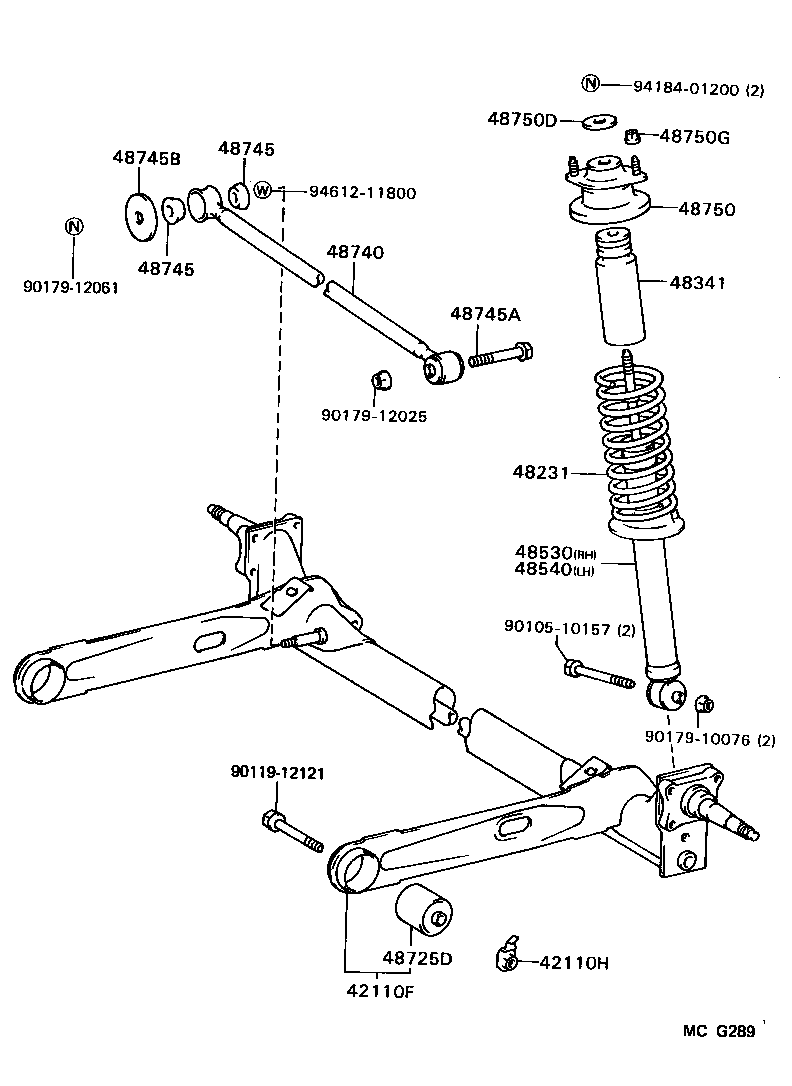

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-16050 |
EL31 |
1 | ||
| 42110-16051 |
EL31 |
1 | ||
| 42110H - NUT (FOR REAR AXLE BEAM) | ||||
| 90179-12041 |
EL31 |
2 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-16350 |
EL31 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-16040 |
EL31 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-16130 |
EL31 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-16130 |
EL31 |
1 | ||
| 48725D - BUSH, REAR SUSPENSION ARM, NO.3 | ||||
| 48725-16110 |
EL31 |
2 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-16010 |
EL31 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-18010 |
EL31 |
2 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-18010 |
EL31 |
2 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90105-12070 |
EL31 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12047 |
EL31 |
1 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-16040 |
EL31 |
2 | ||
| 48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 90948-02100 |
EL31 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08111 |
EL31 |
4 | ||
| Common parts | ||||
| 90105-10157 | ||||
| 90119-12121 | ||||
| 90179-10076 | ||||
| 90179-12025 | ||||
| 90179-12061 | ||||
| 94184-01200 | ||||
| 94612-11800 | ||||
