EL31L-ZGHRSK (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

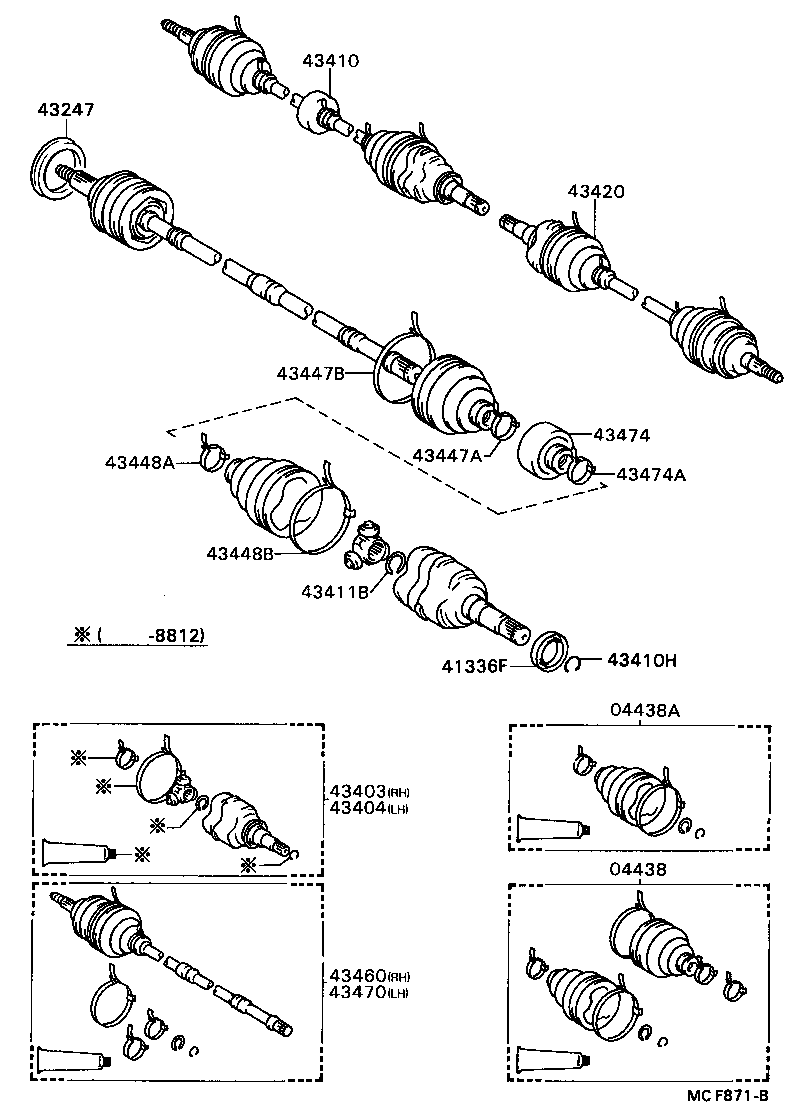

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438 - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-10022 |
EL31 |
2 | ||
| 04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT | ||||
| 04438-10011 |
EL31 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-12010 |
EL31 |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-10010 |
EL31 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19046 |
EL31 |
1 | ||
| 43403-10010 |
EL31 |
1 | ||
| 43404 - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19046 |
EL31 |
1 | ||
| 43403-10010 |
EL31 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-16060 |
EL31 |
1 | ||
| 43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT) | ||||
| 90521-26004 |
EL31 |
1 | ||
| 43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) | ||||
| 90520-22001 |
EL31 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-16060 |
EL31 |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01078 |
EL31 |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90949-01080 |
EL31 |
1 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01078 |
EL31 |
1 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90949-01146 |
EL31 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19155 |
EL31 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19125 |
EL31 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-10010 |
EL31 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 90949-01078 |
EL31 |
1 | ||
