EL31L-ZGHRSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

Click highlighted areas on diagram

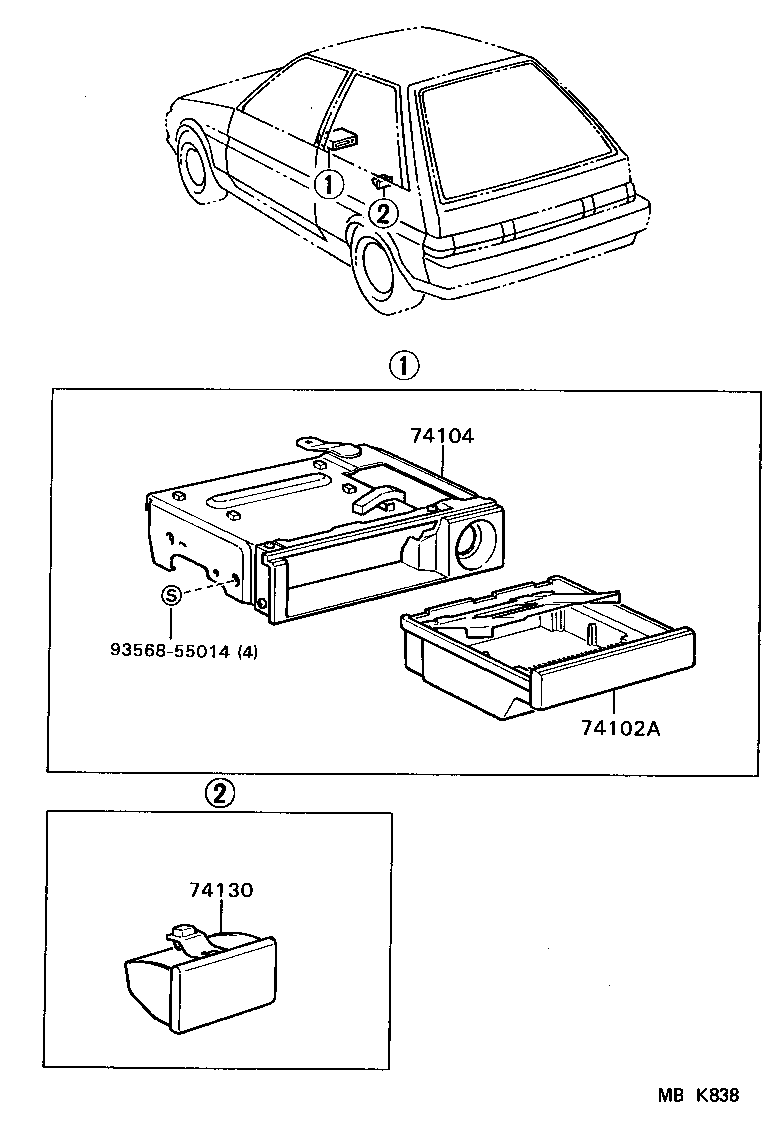

diagram 74102A 74104 74130 9356855014
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-16030

EL31

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-16040

EL31

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1204011

EL31

BLACK,BLACK,TRIM2#

 1
74130-1204034

EL31

BLUE,BLUE,TRIM8#

 1
74130-1204035

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
Common parts
93568-55014
