EL31L-ZGHRSA (1988)
Toyota Tercel

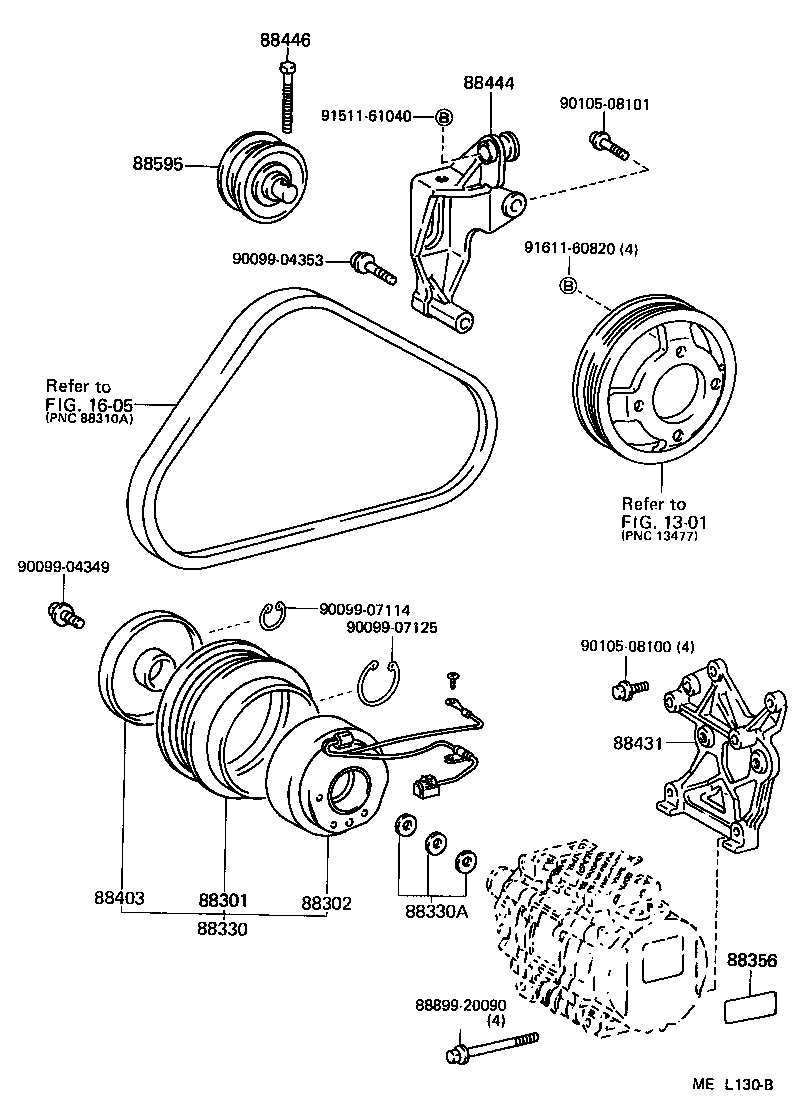

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-16050 |
EL31..TER |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
EL31..TER |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-16050 |
EL31..TER |
1 | ||
| 88410-10210 |
EL31..TER |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
EL31..TER |
1 | ||
| 88356 - LABEL, COMPRESSOR CAUTION | ||||
| 88356-12010 |
EL31..TER |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
EL31..TER |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-16040 |
EL31..TER |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-16030 |
EL31..TER |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12170 |
EL31..TER |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04349 | ||||
| 90099-04353 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-08100 | ||||
| 90105-08101 | ||||
| 91511-61040 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1605 | ||||

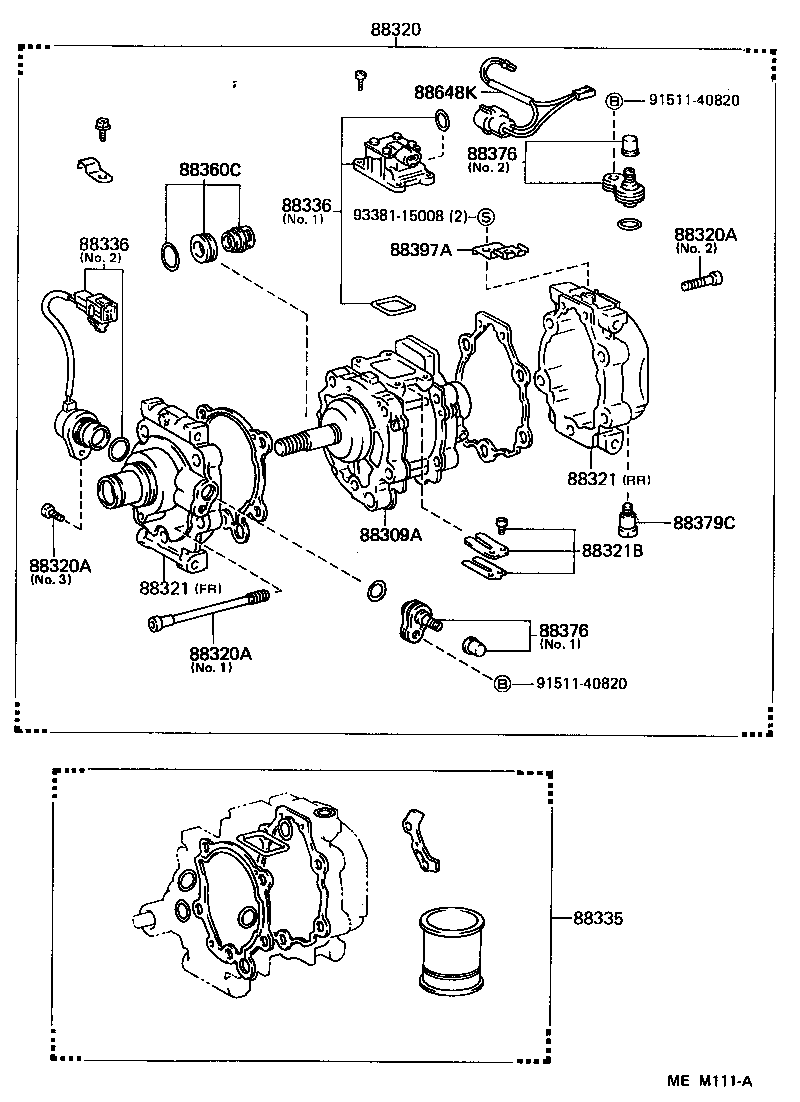

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-16030 |
EL31..TER |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-16130 |
EL31..TER |
1 | ||
| 88320-16120 |
EL31..TER W(POWER STEERING) |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16030 |
EL31..TER NO.3 |
1 | ||
| 88329-16020 |
EL31..TER NO.2 |
2 | ||
| 88329-16010 |
EL31..TER NO.1 |
5 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16030 |
EL31..TER NO.3 |
1 | ||
| 88329-16020 |
EL31..TER NO.2 |
2 | ||
| 88329-16010 |
EL31..TER NO.1 |
5 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16030 |
EL31..TER NO.3 |
1 | ||
| 88329-16020 |
EL31..TER NO.2 |
2 | ||
| 88329-16010 |
EL31..TER NO.1 |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16040 |
EL31..TER W(POWER STEERING),FR |
1 | ||
| 88322-12050 |
EL31..TER RR |
1 | ||
| 88322-36040 |
EL31..TER RR |
1 | ||
| 88321-16030 |
EL31..TER FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-16040 |
EL31..TER W(POWER STEERING),FR |
1 | ||
| 88322-12050 |
EL31..TER RR |
1 | ||
| 88322-36040 |
EL31..TER RR |
1 | ||
| 88321-16030 |
EL31..TER FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-16010 |
EL31..TER |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-16050 |
EL31..TER |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EL31..TER NO.1 |
1 | ||
| 88336-16010 |
EL31..TER NO.1 |
1 | ||
| 88336-16020 |
EL31..TER NO.2 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-16010 |
EL31..TER NO.1 |
1 | ||
| 88336-16010 |
EL31..TER NO.1 |
1 | ||
| 88336-16020 |
EL31..TER NO.2 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-16010 |
EL31..TER |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-16020 |
EL31..TER NO.1 |
1 | ||
| 88376-16030 |
EL31..TER NO.2 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-16020 |
EL31..TER NO.1 |
1 | ||
| 88376-16030 |
EL31..TER NO.2 |
1 | ||
| 88379C - VALVE, PRESSURE RELIEF | ||||
| 88379-12040 |
EL31..TER |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-16010 |
EL31..TER |
1 | ||
| 88648K - WIRE SUB-ASSY, SENSOR | ||||
| 88648-16130 |
EL31..TER |
1 | ||
| 88648-16140 |
EL31..TER W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 91511-40820 | ||||
| 93381-15008 | ||||
