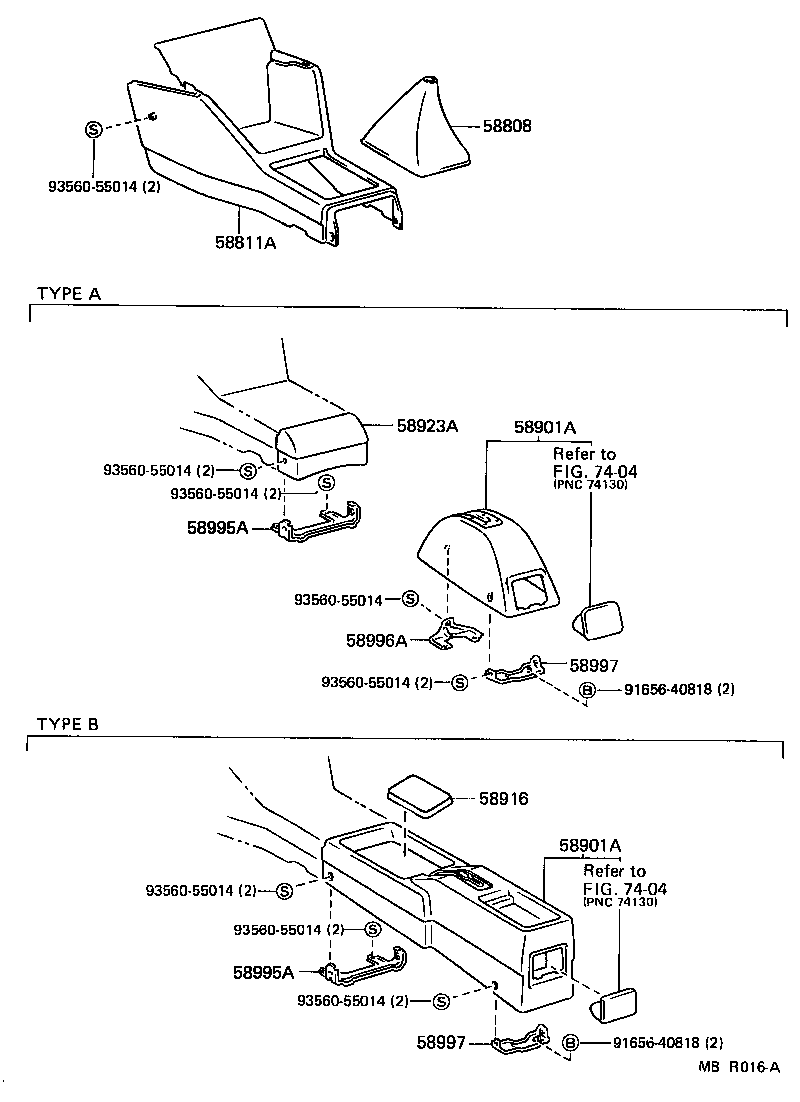

EL31L-ZGHRSA (1988)
Toyota Tercel
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-1608004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 58802-1603104 |
EL31..(DX,STD)..USA..CBR COLD SPEC,BLUE,TRIM8# |
1 | ||
| 58802-1603101 |
EL31..USA..CBR COLD SPEC,BRACK,TRIM2# |
1 | ||
| 58811-1608001 |
EL31..USA BLACK,TRIM2# |
1 | ||
| 58802-1603106 |
EL31..(DX,STD)..USA..CBR COLD SPEC,BROWN,TRIM4# |
1 | ||
| 58811-1608006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1607006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 58901-1608006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 58901-1607004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 58901-1607001 |
EL31..DX,STD BLACK,TRIM2# |
1 | ||
| 58901-1608001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 58901-1608004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1607006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 58901-1608006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 58901-1607004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 58901-1607001 |
EL31..DX,STD BLACK,TRIM2# |
1 | ||
| 58901-1608001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 58901-1608004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-1601001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 58916-1601006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 58916-1601004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-1601006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 58923-1601004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 58923-1601001 |
EL31 BLACK,TRIM2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16040 |
EL31..DX,STD |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16060 |
EL31..DX,STD |
1 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-16060 |
EL31..DX,STD |
1 | ||
| Common parts | ||||
| 91656-40818 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
