EL31L-ZGHRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3FC

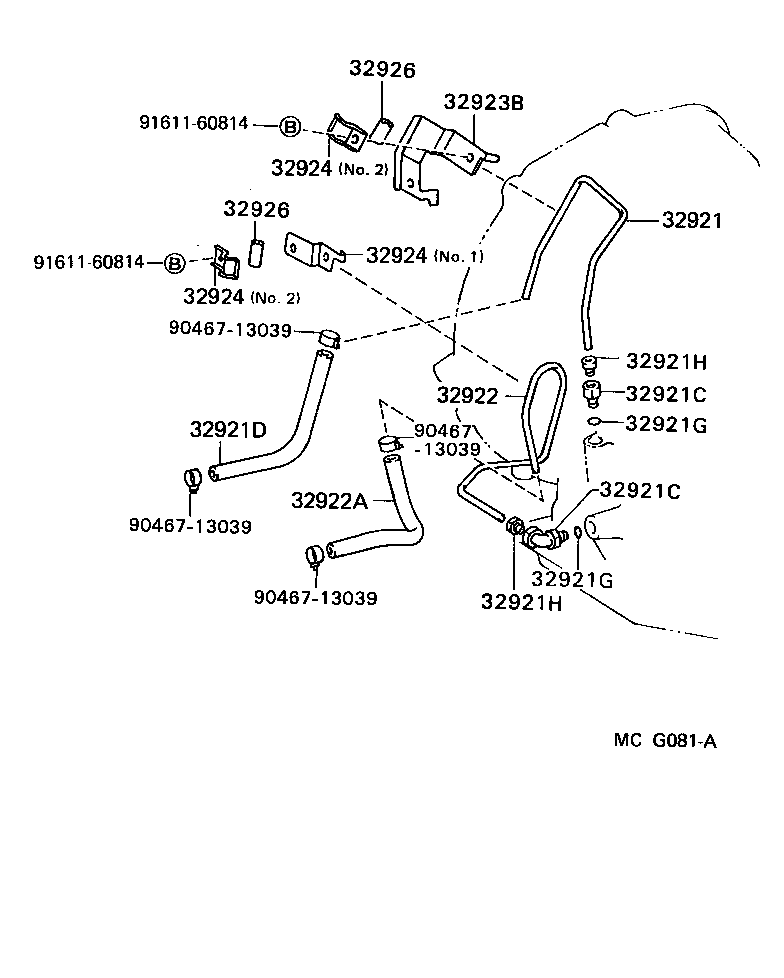

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921H 32921H 32922 32922A 32923B 32924 32924 32924 32926 32926 9046713039 9046713039 9046713039 9046713039 9161160814 9161160814
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-16061

EL31..3FC

 1
32921-16062

EL31..3FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

EL31..3FC

OUTLET

 1
90404-14007

EL31..3FC

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

EL31..3FC

OUTLET

 1
90404-14007

EL31..3FC

INLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-16060

EL31..3FC

 1
32941-16030

EL31..3FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

EL31..3FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

EL31..3FC

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

EL31..3FC

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

EL31..3FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-16070

EL31..3FC

 1
32922-16071

EL31..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15015

EL31..3FC

 1
90445-15046

EL31..3FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-16031

EL31..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10082

EL31..3FC

 2
32923-16040

EL31..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10082

EL31..3FC

 2
32923-16040

EL31..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
90462-10082

EL31..3FC

 2
32923-16040

EL31..3FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

EL31..3FC

L=25,ID=8

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

EL31..3FC

L=25,ID=8

 2
Common parts
90467-13039
91611-60814
