EL31L-ZGHRSA (1988)
Toyota Tercel
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
(8808-8904)3E..3FC ; (8808-8912)3E..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3E..EL31..3FC..USA AISIN |
1 | ||
| 90917-11024 |
3E..EL31..3FC..USA NIPPONDENSO |
1 | ||
| 90917-11027 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90917-10049 |
3E..EL31 NO.2 |
1 | ||
| 90917-11027 |
3E..EL31 AISIN,NO.1 |
1 | ||
| 90917-11024 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-04007 |
3E..EL31 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-11010 |
3E..EL31 |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-11020 |
3E..EL31 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11080 |
3E..EL31 |
1 | ||
| 25751-11070 |
3E..EL31 NO.1 |
1 | ||
| 25751-11080 |
3E..EL31..USA |
1 | ||
| 25751-11030 |
3E..EL31..TER |
1 | ||
| 25751-11080 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 17342-11080 | ||||
| 25792-11010 | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-06002 | ||||
| 90413-07003 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
(8808-8904)3E..3FC ; (8808-8912)3E..MTM
CALIFORNIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3E..EL31..3FC..USA AISIN |
1 | ||
| 90917-11024 |
3E..EL31..3FC..USA NIPPONDENSO |
1 | ||
| 90917-11027 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90917-10049 |
3E..EL31 NO.2 |
1 | ||
| 90917-11027 |
3E..EL31 AISIN,NO.1 |
1 | ||
| 90917-11024 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-04007 |
3E..EL31 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-11020 |
3E..EL31 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11080 |
3E..EL31 |
1 | ||
| 25751-11070 |
3E..EL31 NO.1 |
1 | ||
| 25751-11080 |
3E..EL31..USA |
1 | ||
| 25751-11030 |
3E..EL31..TER |
1 | ||
| 25751-11080 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 17342-11080 | ||||
| 90339-03002 | ||||
| 90412-06070 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-04006 | ||||
| 90413-06002 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||

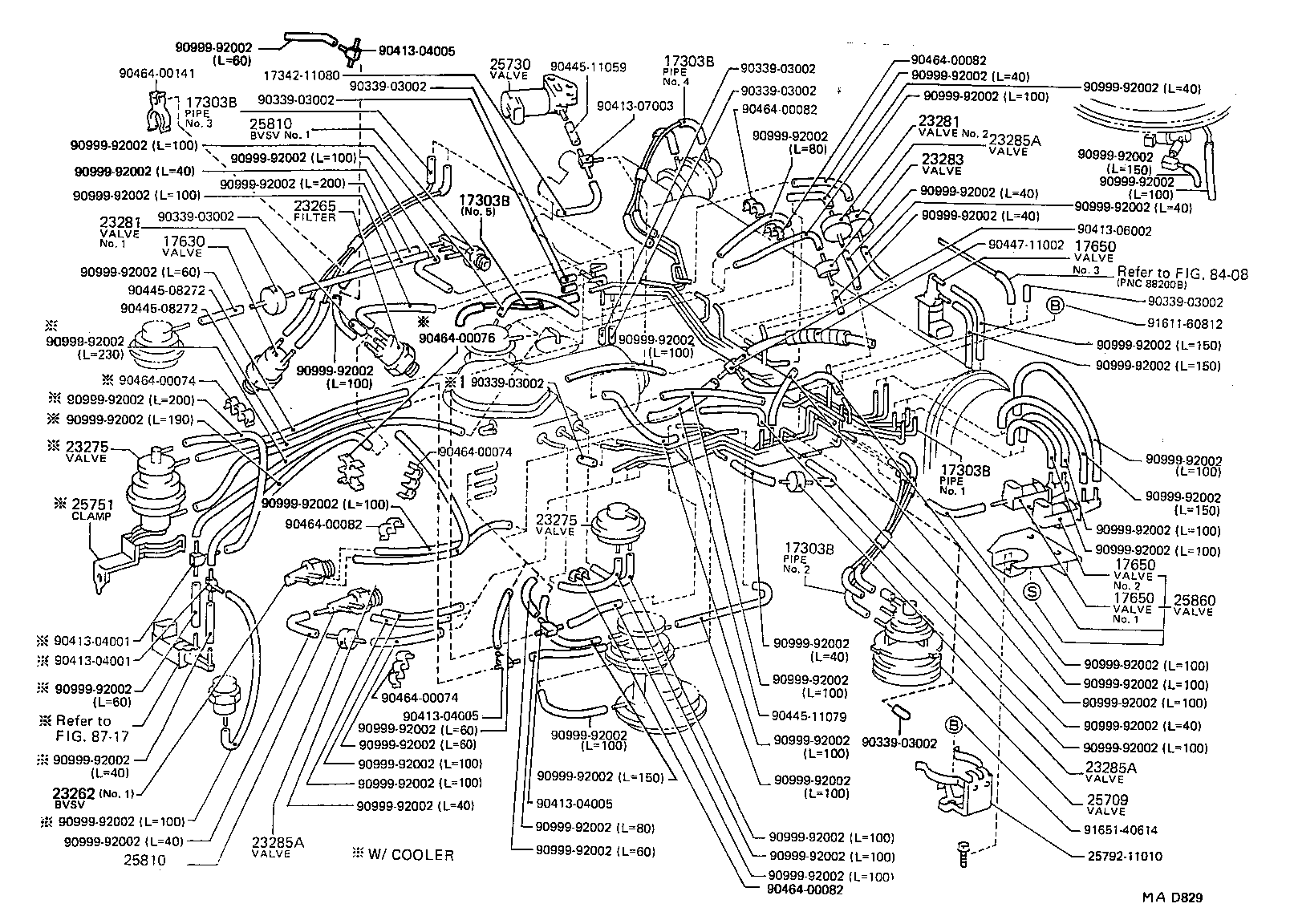

(8904-8912)3E..3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3E..EL31..3FC..USA AISIN |
1 | ||
| 90917-11024 |
3E..EL31..3FC..USA NIPPONDENSO |
1 | ||
| 90917-11027 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90917-10049 |
3E..EL31 NO.2 |
1 | ||
| 90917-11027 |
3E..EL31 AISIN,NO.1 |
1 | ||
| 90917-11024 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-04007 |
3E..EL31 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-11010 |
3E..EL31 |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-11020 |
3E..EL31 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11080 |
3E..EL31 |
1 | ||
| 25751-11070 |
3E..EL31 NO.1 |
1 | ||
| 25751-11080 |
3E..EL31..USA |
1 | ||
| 25751-11030 |
3E..EL31..TER |
1 | ||
| 25751-11080 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 17342-11080 | ||||
| 25792-11010 | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-06002 | ||||
| 90413-07003 | ||||
| 90445-08272 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||

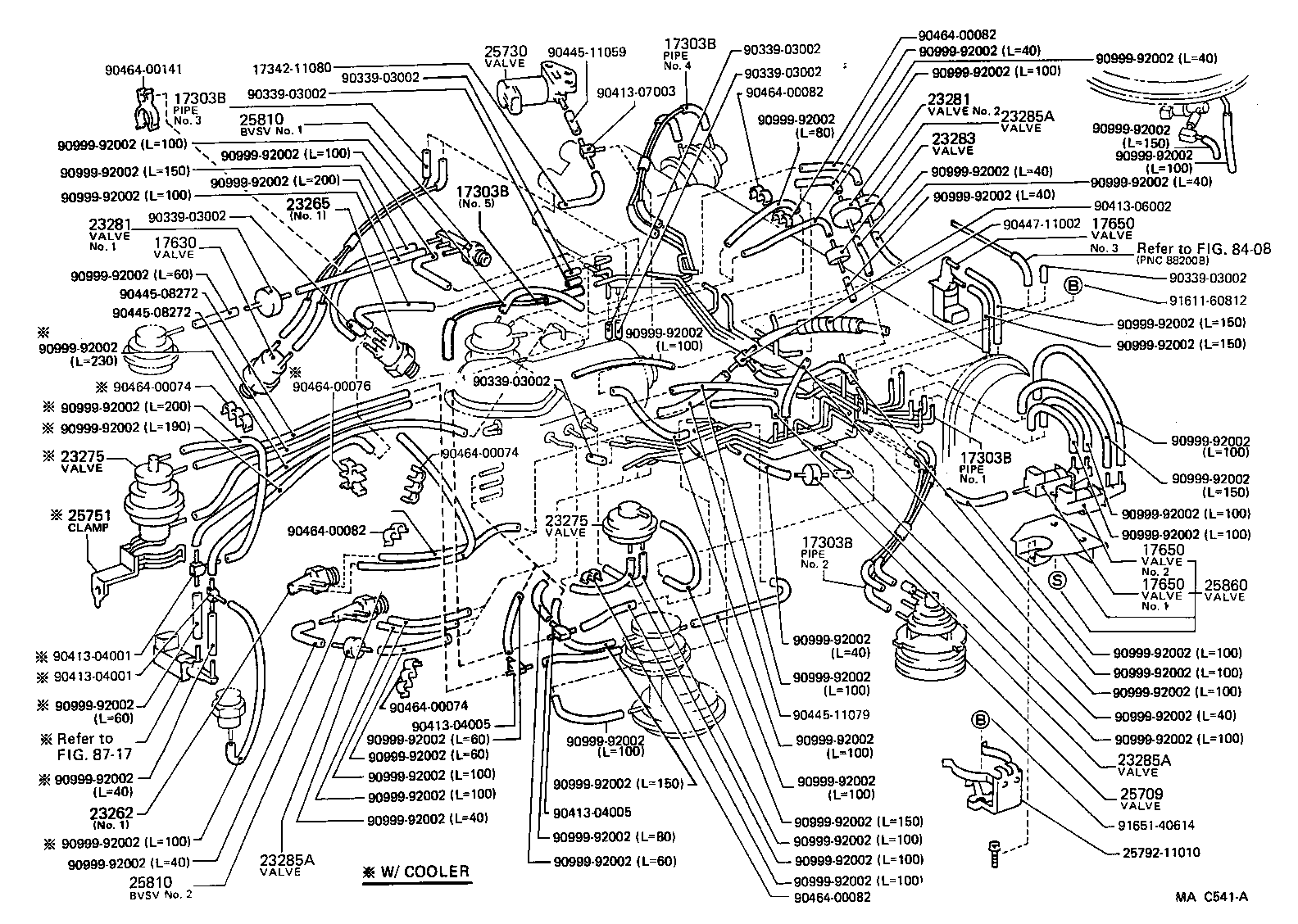

(8904- )3E..3FC
CALIFORNIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-04007 |
3E..EL31 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-11020 |
3E..EL31 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11080 |
3E..EL31 |
1 | ||
| 25751-11070 |
3E..EL31 NO.1 |
1 | ||
| 25751-11080 |
3E..EL31..USA |
1 | ||
| 25751-11030 |
3E..EL31..TER |
1 | ||
| 25751-11080 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 17305-11010 | ||||
| 17342-11080 | ||||
| 90339-03002 | ||||
| 90412-06070 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-04006 | ||||
| 90413-06002 | ||||
| 90445-08272 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||

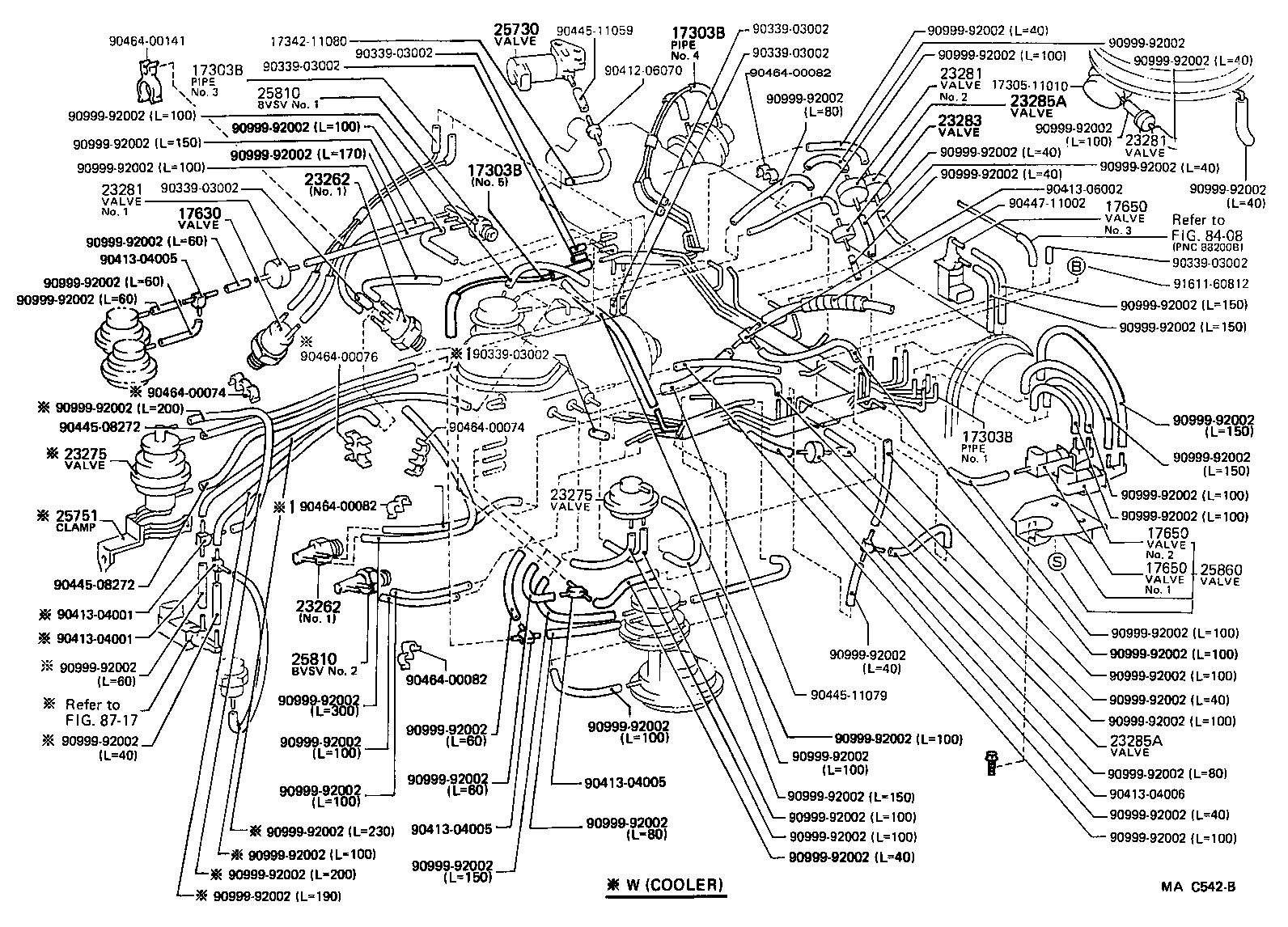

ILLUST NO. 1 OF 2(8912- )3E..3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11190 |
3E..EL31..TER..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC,NO.1 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.5 |
1 | ||
| 17303-11190 |
3E..EL31..CND;3E..EL31..3FC..USA W(POWER STEERING),NO.3 |
1 | ||
| 17303-11350 |
3E..EL31 NO.4 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31 NO.3 |
1 | ||
| 90910-12045 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90910-12048 |
3E..EL31 NO.2,AISIN |
1 | ||
| 90910-12046 |
3E..EL31 NO.2,NIPPONDENSO |
1 | ||
| 90910-12047 |
3E..EL31 NO.1,AISIN |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3E..EL31..3FC..USA AISIN |
1 | ||
| 90917-11024 |
3E..EL31..3FC..USA NIPPONDENSO |
1 | ||
| 90917-11027 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90917-10049 |
3E..EL31 NO.2 |
1 | ||
| 90917-11027 |
3E..EL31 AISIN,NO.1 |
1 | ||
| 90917-11024 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W(AIR CONDITIONER) |
1 | ||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31 NO.2 |
1 | ||
| 23283 - VALVE, VACUUM TRANSMITTING, NO.3 | ||||
| 90925-04007 |
3E..EL31 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
3 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-11010 |
3E..EL31 |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-11020 |
3E..EL31 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11080 |
3E..EL31 |
1 | ||
| 25751-11070 |
3E..EL31 NO.1 |
1 | ||
| 25751-11080 |
3E..EL31..USA |
1 | ||
| 25751-11030 |
3E..EL31..TER |
1 | ||
| 25751-11080 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 17342-11080 | ||||
| 25792-11010 | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-06002 | ||||
| 90413-07003 | ||||
| 90445-08272 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91651-40614 | ||||
| 99464-00074 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||

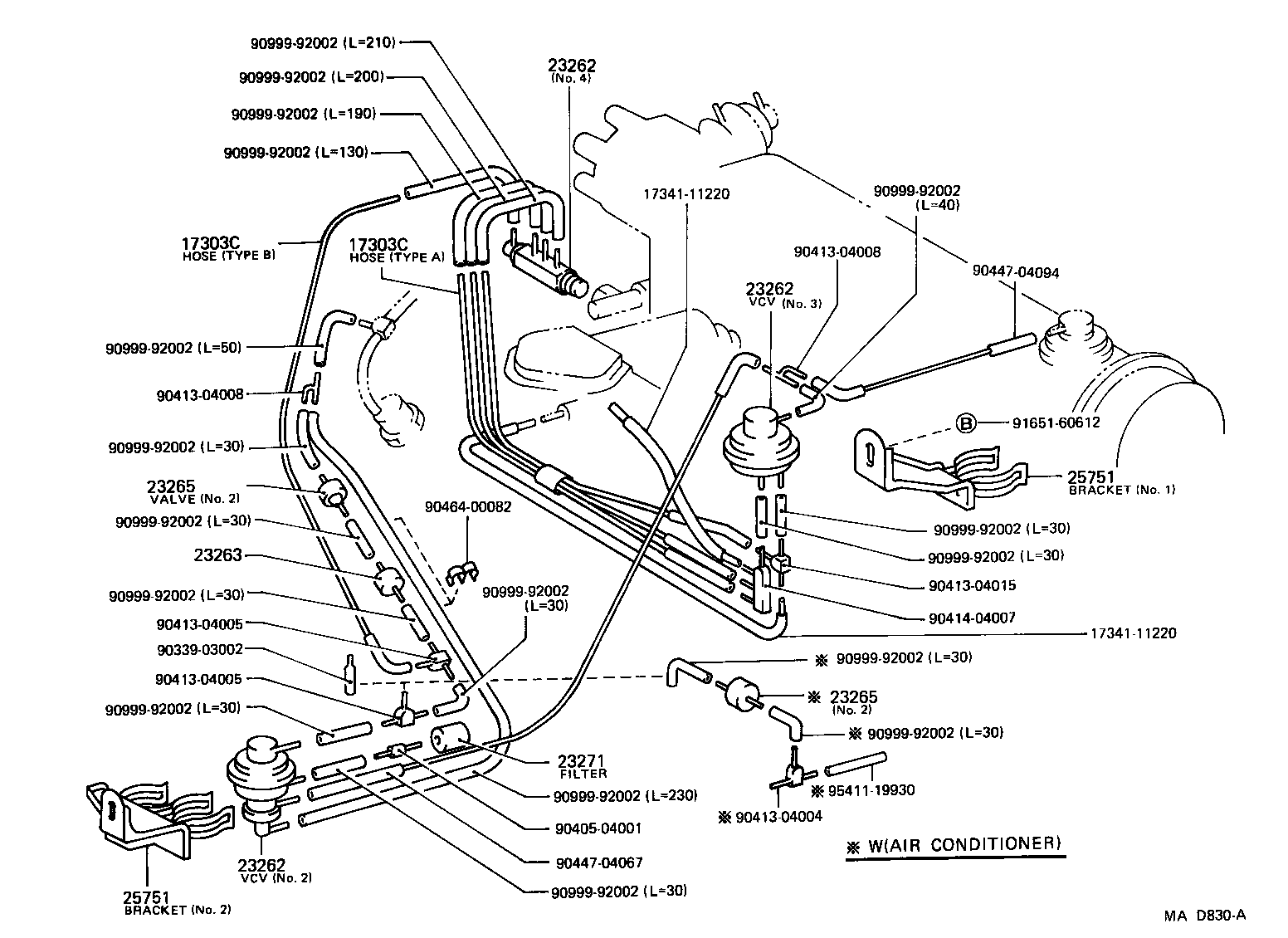

(8912- )3E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17303-11580 |
3E..EL31 W(AIR CONDITIONER),TYPE A |
1 | ||
| 17303-11590 |
3E..EL31 TYPE B |
1 | ||
| 17303-11580 |
3E..EL31 TYPE A |
1 | ||
| 17303-11580 |
3E..EL31..USA W(AIR CONDITIONER),TYPE A |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17303-11580 |
3E..EL31 W(AIR CONDITIONER),TYPE A |
1 | ||
| 17303-11590 |
3E..EL31 TYPE B |
1 | ||
| 17303-11580 |
3E..EL31 TYPE A |
1 | ||
| 17303-11580 |
3E..EL31..USA W(AIR CONDITIONER),TYPE A |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-03189 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-03189 |
3E..EL31 NO.2 |
1 | ||
| 90925-03180 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-05016 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-05051 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-03180 |
3E..EL31 NO.3 |
1 | ||
| 90925-03189 |
3E..EL31..USA W(AIR CONDITIONER),NO.3 |
1 | ||
| 90925-02087 |
3E..EL31 NO.4 |
1 | ||
| 90925-03180 |
3E..EL31 W(AIR CONDITIONER),NO.3 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-04005 |
3E..EL31 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3E..EL31..3FC..USA AISIN |
1 | ||
| 90917-11024 |
3E..EL31..3FC..USA NIPPONDENSO |
1 | ||
| 90917-11027 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90917-10049 |
3E..EL31 NO.2 |
1 | ||
| 90917-11027 |
3E..EL31 AISIN,NO.1 |
1 | ||
| 90917-11024 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
3E..EL31..3FC..USA AISIN |
1 | ||
| 90917-11024 |
3E..EL31..3FC..USA NIPPONDENSO |
1 | ||
| 90917-11027 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 90917-10049 |
3E..EL31 NO.2 |
1 | ||
| 90917-11027 |
3E..EL31 AISIN,NO.1 |
1 | ||
| 90917-11024 |
3E..EL31 NO.1,NIPPONDENSO |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-06007 |
3E..EL31 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11080 |
3E..EL31 |
1 | ||
| 25751-11070 |
3E..EL31 NO.1 |
1 | ||
| 25751-11080 |
3E..EL31..USA |
1 | ||
| 25751-11030 |
3E..EL31..TER |
1 | ||
| 25751-11080 |
3E..EL31 NO.2 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-11080 |
3E..EL31 |
1 | ||
| 25751-11070 |
3E..EL31 NO.1 |
1 | ||
| 25751-11080 |
3E..EL31..USA |
1 | ||
| 25751-11030 |
3E..EL31..TER |
1 | ||
| 25751-11080 |
3E..EL31 NO.2 |
1 | ||
| Common parts | ||||
| 17341-11220 | ||||
| 90339-03002 | ||||
| 90405-04001 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90413-04008 | ||||
| 90413-04015 | ||||
| 90414-04007 | ||||
| 90447-04067 | ||||
| 90447-04094 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 91651-60612 | ||||
| 95411-19930 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
