EL31L-ZGHDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

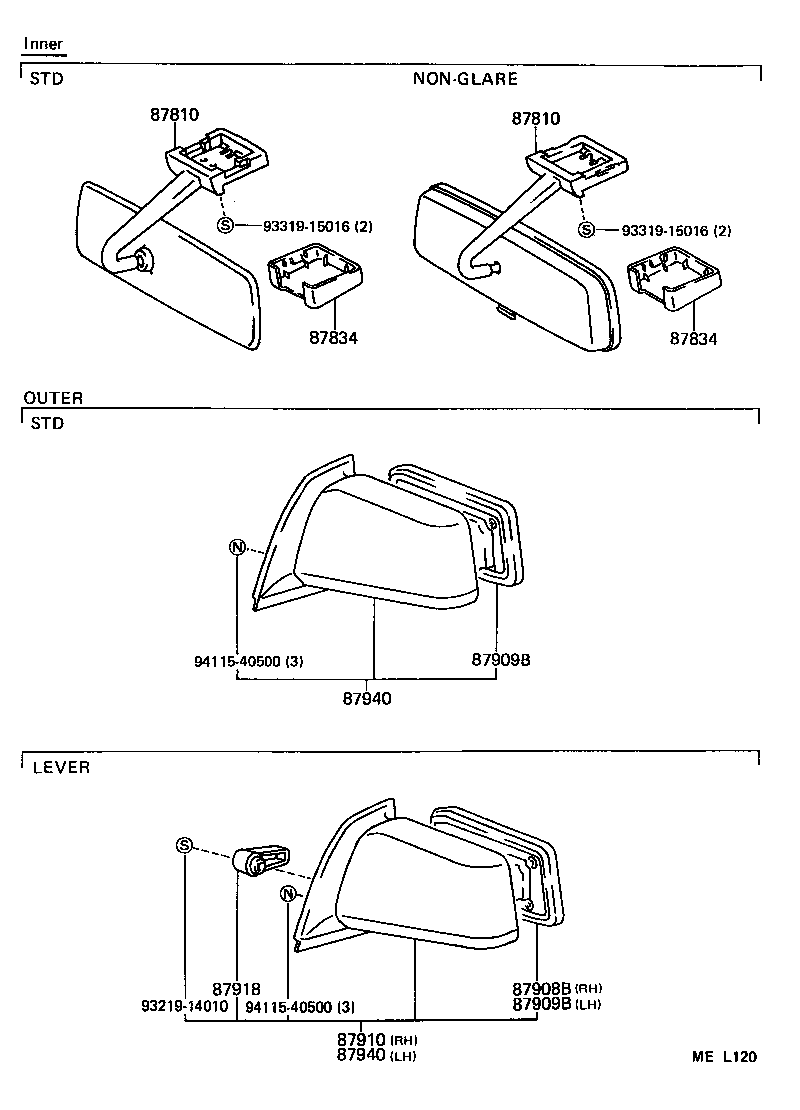

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1602001 |
EL31..DX NEW BLACK,TRIM2# |
1 | ||
| 87810-1602006 |
EL31..DX BROWN,TRIM4# |
1 | ||
| 87810-1602004 |
EL31..DX BLUE,TRIM8# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1602001 |
EL31..DX NEW BLACK,TRIM2# |
1 | ||
| 87810-1602006 |
EL31..DX BROWN,TRIM4# |
1 | ||
| 87810-1602004 |
EL31..DX BLUE,TRIM8# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2008053 |
EL31 SHADOW GRAY,TRIM2# |
1 | ||
| 87834-2008035 |
EL31..DX,STD BEIGE,TRIM4# |
1 | ||
| 87834-2008034 |
EL31..DX,STD DEEP BLUE,TRIM8# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2008053 |
EL31 SHADOW GRAY,TRIM2# |
1 | ||
| 87834-2008035 |
EL31..DX,STD BEIGE,TRIM4# |
1 | ||
| 87834-2008034 |
EL31..DX,STD DEEP BLUE,TRIM8# |
1 | ||
| 87908B - MIRROR SUB-ASSY, RH | ||||
| 87908-16060 |
EL31..DX |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87909-16050 |
EL31..DX |
1 | ||
| 87909-16320 |
EL31 |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87909-16050 |
EL31..DX |
1 | ||
| 87909-16320 |
EL31 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-16290 |
EL31..(2DS,3DS)..DX |
1 | ||
| 87918 - KNOB, CONTROL OUTER MIRROR | ||||
| 87918-16010 |
EL31 |
1 | ||
| 87918-16010 |
EL31..DX |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-16320 |
EL31..2DS,3DS |
1 | ||
| 87940-16330 |
EL31..(2DS,3DS)..DX |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-16320 |
EL31..2DS,3DS |
1 | ||
| 87940-16330 |
EL31..(2DS,3DS)..DX |
1 | ||
| Common parts | ||||
| 93219-14010 | ||||
| 93319-15016 | ||||
| 94115-40500 | ||||
