EL31L-ZGHDSK (1987)
Toyota Tercel

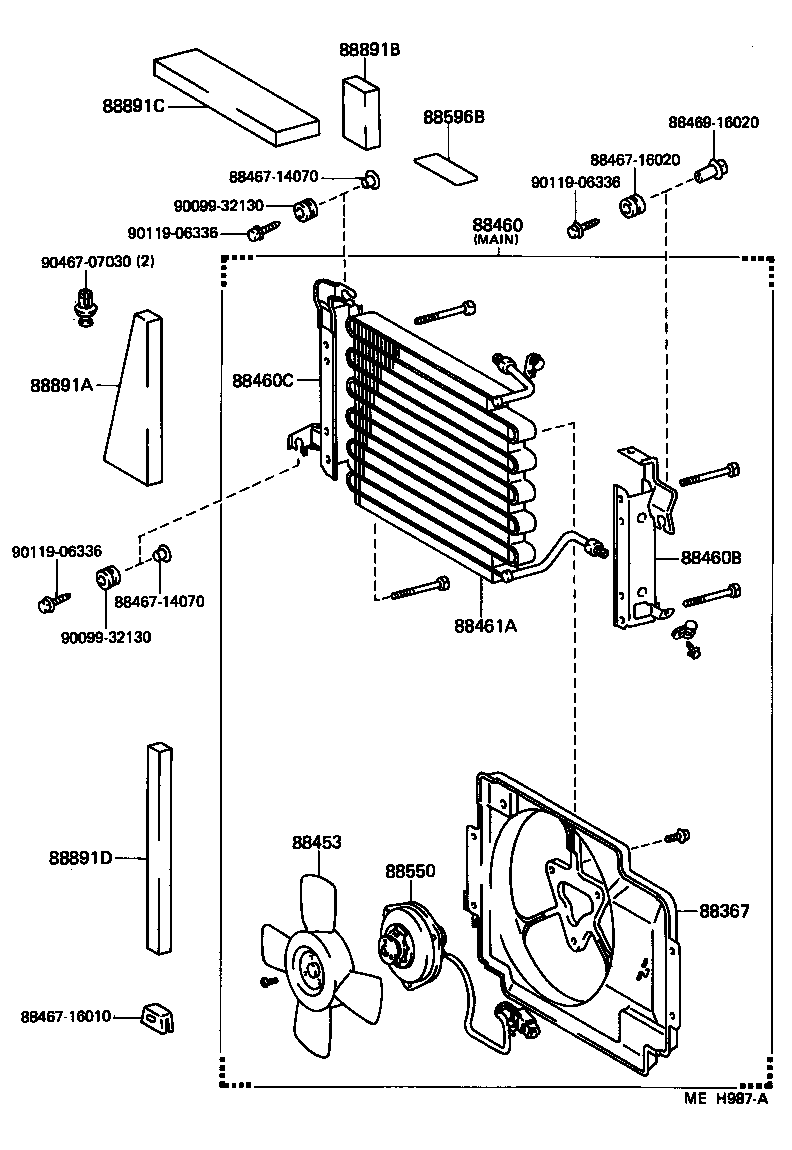

(8608-8805)CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-16080 |
EL31..CND |
1 | ||
| 88454-16080 |
EL31..CND |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10010 |
EL31..CND |
1 | ||
| 88453-10010 |
EL31..CND |
1 | ||
| 88453-12050 |
EL31..CND |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16200 |
EL31..CND |
1 | ||
| 88460-16180 |
EL31..CND MAIN |
1 | ||
| 88460-16180 |
EL31..CND MAIN |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-16140 |
EL31..CND |
1 | ||
| 88463-16140 |
EL31..CND |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-16130 |
EL31..CND |
1 | ||
| 88463-16130 |
EL31..CND |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-16060 |
EL31..CND |
1 | ||
| 88461-16060 |
EL31..CND |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-16090 |
EL31..CND |
1 | ||
| 88550-12120 |
EL31..CND |
1 | ||
| 88550-16090 |
EL31..CND |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
EL31..CND |
1 | ||
| 88596-24010 |
EL31..CND |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-16070 |
EL31..CND |
1 | ||
| 88578-16130 |
EL31..CND |
2 | ||
| 88578-16070 |
EL31..CND |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-16090 |
EL31..CND |
1 | ||
| 88578-16090 |
EL31..CND |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-16100 |
EL31..CND |
1 | ||
| 88578-16100 |
EL31..CND |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-16060 |
EL31..CND |
1 | ||
| 88578-16060 |
EL31..CND |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88467-16010 | ||||
| 88467-16020 | ||||
| 88469-16020 | ||||
| 90099-32130 | ||||
| 90119-06336 | ||||
| 90467-07030 | ||||

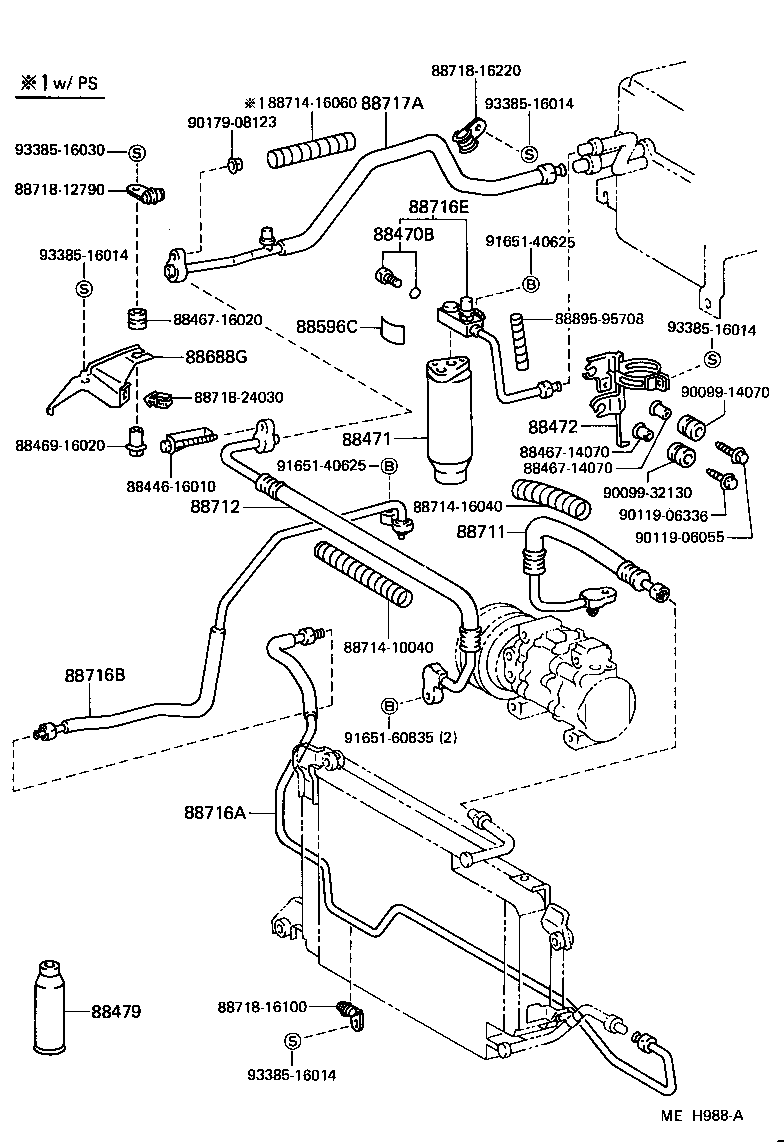

(8608-8805)CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
EL31..CND |
1 | ||
| 88475-12020 |
EL31..CND |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-12020 |
EL31..CND |
1 | ||
| 88471-10030 |
EL31..CND |
1 | ||
| 88471-10030 |
EL31..CND |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16060 |
EL31..CND |
1 | ||
| 88472-16060 |
EL31..CND |
1 | ||
| 88472-16090 |
EL31..CND |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
EL31..CND 400G |
2 | ||
| 90986-02001 |
EL31..CND 400G |
2 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
EL31..CND |
1 | ||
| 88723-12010 |
EL31..CND |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-16140 |
EL31..CND |
1 | ||
| 88688-16140 |
EL31..CND |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16080 |
EL31..CND |
1 | ||
| 88711-16080 |
EL31..CND |
1 | ||
| 88711-16100 |
EL31..CND |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16120 |
EL31..CND |
1 | ||
| 88712-16120 |
EL31..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16300 |
EL31..CND |
1 | ||
| 88716-16300 |
EL31..CND |
1 | ||
| 88716-16400 |
EL31..CND |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16270 |
EL31..CND |
1 | ||
| 88706-16040 |
EL31..CND |
1 | ||
| 88716-16270 |
EL31..CND |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16370 |
EL31..CND |
1 | ||
| 88716-16380 |
EL31..CND |
1 | ||
| 88716-16370 |
EL31..CND |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16070 |
EL31..CND |
1 | ||
| 88717-16070 |
EL31..CND |
1 | ||
| Common parts | ||||
| 88446-16010 | ||||
| 88467-14070 | ||||
| 88467-16020 | ||||
| 88469-16020 | ||||
| 88714-10040 | ||||
| 88714-16040 | ||||
| 88714-16060 | ||||
| 88718-12790 | ||||
| 88718-16100 | ||||
| 88718-16220 | ||||
| 88718-24030 | ||||
| 88895-95708 | ||||
| 90099-14070 | ||||
| 90099-32130 | ||||
| 90119-06055 | ||||
| 90119-06336 | ||||
| 90179-08123 | ||||
| 91651-40625 | ||||
| 91651-60835 | ||||
| 93385-16014 | ||||
| 93385-16030 | ||||

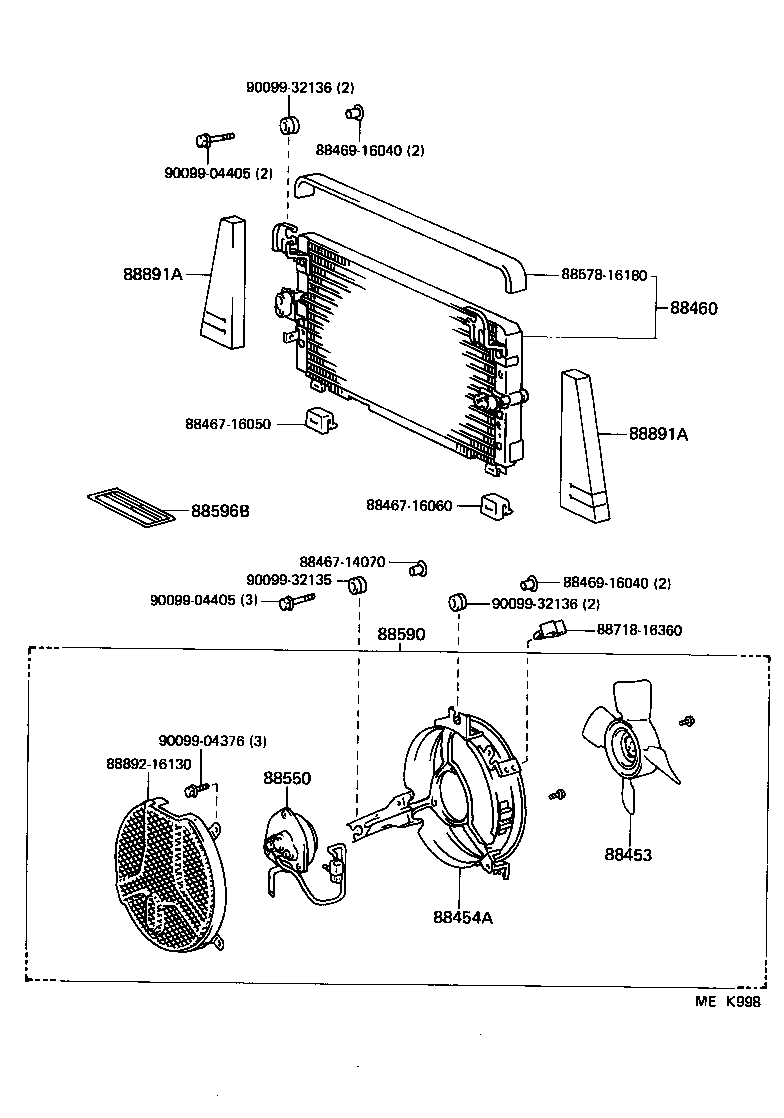

(8805- )CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-10010 |
EL31..CND |
1 | ||
| 88453-10010 |
EL31..CND |
1 | ||
| 88453-12050 |
EL31..CND |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16090 |
EL31..CND |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16200 |
EL31..CND |
1 | ||
| 88460-16180 |
EL31..CND MAIN |
1 | ||
| 88460-16180 |
EL31..CND MAIN |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-16090 |
EL31..CND |
1 | ||
| 88550-12120 |
EL31..CND |
1 | ||
| 88550-16090 |
EL31..CND |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16020 |
EL31..CND |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
EL31..CND |
1 | ||
| 88596-24010 |
EL31..CND |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-16070 |
EL31..CND |
1 | ||
| 88578-16130 |
EL31..CND |
2 | ||
| 88578-16070 |
EL31..CND |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-16070 |
EL31..CND |
1 | ||
| 88578-16130 |
EL31..CND |
2 | ||
| 88578-16070 |
EL31..CND |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88467-16050 | ||||
| 88467-16060 | ||||
| 88469-16040 | ||||
| 88578-16180 | ||||
| 88718-16360 | ||||
| 88892-16130 | ||||
| 90099-04376 | ||||
| 90099-04405 | ||||
| 90099-32135 | ||||
| 90099-32136 | ||||

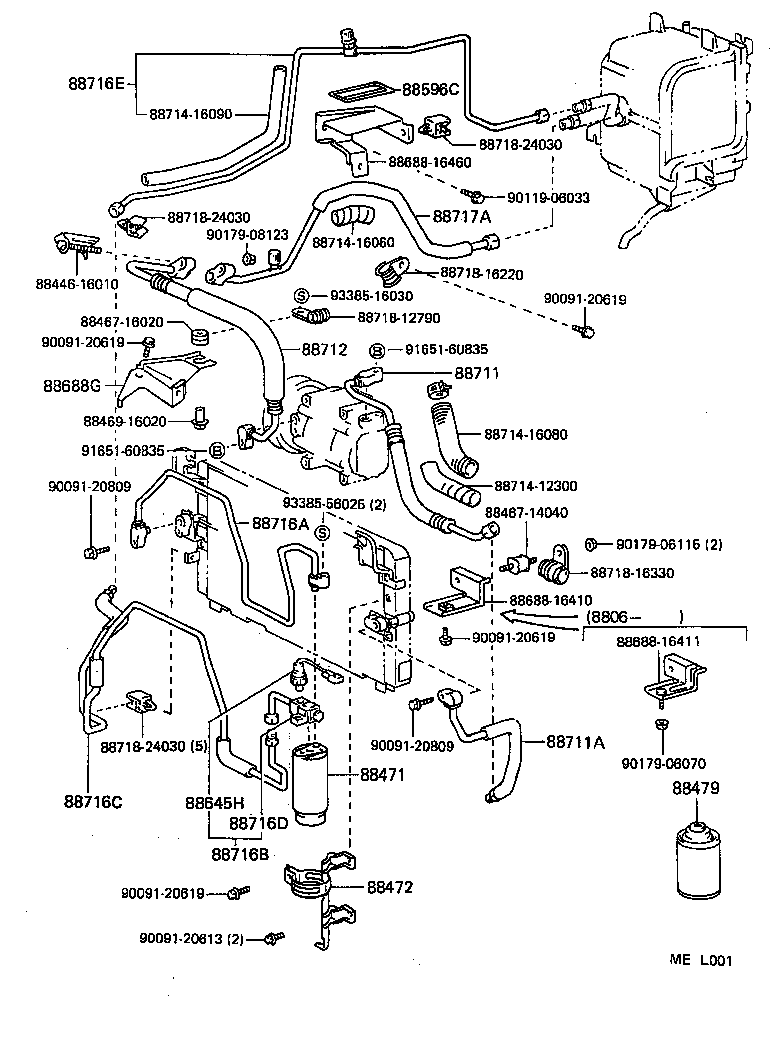

(8805- )CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-12020 |
EL31..CND |
1 | ||
| 88471-10030 |
EL31..CND |
1 | ||
| 88471-10030 |
EL31..CND |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16060 |
EL31..CND |
1 | ||
| 88472-16060 |
EL31..CND |
1 | ||
| 88472-16090 |
EL31..CND |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
EL31..CND 400G |
2 | ||
| 90986-02001 |
EL31..CND 400G |
2 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
EL31..CND |
1 | ||
| 88723-12010 |
EL31..CND |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32020 |
EL31..CND |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-16140 |
EL31..CND |
1 | ||
| 88688-16140 |
EL31..CND |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16080 |
EL31..CND |
1 | ||
| 88711-16080 |
EL31..CND |
1 | ||
| 88711-16100 |
EL31..CND |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88715-16020 |
EL31..CND |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16120 |
EL31..CND |
1 | ||
| 88712-16120 |
EL31..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16300 |
EL31..CND |
1 | ||
| 88716-16300 |
EL31..CND |
1 | ||
| 88716-16400 |
EL31..CND |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16270 |
EL31..CND |
1 | ||
| 88706-16040 |
EL31..CND |
1 | ||
| 88716-16270 |
EL31..CND |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-16390 |
EL31..CND |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-16490 |
EL31..CND |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16370 |
EL31..CND |
1 | ||
| 88716-16380 |
EL31..CND |
1 | ||
| 88716-16370 |
EL31..CND |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16070 |
EL31..CND |
1 | ||
| 88717-16070 |
EL31..CND |
1 | ||
| Common parts | ||||
| 88446-16010 | ||||
| 88467-14040 | ||||
| 88467-16020 | ||||
| 88469-16020 | ||||
| 88688-16410 | ||||
| 88688-16411 | ||||
| 88688-16460 | ||||
| 88714-12300 | ||||
| 88714-16060 | ||||
| 88714-16080 | ||||
| 88714-16090 | ||||
| 88718-12790 | ||||
| 88718-16220 | ||||
| 88718-16330 | ||||
| 88718-24030 | ||||
| 90091-20613 | ||||
| 90091-20619 | ||||
| 90091-20809 | ||||
| 90119-06033 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91651-60835 | ||||
| 93385-16030 | ||||
| 93385-56025 | ||||
