EL31L-ZGHDSA (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

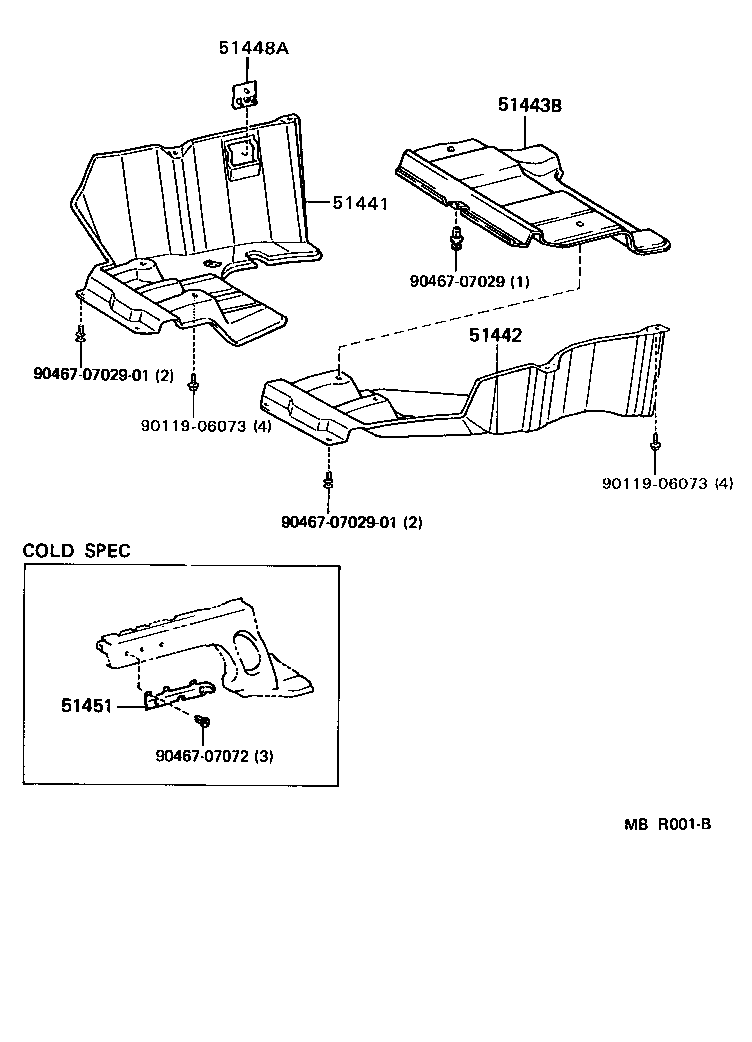

Click highlighted areas on diagram

diagram 51441 51442 51443B 51448A 51451 9011906073 9011906073 9046707029 904670702901 904670702901 9046707072
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-16030

EL31

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-16030

EL31..3FC

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-16020

EL31..TER

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

EL31

 1
51451 - COVER, ENGINE UNDER, NO.4 RH
51451-16010

EL31..USA..CBR

 1
Common parts
90119-06073
90467-07029
90467-0702901
90467-07072
