EL31L-ZGHDSA (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

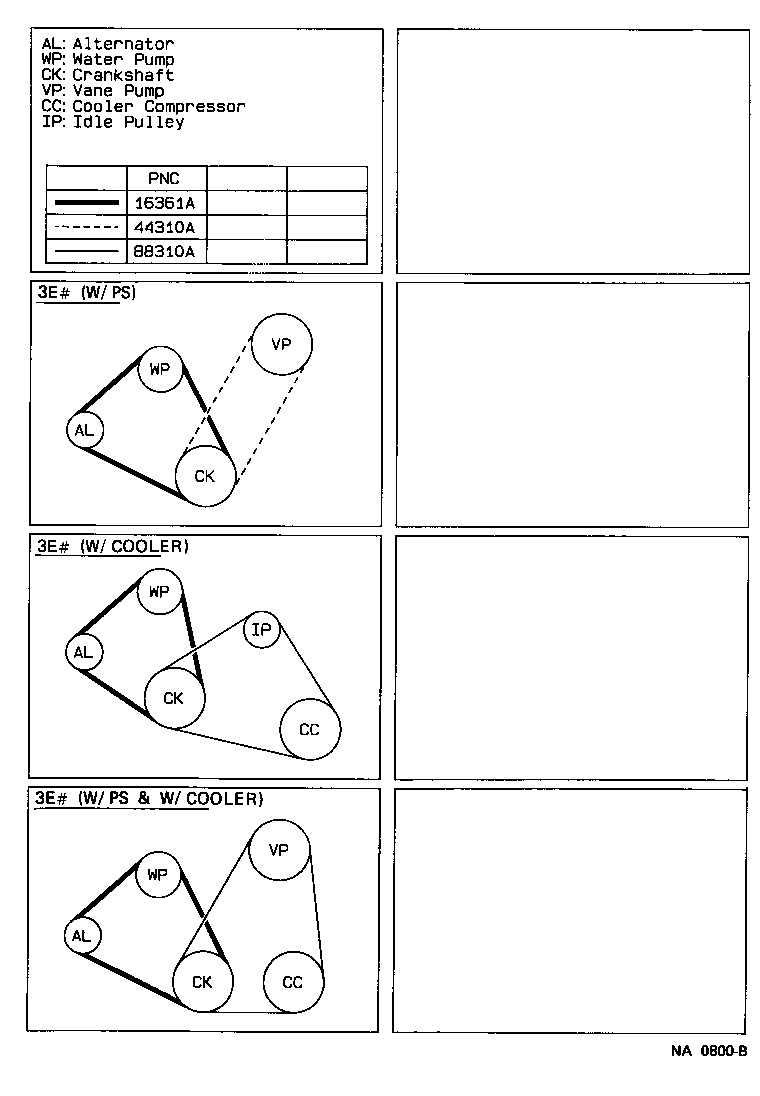

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02135

3E#..EL31

 1
44310A - BELT, V(FOR VANE PUMP)
99365-00930

EL31..TER..CBR

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-50910

EL31..TER

L=910

 1
99365-51110

EL31..TER

W(POWER STEERING)

 1
