8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EL31L-ZGHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988

Engine 3E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8608-8805)USA

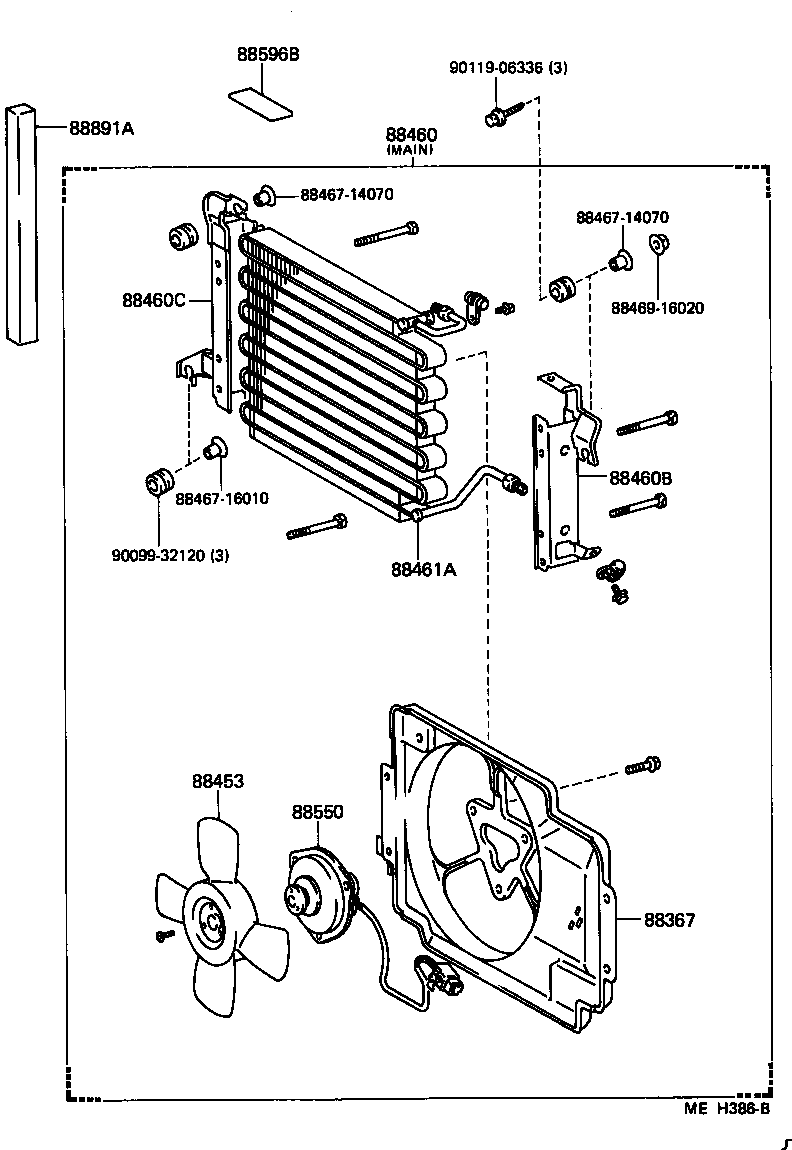

Click highlighted areas on diagram

Part #	Description	Period	Qty
88367 - SHROUD, COOLER BLOWER FAN
88454-16080	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88454-16080	EL31..TER..USA	01/1987 - 05/1988	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-10010	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88453-12050	EL31..TER..USA	05/1988 - 08/1988	1
88453-10010	EL31..TER..USA	01/1987 - 05/1988	1
88460 - CONDENSER ASSY, COOLER
88460-16190	EL31..TER..USA SUB	08/1986 - 05/1988	1
88460-16140	EL31..(3FC,5F)..USA MAIN	08/1986 - 01/1987	1
88460-16140	EL31..TER..USA MAIN	01/1987 - 05/1988	1
88460-16200	EL31..TER..USA	05/1988 - 08/1988	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-16140	EL31..(3FC,5F)..USA	08/1986 - 08/1987	1
88463-16140	EL31..TER..USA	08/1987 - 05/1988	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-16130	EL31..TER..USA	01/1987 - 05/1988	1
88463-16130	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88461A - CORE, COOLER CONDENSER
88461-16060	EL31..TER..USA	01/1987 - 05/1988	1
88461-16060	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-16090	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88550-16090	EL31..TER..USA	01/1987 - 05/1988	1
88550-12120	EL31..TER..USA	05/1988 - 08/1988	1
88596B - PLATE, CAUTION, NO.1
88596-24010	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88596-24010	EL31..TER..USA	01/1987 - 08/1988	1
88891A - PACKING A (FOR COOLER)
88578-16130	EL31..TER..USA LH	05/1988 - 08/1988	1
88578-16060	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88578-16170	EL31..TER..USA RH	05/1988 - 08/1988	1
88578-16060	EL31..TER..USA	01/1987 - 05/1988	1
Common parts
88467-14070
88467-16010
88469-16020
90099-32120
90119-06336

(8608-8805)USA

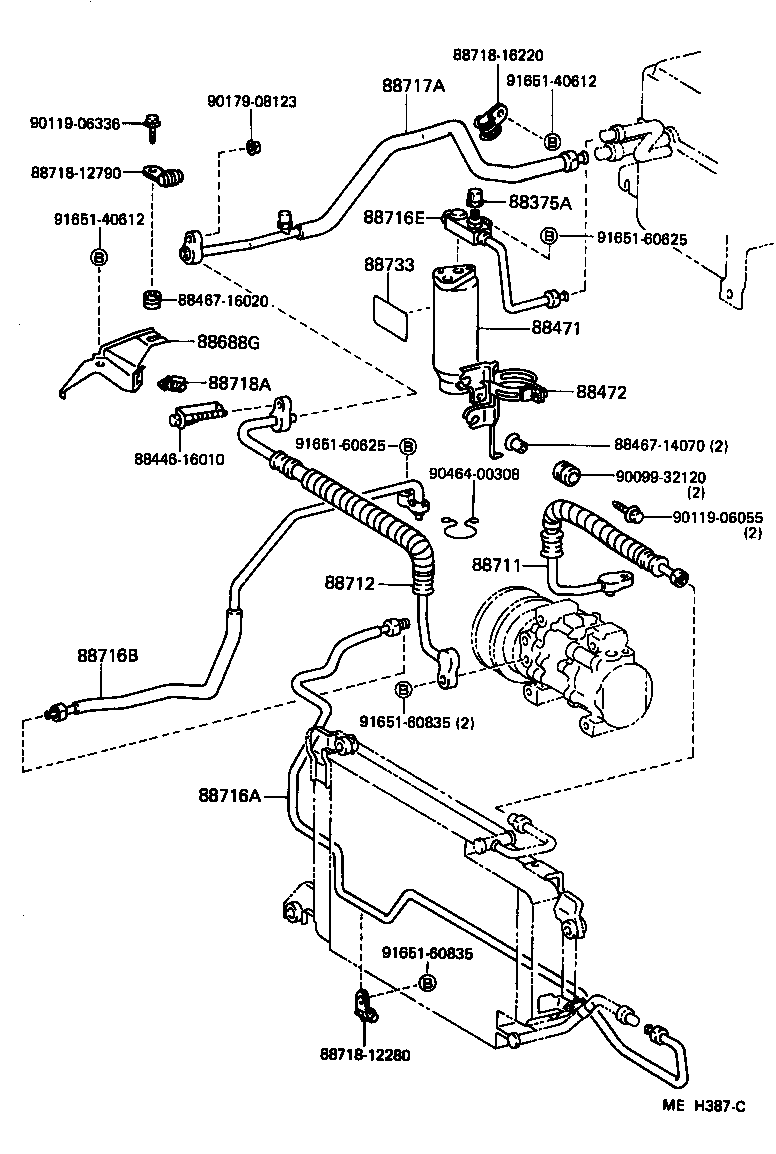

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270	EL31..USA	01/1987 - 03/1987	1
88375-30270	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88375-20010	EL31..TER..USA	03/1987 - 08/1988	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-10030	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88471-12020	EL31..TER..USA	05/1988 - 08/1988	1
88471-10030	EL31..TER..USA	01/1987 - 05/1988	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16060	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88472-16090	EL31..TER..USA	05/1988 - 08/1988	1
88472-16060	EL31..TER..USA	01/1987 - 05/1988	1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-16140	EL31..TER..USA	01/1987 - 08/1988	1
88688-16140	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16050	EL31..TER..USA	01/1987 - 05/1988	1
88711-16100	EL31..TER..USA	05/1988 - 08/1988	1
88711-16050	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16090	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88712-16090	EL31..TER..USA	01/1987 - 08/1988	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16410	EL31..TER..USA W/SUB CONDENSER	08/1986 - 05/1988	1
88716-16300	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88716-16300	EL31..TER..USA	01/1987 - 05/1988	1
88716-16400	EL31..TER..USA	05/1988 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16270	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88716-16270	EL31..USA	01/1987 - 03/1987	1
88716-16270	EL31..TER..USA	03/1987 - 05/1988	1
88706-16040	EL31..TER..USA	05/1988 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16261	EL31..TER..USA	01/1987 - 05/1988	1
88716-16260	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88716-16380	EL31..TER..USA	05/1988 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16070	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88717-16070	EL31..TER..USA	01/1987 - 08/1988	1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-24030	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88718-24030	EL31..TER..USA	01/1987 - 08/1988	1
88733 - LABEL, COOLER SERVICE INFORMATION
88733-16010	EL31..TER..USA	05/1987 - 05/1988	1
Common parts
88446-16010
88467-14070
88467-16020
88718-12280
88718-12790
88718-16220
90099-32120
90119-06055
90119-06336
90179-08123
90464-00308
91651-40612
91651-60625
91651-60835

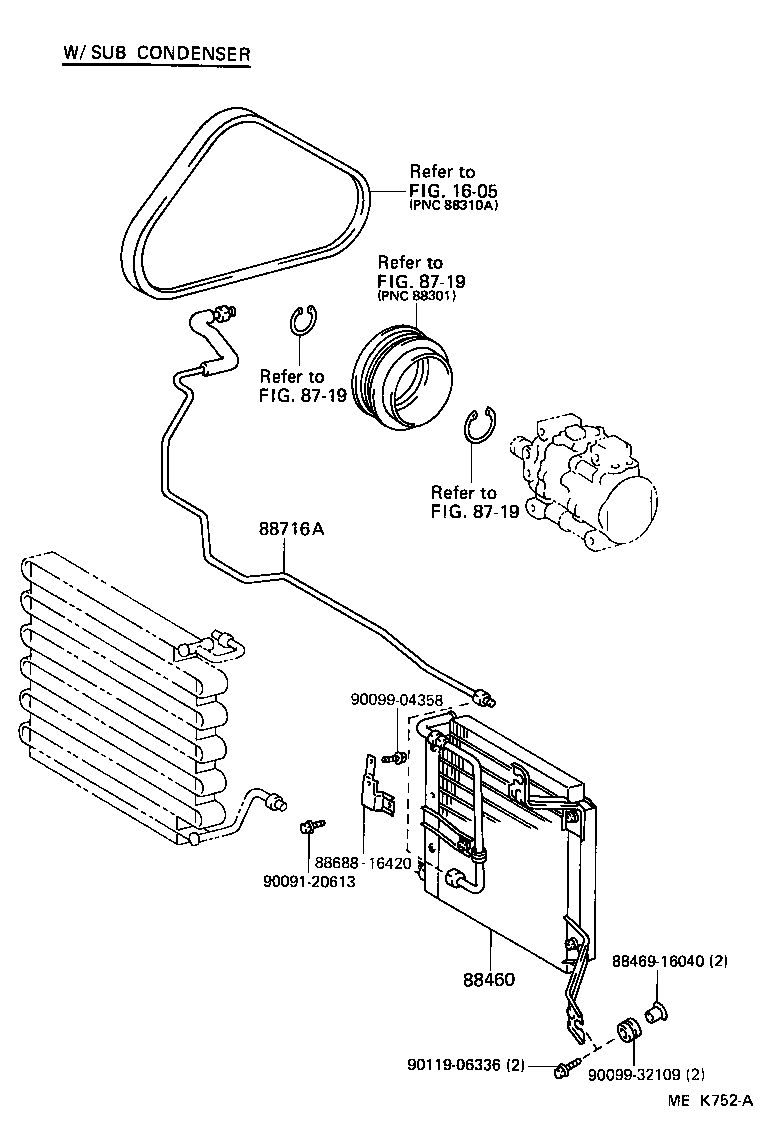

(8608-8805)USA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-16190	EL31..TER..USA SUB	08/1986 - 05/1988	1
88460-16140	EL31..(3FC,5F)..USA MAIN	08/1986 - 01/1987	1
88460-16140	EL31..TER..USA MAIN	01/1987 - 05/1988	1
88460-16200	EL31..TER..USA	05/1988 - 08/1988	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16410	EL31..TER..USA W/SUB CONDENSER	08/1986 - 05/1988	1
88716-16300	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88716-16300	EL31..TER..USA	01/1987 - 05/1988	1
88716-16400	EL31..TER..USA	05/1988 - 08/1988	1
Common parts
88469-16040
88688-16420
90091-20613
90099-04358
90099-32109
90119-06336
Linked diagrams
1605
8719

(8805- )USA

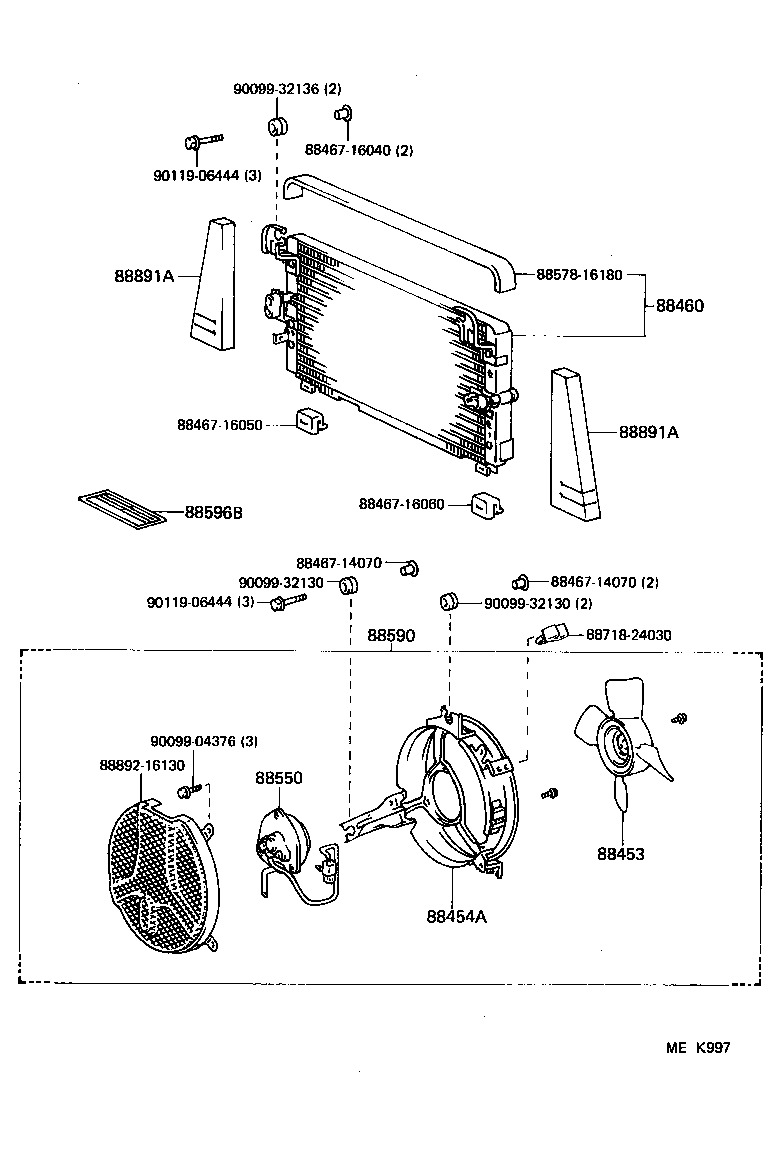

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-10010	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88453-12050	EL31..TER..USA	05/1988 - 08/1988	1
88453-10010	EL31..TER..USA	01/1987 - 05/1988	1
88454A - SHROUD, FAN
88454-16090	EL31..TER..USA	05/1988 - 08/1988	1
88460 - CONDENSER ASSY, COOLER
88460-16190	EL31..TER..USA SUB	08/1986 - 05/1988	1
88460-16140	EL31..(3FC,5F)..USA MAIN	08/1986 - 01/1987	1
88460-16140	EL31..TER..USA MAIN	01/1987 - 05/1988	1
88460-16200	EL31..TER..USA	05/1988 - 08/1988	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-16090	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88550-16090	EL31..TER..USA	01/1987 - 05/1988	1
88550-12120	EL31..TER..USA	05/1988 - 08/1988	1
88590 - BLOWER ASSY, W/SHROUD
88590-16020	EL31..TER..USA	05/1988 - 08/1988	1
88596B - PLATE, CAUTION, NO.1
88596-24010	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88596-24010	EL31..TER..USA	01/1987 - 08/1988	1
88891A - PACKING A (FOR COOLER)
88578-16130	EL31..TER..USA LH	05/1988 - 08/1988	1
88578-16060	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88578-16170	EL31..TER..USA RH	05/1988 - 08/1988	1
88578-16060	EL31..TER..USA	01/1987 - 05/1988	1
88891A - PACKING A (FOR COOLER)
88578-16130	EL31..TER..USA LH	05/1988 - 08/1988	1
88578-16060	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88578-16170	EL31..TER..USA RH	05/1988 - 08/1988	1
88578-16060	EL31..TER..USA	01/1987 - 05/1988	1
Common parts
88467-14070
88467-16040
88467-16050
88467-16060
88578-16180
88718-24030
88892-16130
90099-04376
90099-32130
90099-32136
90119-06444

(8805- )USA

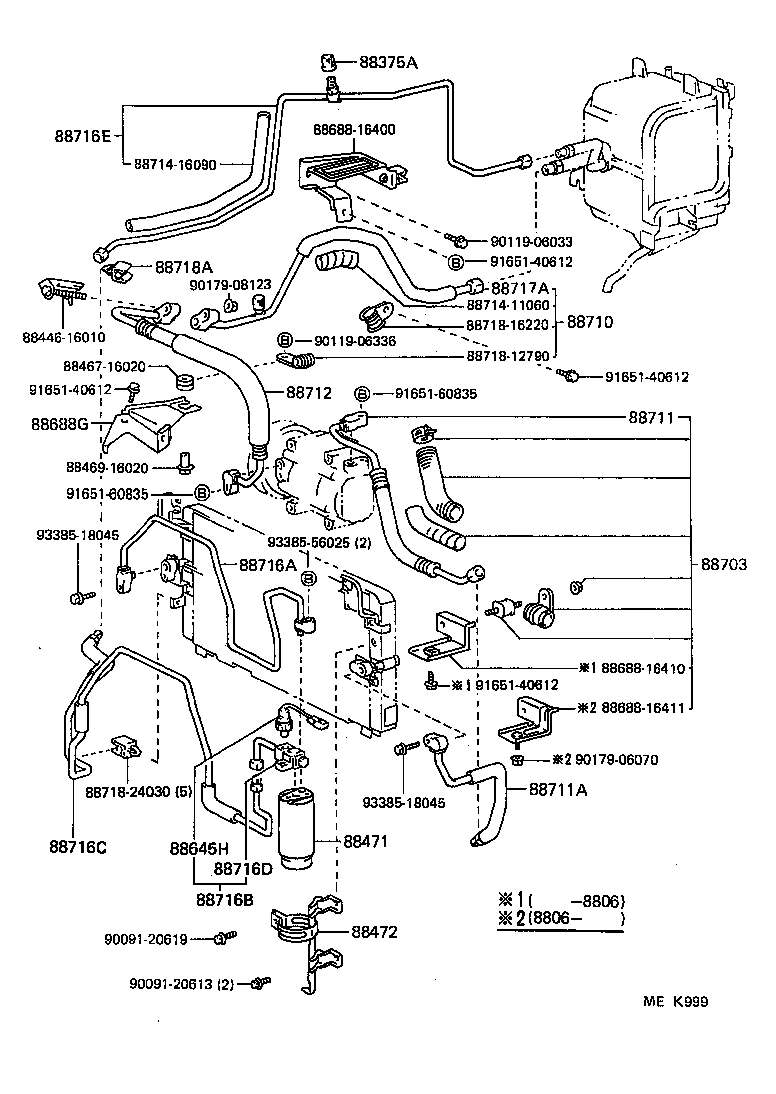

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270	EL31..USA	01/1987 - 03/1987	1
88375-30270	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88375-20010	EL31..TER..USA	03/1987 - 08/1988	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-10030	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88471-12020	EL31..TER..USA	05/1988 - 08/1988	1
88471-10030	EL31..TER..USA	01/1987 - 05/1988	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16060	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88472-16090	EL31..TER..USA	05/1988 - 08/1988	1
88472-16060	EL31..TER..USA	01/1987 - 05/1988	1
88645H - SWITCH, PRESSURE NO.1
88645-32020	EL31..TER..USA	05/1988 - 08/1988	1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-16140	EL31..TER..USA	01/1987 - 08/1988	1
88688-16140	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-16011	EL31..TER..USA	06/1988 - 08/1988	1
88703-16010	EL31..TER..USA	05/1988 - 06/1988	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-16060	EL31..TER..USA	05/1988 - 08/1988	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16050	EL31..TER..USA	01/1987 - 05/1988	1
88711-16100	EL31..TER..USA	05/1988 - 08/1988	1
88711-16050	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88715-16020	EL31..TER..USA	05/1988 - 08/1988	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16090	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88712-16090	EL31..TER..USA	01/1987 - 08/1988	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16410	EL31..TER..USA W/SUB CONDENSER	08/1986 - 05/1988	1
88716-16300	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88716-16300	EL31..TER..USA	01/1987 - 05/1988	1
88716-16400	EL31..TER..USA	05/1988 - 08/1988	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16270	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88716-16270	EL31..USA	01/1987 - 03/1987	1
88716-16270	EL31..TER..USA	03/1987 - 05/1988	1
88706-16040	EL31..TER..USA	05/1988 - 08/1988	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-16390	EL31..TER..USA	05/1988 - 08/1988	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-16490	EL31..TER..USA	05/1988 - 08/1988	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16261	EL31..TER..USA	01/1987 - 05/1988	1
88716-16260	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88716-16380	EL31..TER..USA	05/1988 - 08/1988	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16070	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88717-16070	EL31..TER..USA	01/1987 - 08/1988	1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-24030	EL31..(3FC,5F)..USA	08/1986 - 01/1987	1
88718-24030	EL31..TER..USA	01/1987 - 08/1988	1
Common parts
88446-16010
88467-16020
88469-16020
88688-16400
88688-16410
88688-16411
88714-11060
88714-16090
88718-12790
88718-16220
88718-24030
90091-20613
90091-20619
90119-06033
90119-06336
90179-06070
90179-08123
91651-40612
91651-60835
93385-18045
93385-56025
