EL31L-ZGHDSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

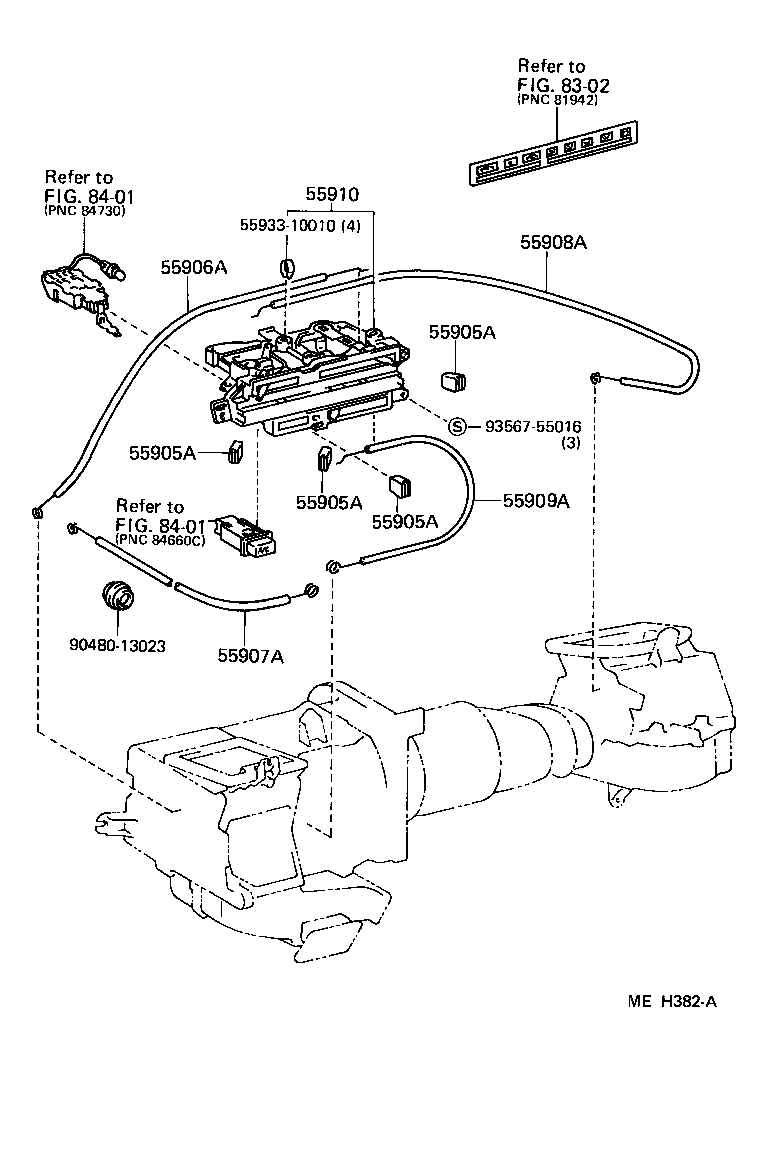

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-16020 |
EL31 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-16020 |
EL31 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-16020 |
EL31 |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-16020 |
EL31 |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16060 |
EL31 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-16110 |
EL31 |
1 | ||
| 55907-16090 |
EL31 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16060 |
EL31 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16050 |
EL31 |
1 | ||
| 55909-16051 |
EL31 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16113 |
EL31 |
1 | ||
| 55910-16110 |
EL31 |
1 | ||
| 55910-16112 |
EL31 |
1 | ||
| Common parts | ||||
| 55933-10010 | ||||
| 90480-13023 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
(8608- )

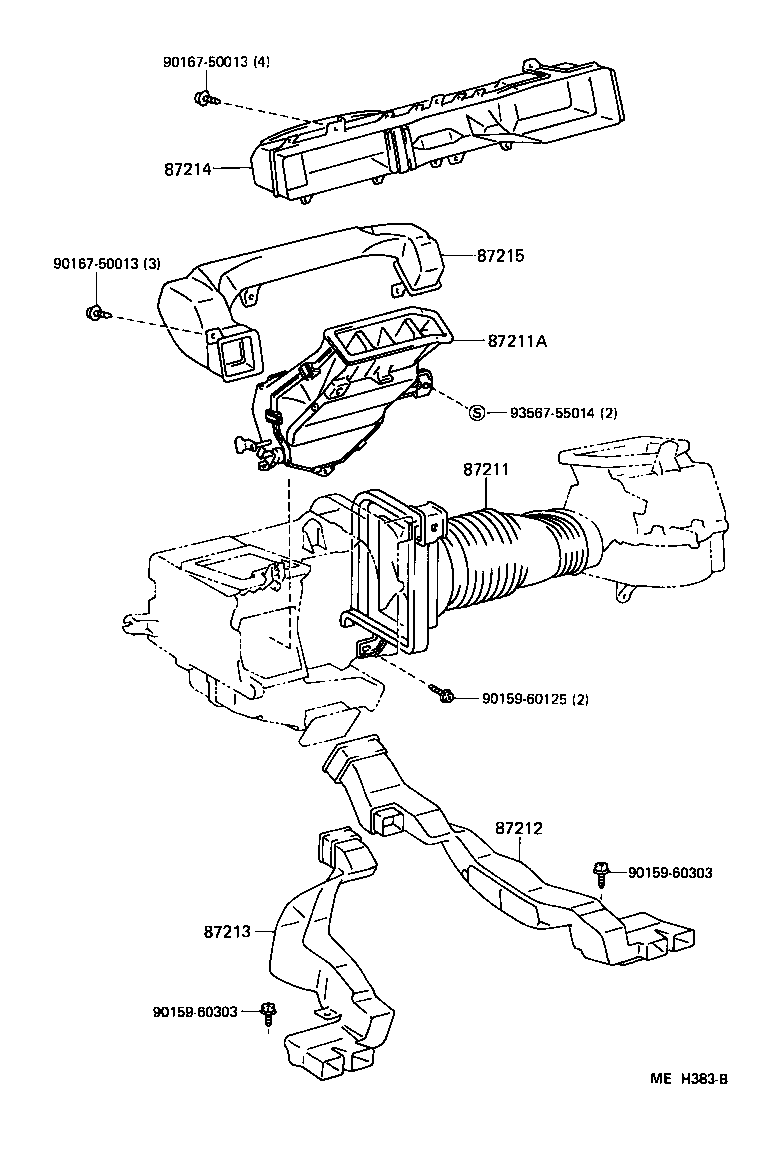

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-16080 |
EL31 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-16101 |
EL31 |
1 | ||
| 87201-16100 |
EL31 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-16040 |
EL31 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-16040 |
EL31 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55086-16080 |
EL31 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55843-16090 |
EL31 |
1 | ||
| Common parts | ||||
| 90159-60125 | ||||
| 90159-60303 | ||||
| 90167-50013 | ||||
| 93567-55014 | ||||
