EL31L-ZGHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3DS,5DS

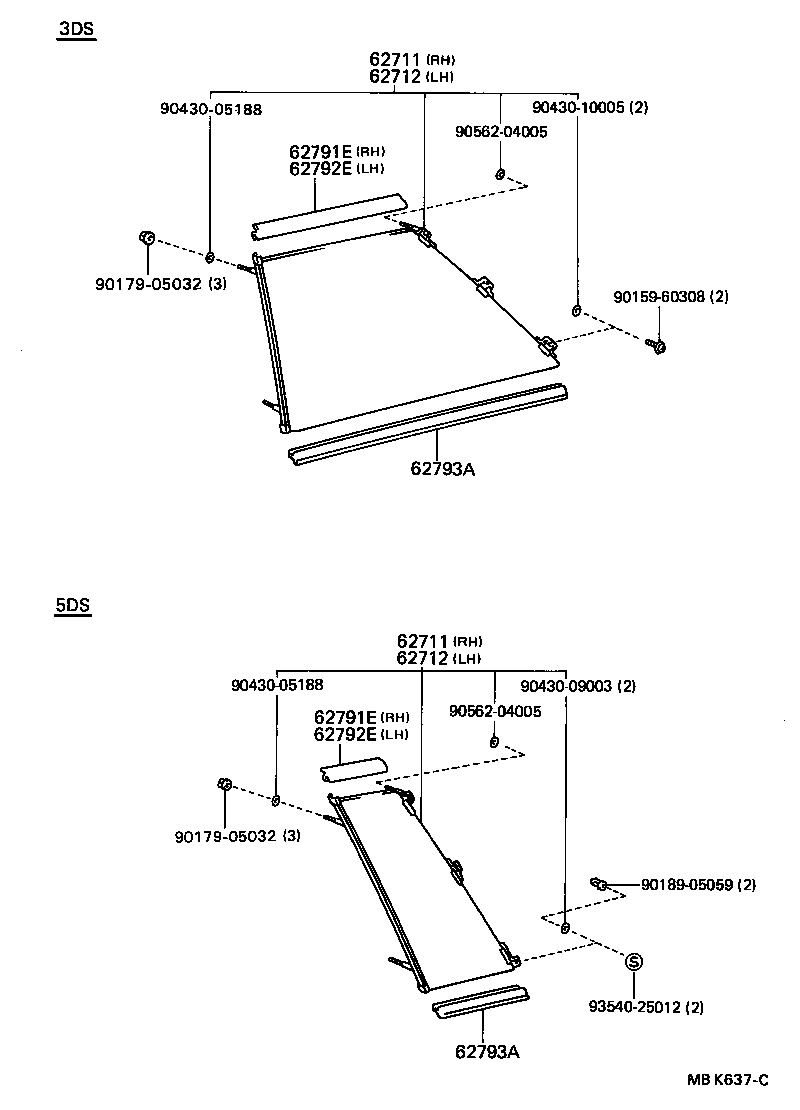

Click highlighted areas on diagram

diagram 62711 62711 62712 62712 62791E 62791E 62792E 62792E 62793A 62793A 9015960308 9017905032 9017905032 9018905059 9043005188 9043005188 9043009003 9043010005 9056204005 9056204005 9354025012
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62710-16160

EL31..3DS..DX

*TT,T=3.5,*TT,T=3.5

 1
62711 - GLASS, QUARTER WINDOW, RH
62710-16160

EL31..3DS..DX

*TT,T=3.5,*TT,T=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62720-16160

EL31..3DS..DX

*TT,T=3.5,*TT,T=3.5

 1
62712 - GLASS, QUARTER WINDOW, LH
62720-16160

EL31..3DS..DX

*TT,T=3.5,*TT,T=3.5

 1
62791E - MOULDING, QUARTER WINDOW, UPPER RH
62791-16010

EL31..3DS

 1
62791E - MOULDING, QUARTER WINDOW, UPPER RH
62791-16010

EL31..3DS

 1
62792E - MOULDING, QUARTER WINDOW, UPPER LH
62791-16010

EL31..3DS

 1
62792E - MOULDING, QUARTER WINDOW, UPPER LH
62791-16010

EL31..3DS

 1
62793A - MOULDING, QUARTER WINDOW, LOWER
62793-16010

EL31..3DS

 2
62793A - MOULDING, QUARTER WINDOW, LOWER
62793-16010

EL31..3DS

 2
Common parts
90159-60308
90179-05032
90189-05059
90430-05188
90430-09003
90430-10005
90562-04005
93540-25012
