EL31L-ZGHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3FC

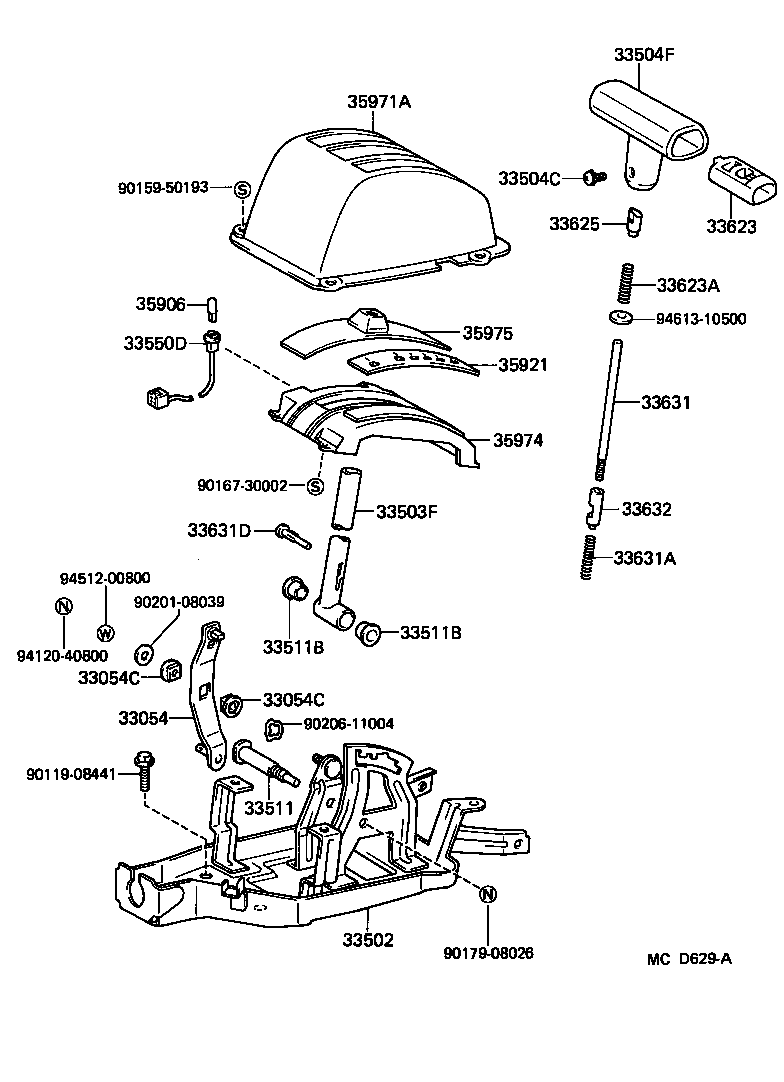

Click highlighted areas on diagram

diagram 33054 33054C 33054C 33502 33503F 33504C 33504F 33511 33511B 33511B 33550D 33623 33623A 33625 33631 33631A 33631D 33632 35906 35921 35971A 35974 35975 9011908441 9015950193 9016730002 9017908026 9020108039 9020611004 9412040800 9451200800 9461310500
Part # Description Qty Price
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33054-16010

EL31..3FC

 1
33054C - BUSH(FOR SHIFT LEVER NO.2)
90386-11009

EL31..3FC

 2
33054C - BUSH(FOR SHIFT LEVER NO.2)
90386-11009

EL31..3FC

 2
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-16120

EL31..3FC

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-16190

EL31..3FC

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40134

EL31..3FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-1604005

EL31..3FC

BEIGE,DARK BEIGE,TRIM4#

 1
33542-1604004

EL31..3FC

BLUE,BLUE,TRIM8#

 1
33542-1604001

EL31..3FC

BLACK,NEW BLACK,TRIM2#

 1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
33511-16040

EL31..3FC

 1
33511B - BUSH (FOR CONTROL SHAFT)
90385-11008

EL31..3FC

 2
33511B - BUSH (FOR CONTROL SHAFT)
90385-11008

EL31..3FC

 2
33550D - BULB, POSITION INDICATOR LAMP
90981-11014

EL31..3FC

14V 1.4W

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1603001

EL31..3FC

BLACK,NEW BLACK,TRIM2#

 1
33623-1603005

EL31..3FC

BEIGE,DARK BEIGE,TRIM4#

 1
33623-1603004

EL31..3FC

BLUE,BLUE,TRIM8#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-09077

EL31..3FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-16030

EL31..3FC

 1
33631 - ROD, DETENT
33631-16030

EL31..3FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07055

EL31..3FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04004

EL31..3FC

 1
33632 - ROD, DETENT, NO.2
33632-16010

EL31..3FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-16030

EL31..3FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-16090

EL31..3FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-1604001

EL31..3FC

BLACK,NEW BLACK,TRIM2#

 1
35971-1604004

EL31..3FC

BLUE,BLUE,TRIM8#

 1
35971-1604005

EL31..3FC

BEIGE,DARK BEIGE,TRIM4#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-1604001

EL31..3FC

NEW BLACK

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-16040

EL31..3FC

 1
Common parts
90119-08441
90159-50193
90167-30002
90179-08026
90201-08039
90206-11004
94120-40800
94512-00800
94613-10500

(8608- )3FC

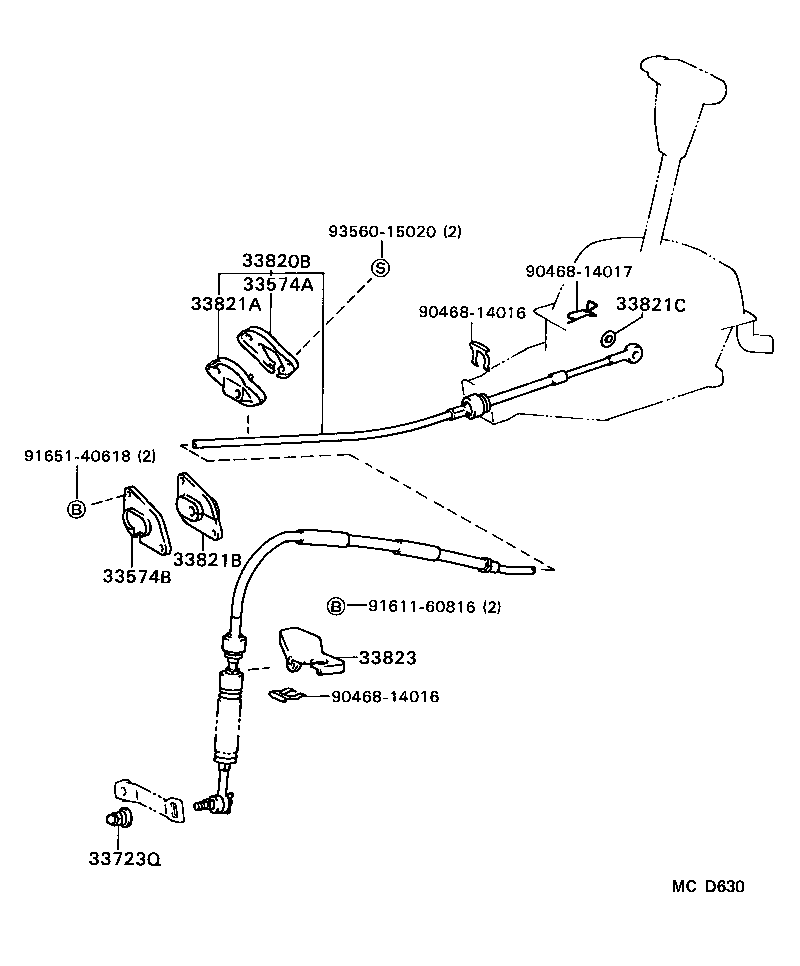

Click highlighted areas on diagram

diagram 33574A 33574B 33723Q 33820B 33821A 33821B 33821C 33823 9046814016 9046814016 9046814017 9161160816 9165140618 9356015020
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-10010

EL31

 1
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-10030

EL31

 1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08070

EL31..3FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-16050

EL31..3FC

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01281

EL31..3FC

 1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90480-01288

EL31..3FC

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-10042

EL31

SHIFT LEVER SIDE

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-16020

EL31..3FC

 1
33823-10010

EL31..3FC

 1
Common parts
90468-14016
90468-14017
91611-60816
91651-40618
93560-15020

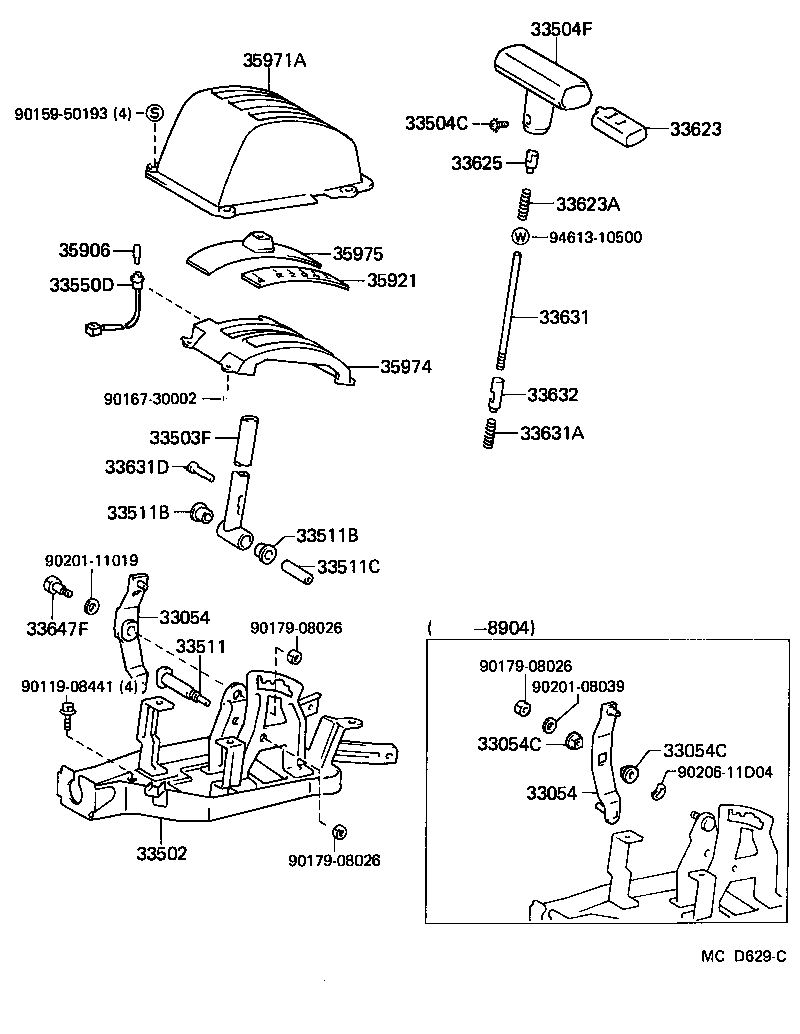

ILLUST NO. 1 OF 2(8808-8908)3FC

Click highlighted areas on diagram

diagram 33054 33054 33054C 33054C 33502 33503F 33504C 33504F 33511 33511B 33511B 33511C 33550D 33623 33623A 33625 33631 33631A 33631D 33632 33647F 35906 35921 35971A 35974 35975 9011908441 9015950193 9016730002 9017908026 9017908026 9017908026 9020108039 9020111019 9020611D04 9461310500
Part # Description Qty Price
Common parts
90119-08441
90159-50193
90167-30002
90179-08026
90201-08039
90201-11019
90206-11D04
94613-10500
