EL31L-ZGHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

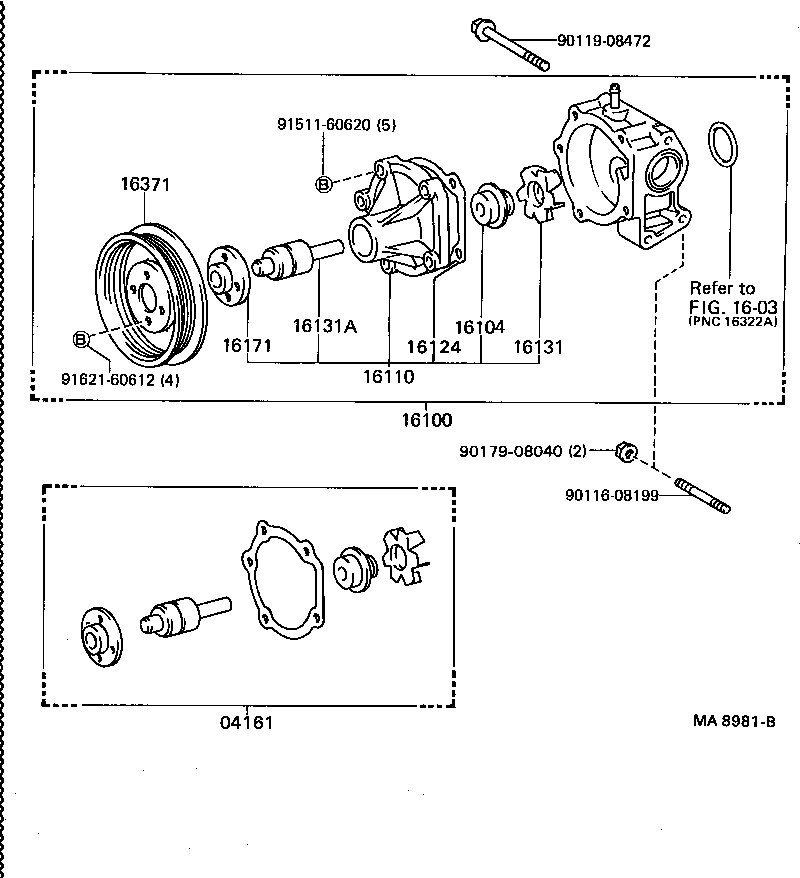

Click highlighted areas on diagram

diagram 04161 1603 16100 16104 16110 16124 16131 16131A 16171 16371 9011608199 9011908472 9017908040 9151160620 9162160612
Part # Description Qty Price
04161 - PUMP KIT, WATER
04161-10010

3E..EL31

 1
16100 - PUMP ASSY, ENGINE WATER
16100-19195

3E..EL31

 1
16104 - SEAL SET, WATER PUMP
16104-15020

3E..EL31

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19065

3E..EL31

 1
16124 - GASKET, WATER PUMP COVER
16124-10010

3E..EL31

 1
16131 - ROTOR, WATER PUMP
16131-15050

3E..EL31

 1
16131-15080

3E..EL31

 1
16131A - BEARING, WATER PUMP
90369-30064

3E..EL31

 1
16171 - SEAT, WATER PUMP PULLEY
16171-15050

3E..EL31

 1
16371 - PULLEY, FAN
16173-10011

3E..EL31

 1
Common parts
90116-08199
90119-08472
90179-08040
91511-60620
91621-60612
Linked diagrams
1603
