EL31L-ZGHBSA (1988)
Toyota Tercel
ILLUST NO. 1 OF 2(8808-8908)3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-16011 |
EL31..3FC |
1 | ||
| 33054-16010 |
EL31..3FC |
1 | ||
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-16011 |
EL31..3FC |
1 | ||
| 33054-16010 |
EL31..3FC |
1 | ||
| 33054C - BUSH(FOR SHIFT LEVER NO.2) | ||||
| 90386-11009 |
EL31..3FC |
2 | ||
| 33054C - BUSH(FOR SHIFT LEVER NO.2) | ||||
| 90386-11009 |
EL31..3FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-16121 |
EL31..3FC |
1 | ||
| 33502-16122 |
EL31..3FC |
1 | ||
| 33502-16120 |
EL31..3FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-16191 |
EL31..3FC |
1 | ||
| 33503-16190 |
EL31..3FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40134 |
EL31..3FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1604001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-16040 |
EL31..3FC |
1 | ||
| 33511-16041 |
EL31..3FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11008 |
EL31..3FC |
2 | ||
| 90386-12037 |
EL31..3FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11008 |
EL31..3FC |
2 | ||
| 90386-12037 |
EL31..3FC |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08108 |
EL31..3FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
EL31..3FC 14V 1.4W |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1603001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09077 |
EL31..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-16030 |
EL31..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16030 |
EL31..3FC |
1 | ||
| 33631-12090 |
EL31..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07055 |
EL31..3FC |
1 | ||
| 90501-09094 |
EL31..3FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04004 |
EL31..3FC |
1 | ||
| 33632 - ROD, DETENT, NO.2 | ||||
| 33632-16010 |
EL31..3FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-12010 |
EL31..3FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-16030 |
EL31..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-16091 |
EL31..3FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1604001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-1604001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 35974-1604101 |
EL31..3FC NEW BLACK,NEW BLACK,TRIM2#,4#,8# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-16040 |
EL31..3FC |
1 | ||
| Common parts | ||||
| 90119-08441 | ||||
| 90159-50193 | ||||
| 90167-30002 | ||||
| 90179-08026 | ||||
| 90201-08039 | ||||
| 90201-11019 | ||||
| 90206-11D04 | ||||
| 94613-10500 | ||||
ILLUST NO. 2 OF 2(8808- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EL31 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EL31 |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08061 |
EL31..3FC |
1 | ||
| 90179-08070 |
EL31..3FC |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-16050 |
EL31..3FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01281 |
EL31..3FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01288 |
EL31..3FC |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EL31..3FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-16020 |
EL31..3FC |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91611-60816 | ||||
| 91651-40618 | ||||
| 93560-15020 | ||||

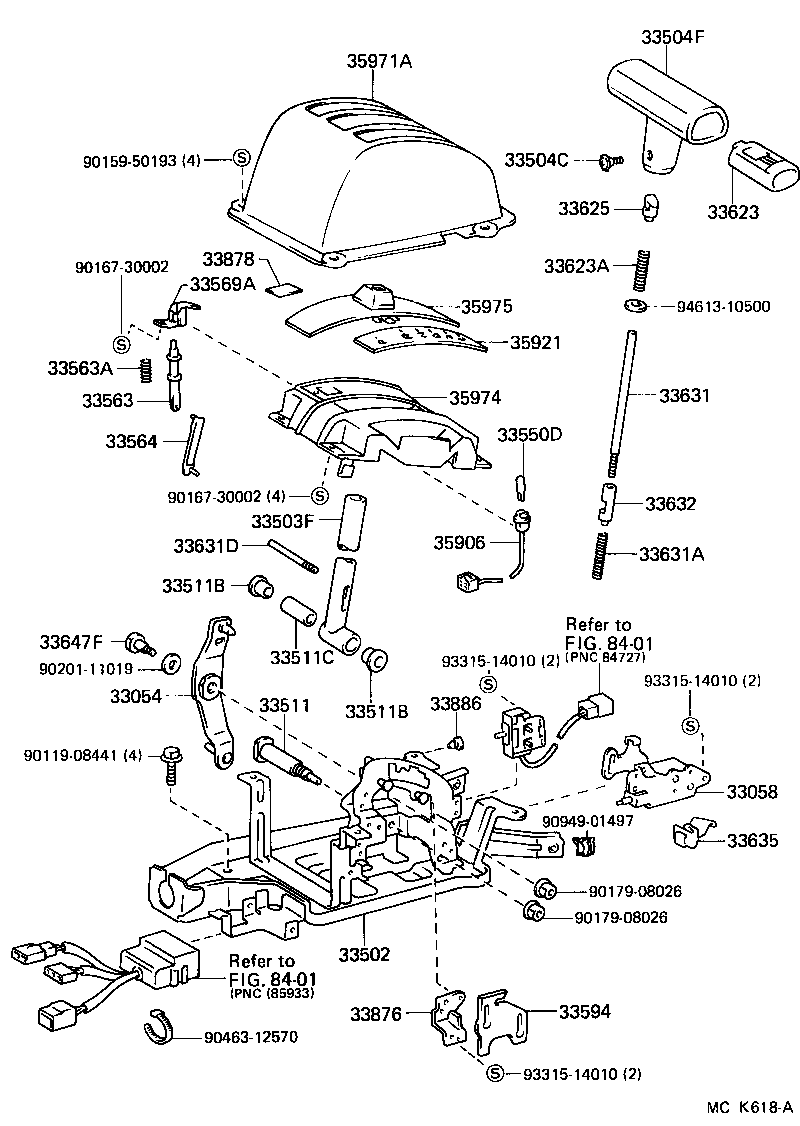

ILLUST NO. 1 OF 2(8908- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-16011 |
EL31..3FC |
1 | ||
| 33054-16010 |
EL31..3FC |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-16020 |
EL31..3FC |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-16121 |
EL31..3FC |
1 | ||
| 33502-16122 |
EL31..3FC |
1 | ||
| 33502-16120 |
EL31..3FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-16191 |
EL31..3FC |
1 | ||
| 33503-16190 |
EL31..3FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40134 |
EL31..3FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1604001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-16040 |
EL31..3FC |
1 | ||
| 33511-16041 |
EL31..3FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11008 |
EL31..3FC |
2 | ||
| 90386-12037 |
EL31..3FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-11008 |
EL31..3FC |
2 | ||
| 90386-12037 |
EL31..3FC |
2 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08108 |
EL31..3FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
EL31..3FC 14V 1.4W |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-16020 |
EL31..3FC |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07081 |
EL31..3FC |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-16020 |
EL31..3FC |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-16020 |
EL31..3FC |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-16020 |
EL31..3FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1603001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09077 |
EL31..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-16030 |
EL31..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16030 |
EL31..3FC |
1 | ||
| 33631-12090 |
EL31..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07055 |
EL31..3FC |
1 | ||
| 90501-09094 |
EL31..3FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04004 |
EL31..3FC |
1 | ||
| 33632 - ROD, DETENT, NO.2 | ||||
| 33632-16010 |
EL31..3FC |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-16030 |
EL31..3FC |
1 | ||
| 33647F - SHAFT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33647-12010 |
EL31..3FC |
1 | ||
| 33876 - GUIDE, SHIFT LOCK PLATE | ||||
| 33876-16010 |
EL31..3FC |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-14010 |
EL31..3FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-20010 |
EL31..3FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-16030 |
EL31..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-16091 |
EL31..3FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1604001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-1604001 |
EL31..3FC NEW BLACK,TRIM2# |
1 | ||
| 35974-1604101 |
EL31..3FC NEW BLACK,NEW BLACK,TRIM2#,4#,8# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-16040 |
EL31..3FC |
1 | ||
| Common parts | ||||
| 90119-08441 | ||||
| 90159-50193 | ||||
| 90167-30002 | ||||
| 90179-08026 | ||||
| 90201-11019 | ||||
| 90463-12570 | ||||
| 90949-01497 | ||||
| 93315-14010 | ||||
| 94613-10500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
