EL31L-ZDMRSA (1987)
Toyota Tercel
Production
Jan 1987
-
Aug 1988
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8701- )2DS

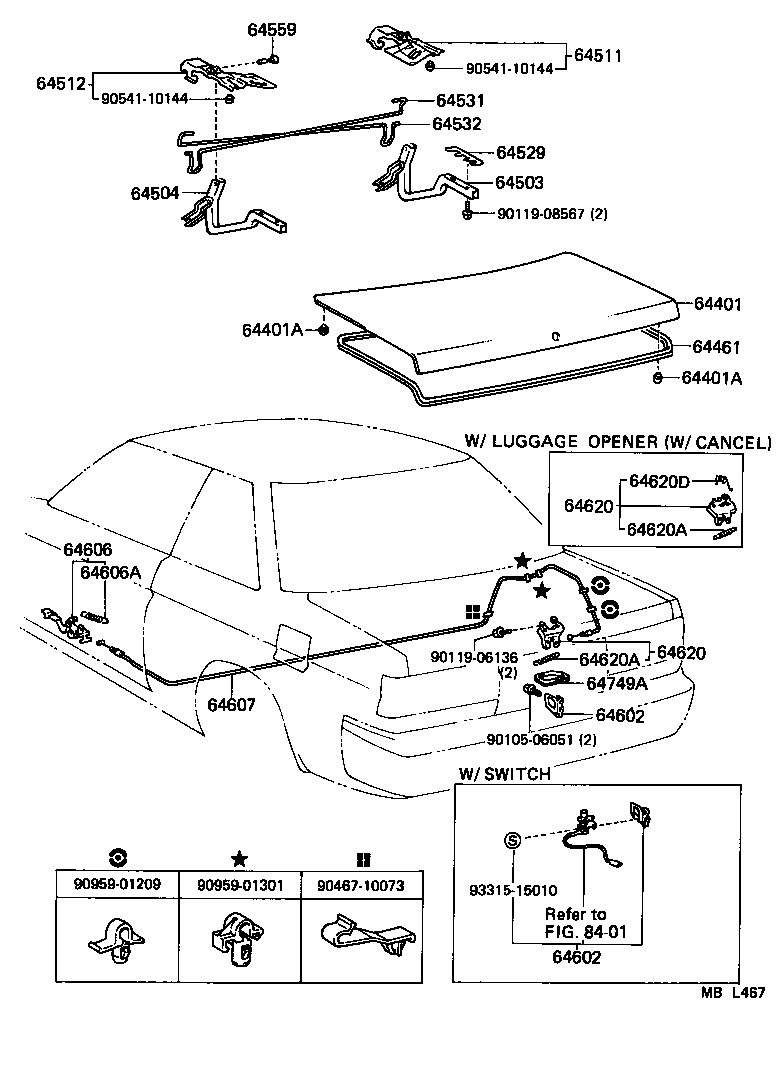

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-16100 |
EL31..2DS |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
EL31..2DS FR |
2 | ||
| 90541-17001 |
EL31..2DS RR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
EL31..2DS FR |
2 | ||
| 90541-17001 |
EL31..2DS RR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-16120 |
EL31..2DS |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-16010 |
EL31..2DS |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-16010 |
EL31..2DS |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64505-16010 |
EL31..2DS |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64506-16010 |
EL31..2DS |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
EL31..2DS |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-16050 |
EL31..2DS |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-16050 |
EL31..2DS |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32010 |
EL31..2DS |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-12070 |
EL31..2DS W/SWITCH |
1 | ||
| 64621-12060 |
EL31..2DS |
1 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-12070 |
EL31..2DS W/SWITCH |
1 | ||
| 64621-12060 |
EL31..2DS |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-12050 |
EL31..2DS |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EL31..2DS |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-16220 |
EL31..2DS |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20090 |
EL31..2DS W/LUGGAGE OPENER(W/CANCEL) |
1 | ||
| 64610-16040 |
EL31..2DS |
1 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20090 |
EL31..2DS W/LUGGAGE OPENER(W/CANCEL) |
1 | ||
| 64610-16040 |
EL31..2DS |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
EL31..2DS |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
EL31..2DS |
1 | ||
| 64620D - SPRING, TORSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90508-09001 |
EL31..2DS W/LUGGAGE OPENER(W/CANCEL) |
1 | ||
| 64749A - COVER, LUGGAGE COMPARTMENT DOOR STRIKER | ||||
| 64749-16010 |
EL31..2DS |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06136 | ||||
| 90119-08567 | ||||
| 90467-10073 | ||||
| 90541-10144 | ||||
| 90959-01209 | ||||
| 90959-01301 | ||||
| 93315-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
