Toyota Tercel EL31 WIRING & CLAMP

EL31L-ZDMRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990

Engine 3E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

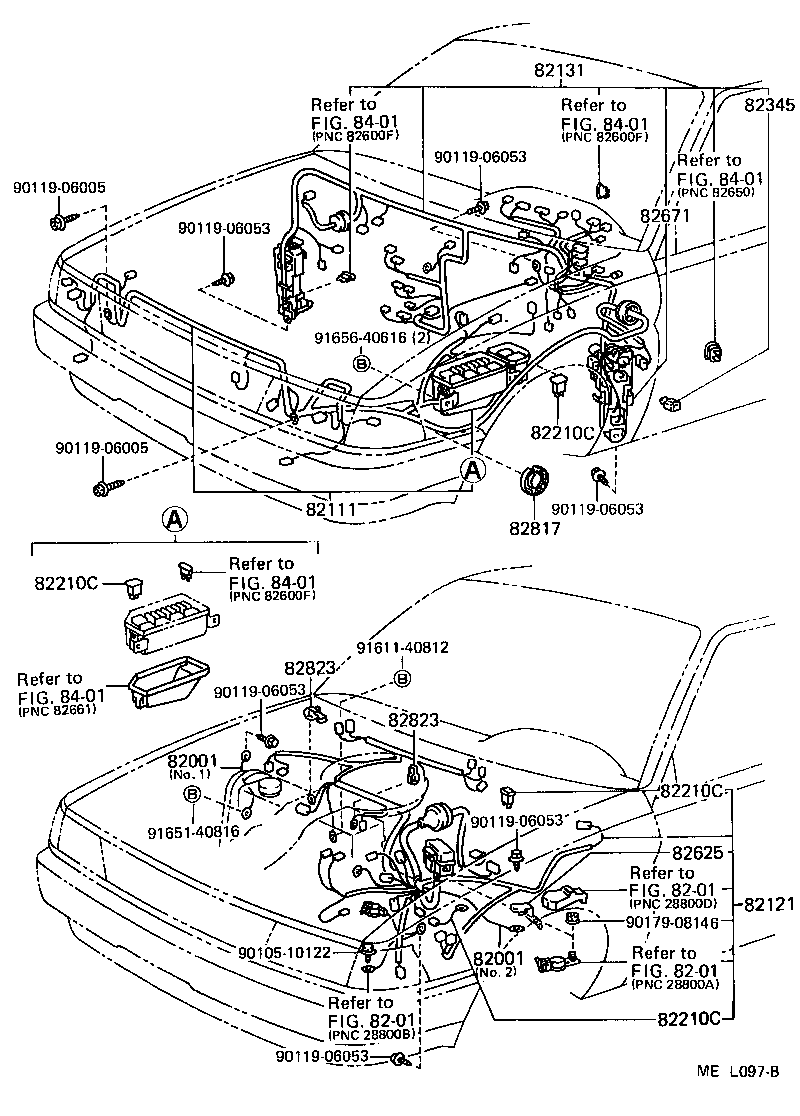

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07242	EL31 NO.2	08/1988 - 09/1990	1
90980-07282	EL31 NO.1	08/1988 - 09/1990	1
82001 - CABLE, BOND, NO.1
90980-07242	EL31 NO.2	08/1988 - 09/1990	1
90980-07282	EL31 NO.1	08/1988 - 09/1990	1
82111 - WIRE, ENGINE ROOM MAIN
82111-16701	EL31..DX,STD	08/1988 - 08/1989	1
82111-16741	EL31..2DS..USA W(ANTI-THEFT DEVICE)	08/1988 - 08/1989	1
82111-16702	EL31..(DX,STD)..USA..CBR	08/1989 - 09/1990	1
82111-16742	EL31..2DS..STD..CBR W(ANTI-THEFT DEVICE)	08/1989 - 09/1990	1
82121 - WIRE, ENGINE
82121-16273	EL31..MTM..USA	08/1988 - 08/1989	1
82121-16400	EL31..MTM..USA CALIFORNIA SPEC	08/1988 - 08/1989	1
82121-16323	EL31..MTM..USA COLD SPEC	08/1988 - 08/1989	1
82121-16274	EL31..MTM..USA	08/1989 - 09/1990	1
82121-16324	EL31..MTM..USA COLD SPEC	08/1989 - 09/1990	1
82121-16401	EL31..MTM..USA CALIFOLNIA SPEC	08/1989 - 09/1990	1
82131 - WIRE, COWL
82131-1G330	EL31..(BASE,STD)..USA W(REAR WINDOW DEFFOGGER)	08/1988 - 08/1989	1
82131-1G432	EL31..(BASE,STD)..USA..CBR	08/1989 - 02/1990	1
82131-1G320	EL31..(BASE,STD)..USA	08/1988 - 08/1989	1
82131-1G360	EL31..2DS..STD W(ANTI-THEFT DEVICE)	08/1988 - 08/1989	1
82131-1G482	EL31..2DS..STD..CBR W(ANTI-THEFT DEVICE)	08/1989 - 09/1990	1
82131-1G442	EL31..(BASE,STD)..USA..CBR W(REAR WINDOW DEFFOGGER)	08/1989 - 02/1990	1
82131-1S030	EL31..MTM..(BASE,STD)..USA	02/1990 - 09/1990	1
82131-1G790	EL31..MTM..(BASE,STD)..USA	02/1990 - 09/1990	1
82210C - FUSIBLE LINK
90982-08190	EL31 60A,TERM.:FEMALE,YEL	08/1988 - 08/1989	1
90982-08190	EL31..USA..CBR 60A,TERM.:FEMALE,YEL	08/1989 - 09/1990	1
90982-08188	EL31 30A,TERM.:FEMALE,PNK	08/1988 - 09/1990	1
90982-08189	EL31..CBR 40A,TERM.:FEMALE,GRN	08/1988 - 09/1990	1
82210C - FUSIBLE LINK
90982-08190	EL31 60A,TERM.:FEMALE,YEL	08/1988 - 08/1989	1
90982-08190	EL31..USA..CBR 60A,TERM.:FEMALE,YEL	08/1989 - 09/1990	1
90982-08188	EL31 30A,TERM.:FEMALE,PNK	08/1988 - 09/1990	1
90982-08189	EL31..CBR 40A,TERM.:FEMALE,GRN	08/1988 - 09/1990	1
82210C - FUSIBLE LINK
90982-08190	EL31 60A,TERM.:FEMALE,YEL	08/1988 - 08/1989	1
90982-08190	EL31..USA..CBR 60A,TERM.:FEMALE,YEL	08/1989 - 09/1990	1
90982-08188	EL31 30A,TERM.:FEMALE,PNK	08/1988 - 09/1990	1
90982-08189	EL31..CBR 40A,TERM.:FEMALE,GRN	08/1988 - 09/1990	1
82210C - FUSIBLE LINK
90982-08190	EL31 60A,TERM.:FEMALE,YEL	08/1988 - 08/1989	1
90982-08190	EL31..USA..CBR 60A,TERM.:FEMALE,YEL	08/1989 - 09/1990	1
90982-08188	EL31 30A,TERM.:FEMALE,PNK	08/1988 - 09/1990	1
90982-08189	EL31..CBR 40A,TERM.:FEMALE,GRN	08/1988 - 09/1990	1
82345 - DIODE
82345-12050	EL31..2DS,3DS	08/1988 - 08/1989	1
82345-12050	EL31..USA..CBR	08/1989 - 09/1990	1
82671 - BLOCK, JUNCTION
82660-12130	EL31..MTM;EL31..3FC..CND;EL31..STD..EFI;EL31..3FC..DX..USA	02/1990 - 09/1990	1
82660-12130	EL31	08/1988 - 02/1990	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22280	EL31	08/1988 - 09/1990	1
82823 - CAP, TERMINAL, NO.1
82823-20030	EL31..USA ST	08/1988 - 08/1989	1
82823-20030	EL31..MTM..USA ST	08/1989 - 09/1990	1
82823-22050	EL31 ALTERNATOR	08/1988 - 09/1990	1
82823 - CAP, TERMINAL, NO.1
82823-20030	EL31..USA ST	08/1988 - 08/1989	1
82823-20030	EL31..MTM..USA ST	08/1989 - 09/1990	1
82823-22050	EL31 ALTERNATOR	08/1988 - 09/1990	1
Common parts
90105-10122
90119-06005
90119-06053
90179-08146
91611-40812
91651-40816
91656-40616
Linked diagrams
8201
8401

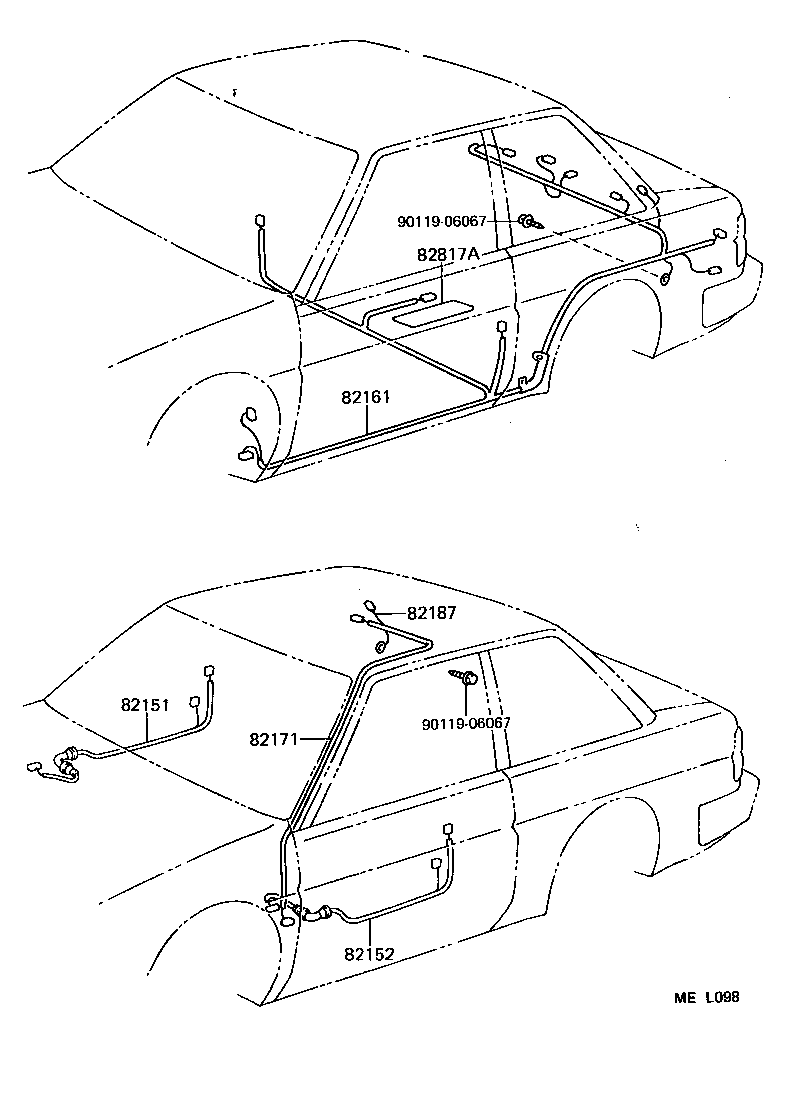

ILLUST NO. 2 OF 3(8808- )2DS

Click highlighted areas on diagram

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-16080	EL31..TER..(2DS,3DS)..USA..CBR	08/1988 - 09/1990	1
82152 - WIRE, FRONT DOOR, LH
82152-16060	EL31..TER..(2DS,3DS)..USA..CBR	08/1988 - 09/1990	1
82161 - WIRE, FLOOR
82161-16381	EL31..2DS	08/1988 - 08/1989	1
82161-16382	EL31..2DS..CBR	08/1989 - 02/1990	1
82161-16392	EL31..2DS..CBR W(RR ROOM LAMP)	08/1989 - 02/1990	1
82161-16391	EL31..2DS W(RR ROOM LAMP)	08/1988 - 08/1989	1
82161-16890	EL31..2DS..USA..CBR W(RR ROOM LAMP)	02/1990 - 09/1990	1
82161-16392	EL31..2DS..USA..CBR W(ANTI-THEFT DEVICE & RR ROOM LAMP)	07/1990 - 09/1990	1
82161-16880	EL31..2DS..USA..CBR	02/1990 - 09/1990	1
82161-16382	EL31..2DS..USA..CBR ANTI-THEFT DEVICE	07/1990 - 09/1990	1
82171 - WIRE, ROOF, NO.1
82171-16100	EL31..2DS	08/1988 - 09/1990	1
82187 - WIRE, REAR WINDOW, NO.2
82187-16050	EL31..(2DS,5DS)..STD..USA	08/1988 - 09/1990	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100	EL31	08/1988 - 09/1990	1
Common parts
90119-06067

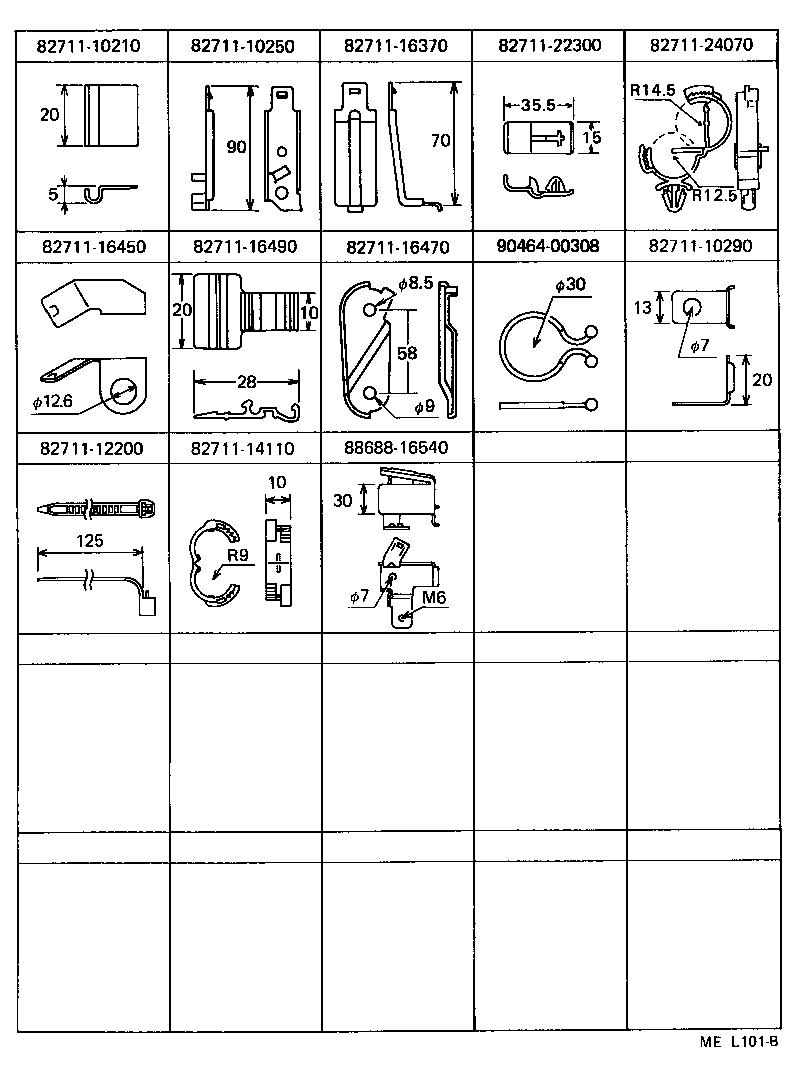

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-10210
82711-10250
82711-10290
82711-12200
82711-14110
82711-16370
82711-16450
82711-16470
82711-16490
82711-22300
82711-24070
88688-16540
90464-00308
