EL31L-ZDMDSK (1987)
Toyota Tercel
Production
Jan 1987
-
Aug 1988
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8701- )2DS

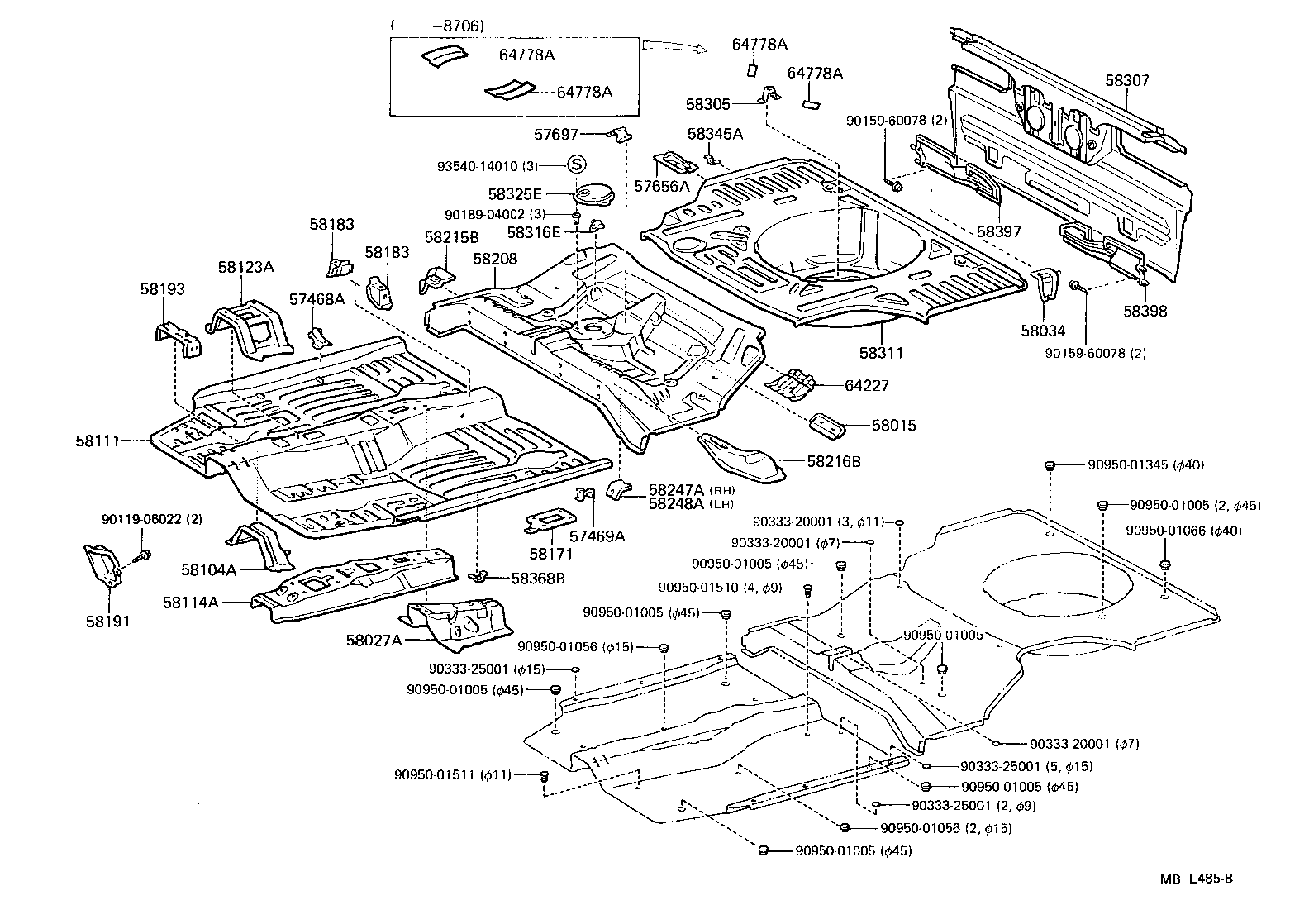

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-16030 |
EL31 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-16030 |
EL31 |
1 | ||
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-16010 |
EL31 |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-16010 |
EL31..2DS |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-16040 |
EL31 |
2 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-16020 |
EL31 |
1 | ||
| 58034 - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR | ||||
| 58034-16010 |
EL31 |
1 | ||
| 58104A - BRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT | ||||
| 58104-10030 |
EL31 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16060 |
EL31 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-10030 |
EL31 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-10030 |
EL31 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-16020 |
EL31 |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-16010 |
EL31 RH |
1 | ||
| 58184-16020 |
EL31 LH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-16010 |
EL31 RH |
1 | ||
| 58184-16020 |
EL31 LH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-16050 |
EL31 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16010 |
EL31 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-16060 |
EL31..2DS |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-16020 |
EL31 |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-16020 |
EL31 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-10010 |
EL31..2DS |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-10010 |
EL31..2DS |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
EL31 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-16310 |
EL31..2DS |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-16120 |
EL31..2DS |
1 | ||
| 58316E - RETAINER, REAR SEAT SET | ||||
| 58316-16010 |
EL31..2DS |
2 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16020 |
EL31 |
1 | ||
| 58345A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-16030 |
EL31..2DS |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-10010 |
EL31 |
2 | ||
| 58397 - COVER, LOWER BACK, OUTER RH | ||||
| 58397-16020 |
EL31..2DS |
1 | ||
| 58398 - COVER, LOWER BACK, OUTER LH | ||||
| 58398-16020 |
EL31..2DS |
1 | ||
| 64227 - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-16010 |
EL31..2DS |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16020 |
EL31 |
3 | ||
| 64778-12020 |
EL31 |
2 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16020 |
EL31 |
3 | ||
| 64778-12020 |
EL31 |
2 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16020 |
EL31 |
3 | ||
| 64778-12020 |
EL31 |
2 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16020 |
EL31 |
3 | ||
| 64778-12020 |
EL31 |
2 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90159-60078 | ||||
| 90189-04002 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01066 | ||||
| 90950-01345 | ||||
| 90950-01510 | ||||
| 90950-01511 | ||||
| 93540-14010 | ||||
