EL31L-ZDMDSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2DS

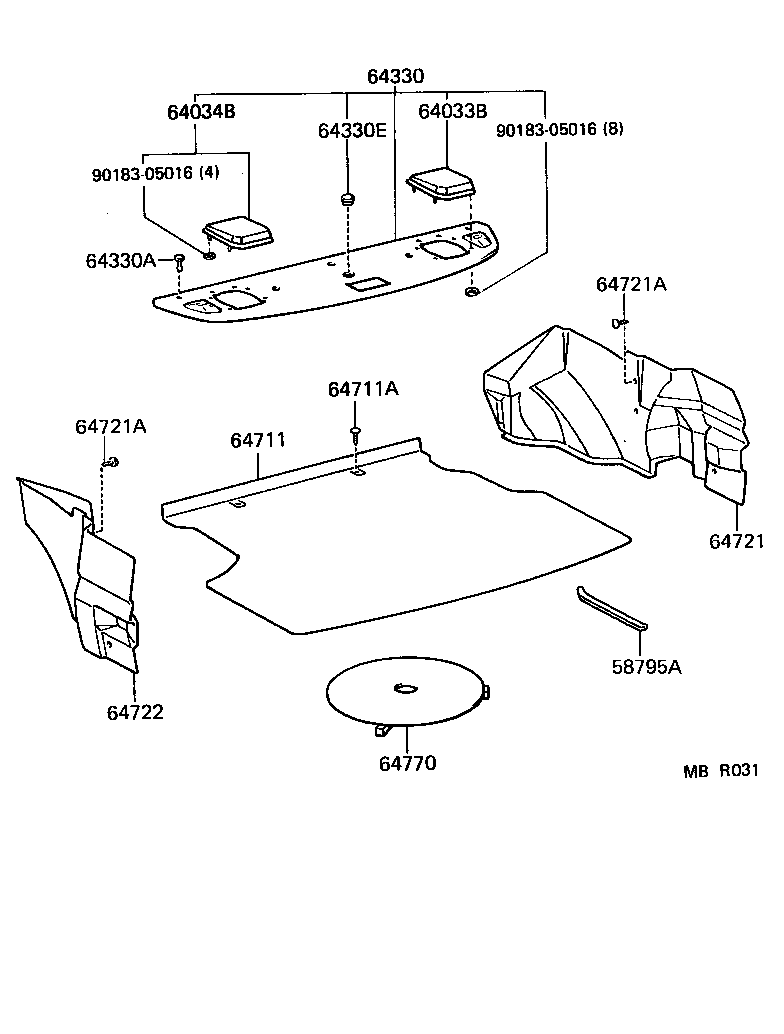

Click highlighted areas on diagram

diagram 58795A 64033B 64034B 64330 64330A 64330E 64711 64711A 64721 64721A 64721A 64722 64770 9018305016 9018305016
Part # Description Qty Price
58795A - TRIM, JACK HOUSE OPENING
58795-1603001

EL31..2DS

BLACK,TRIM2#,4#,8#

 2
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-1601101

EL31..2DS..USA

BLACK,TRIM2#,8#

 1
64033-1601104

EL31..2DS..USA

BLUE,TRIM2#,8#

 1
64033-1601106

EL31..2DS..USA

BROWN,TRIM4#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64033-1601104

EL31..2DS..USA

BLUE,TRIM2#,8#

 1
64033-1601106

EL31..2DS..USA

BROWN,TRIM4#

 1
64033-1601101

EL31..2DS..USA

BLACK,TRIM2#,8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-1623006

EL31..2DS..USA

W(4 SPEAKER),BROWN,TRIM4#

 1
64330-1622004

EL31..2DS

BLUE,TRIM8#

 1
64330-1623001

EL31..2DS..USA

W(4 SPEAKER),BLACK,TRIM2#

 1
64330-1623004

EL31..2DS..USA

W(4 SPEAKER),BLUE,TRIM8#

 1
64330-1622001

EL31..2DS

BLACK,TRIM2#

 1
64330-1622006

EL31..2DS

BROWN,TRIM4#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-08046E0

EL31..2DS

BROWN,TRIM4#

 5
90467-0804611

EL31..2DS

BLACK,TRIM2#

 5
90467-0804614

EL31..2DS

BLUE,TRIM8#

 5
64330E - PLUG(FOR PACKAGE TRAY TRIM PANEL)
90950-0143614

EL31..2DS

DEEP BLUE,TRIM8#

 3
90950-01436E1

EL31..2DS

BROWN,TRIM4#

 3
90950-0143601

EL31..2DS

BLACK,TRIM2#

 3
90950-0143616

EL31..2DS

BROWN,TRIM4#

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-1604003

EL31..2DS

GRAY,TRIM2#,4#,8#

 1
64711A - CLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
90467-0603733

EL31..2DS

GRAY,TRIM2#,4#,8#

 2
90467-0603714

EL31..2DS

BLUE,TRIM8#

 2
90467-0603726

EL31..2DS

BROWN,TRIM4#

 2
90467-0603701

EL31..2DS

BLACK,TRIM2#

 2
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-1602003

EL31..2DS

GRAY,TRIM2#,4#,8#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042B0

EL31..2DS

LIGHT GRAY,TRIM2#,4#,8#

 4
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-07042B0

EL31..2DS

LIGHT GRAY,TRIM2#,4#,8#

 4
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-1602003

EL31..2DS

GRAY,TRIM2#,4#,8#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-16100

EL31..2DS

 1
Common parts
90183-05016
