EL31L-ZDHRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

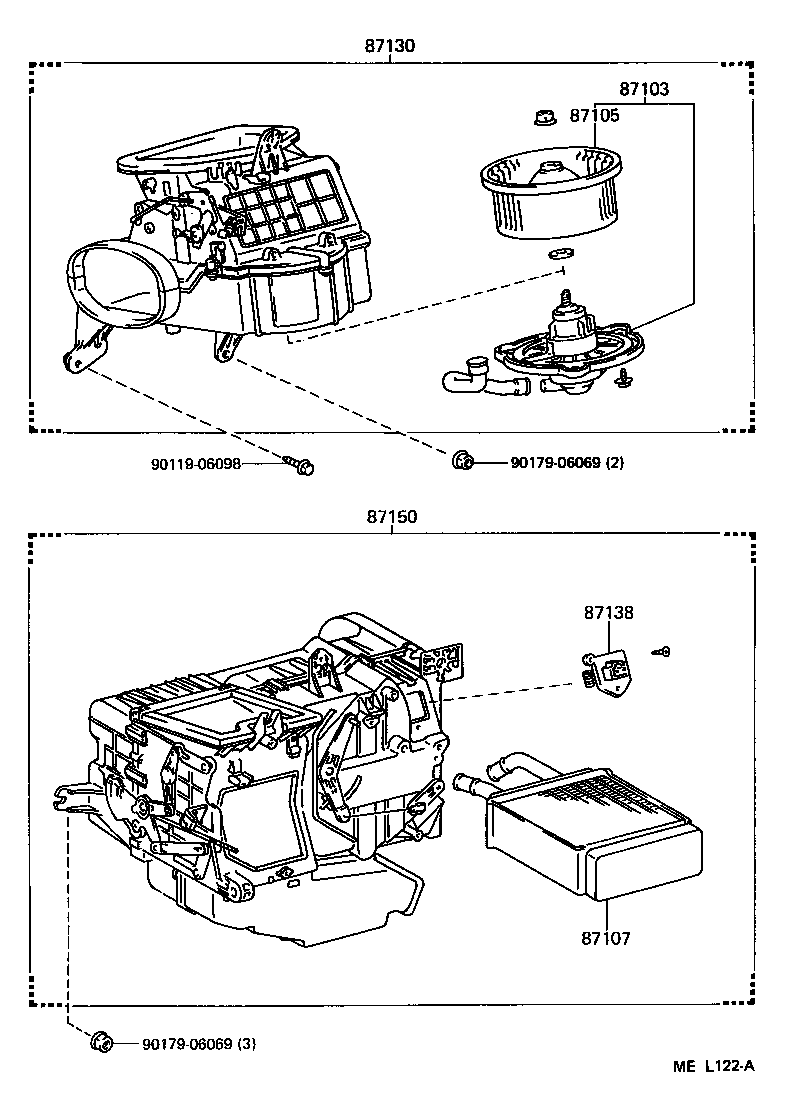

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-16020 |
EL31 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-32020 |
EL31 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-16160 |
EL31..USA..CBR COLD SPEC |
1 | ||
| 87107-16150 |
EL31..USA |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-16120 |
EL31 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-12110 |
EL31 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-16210 |
EL31..USA |
1 | ||
| 87150-16220 |
EL31..USA..CBR COLD SPEC |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90179-06069 | ||||
