EL31L-ZDHRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

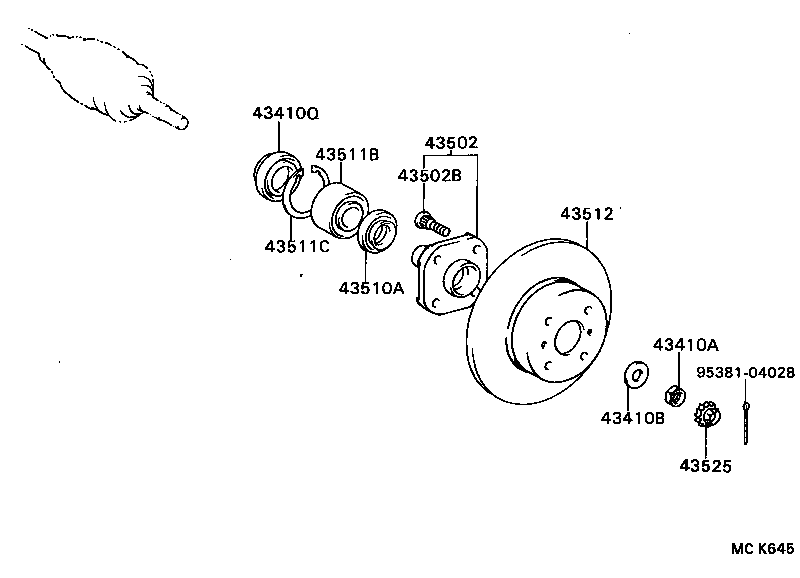

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43410A - NUT (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90170-19001 |
EL31 |
2 | ||
| 43410B - WASHER (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90201-20012 |
EL31 |
2 | ||
| 43410Q - SEAL, OIL (FOR FRONT DRIVE SHAFT) | ||||
| 90311-56006 |
EL31 |
1 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-16030 |
EL31 |
1 | ||
| 43502B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02047 |
EL31 |
8 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-54003 |
EL31 |
1 | ||
| 43511B - BEARING (FOR FRONT AXLE HUB) | ||||
| 90369-38006 |
EL31 |
1 | ||
| 43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB) | ||||
| 90521-77004 |
EL31 T=2.64 |
2 | ||
| 90521-77005 |
EL31 T=2.70 |
2 | ||
| 90521-77003 |
EL31 T=2.59 |
2 | ||
| 90521-77002 |
EL31 T=2.53 |
2 | ||
| 90521-77001 |
EL31 OD=77 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-16031 |
EL31 |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-16010 |
EL31 |
2 | ||
| Common parts | ||||
| 95381-04028 | ||||
