EL31L-ZDHDSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

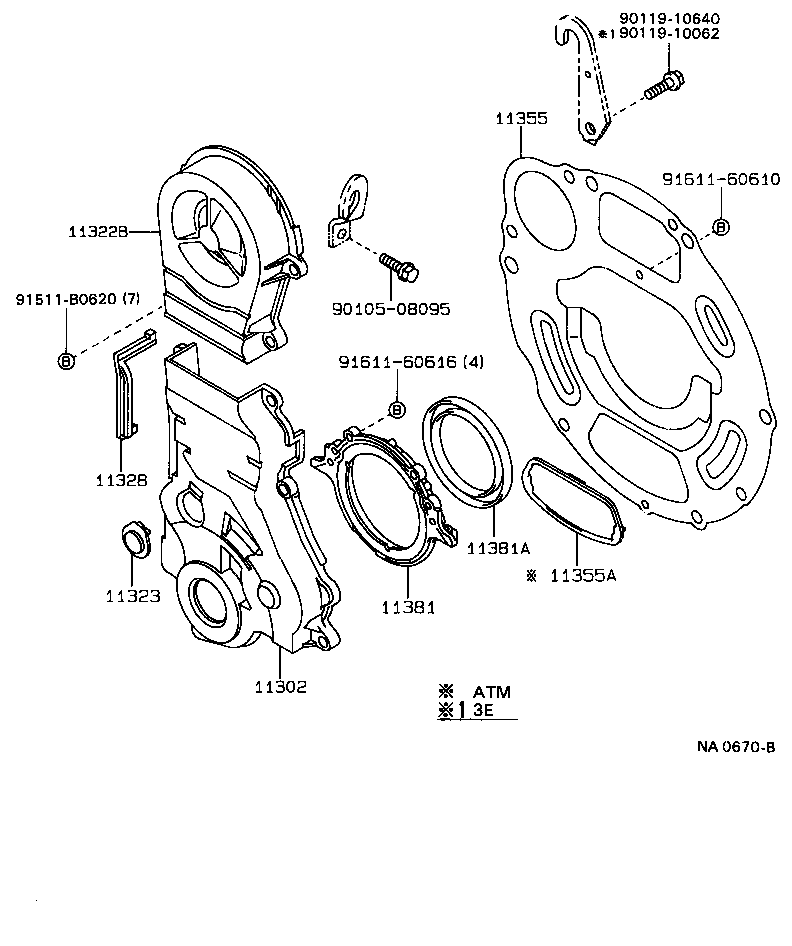

Click highlighted areas on diagram

diagram 11302 11322B 11323 11328 11355 11355A 11381 11381A 9010508095 9011910062 9011910640 91511B0620 9161160610 9161160616
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-11031

3E#..EL31

 1
11322B - COVER, TIMING BELT, NO.2
11303-11010

3E#..EL31

 1
11323 - COVER, TIMING GEAR, NO.3
11323-10011

3E#..EL31

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-11020

3E#..EL31

 1
11355 - PLATE, REAR END
11355-11011

3E#..EL31..3FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01548

3E#..EL31..3FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-10020

3E#..EL31

 1
11381A - SEAL, ENGINE REAR OIL
90311-80007

3E#..EL31

 1
Common parts
90105-08095
90119-10062
90119-10640
91511-B0620
91611-60610
91611-60616
