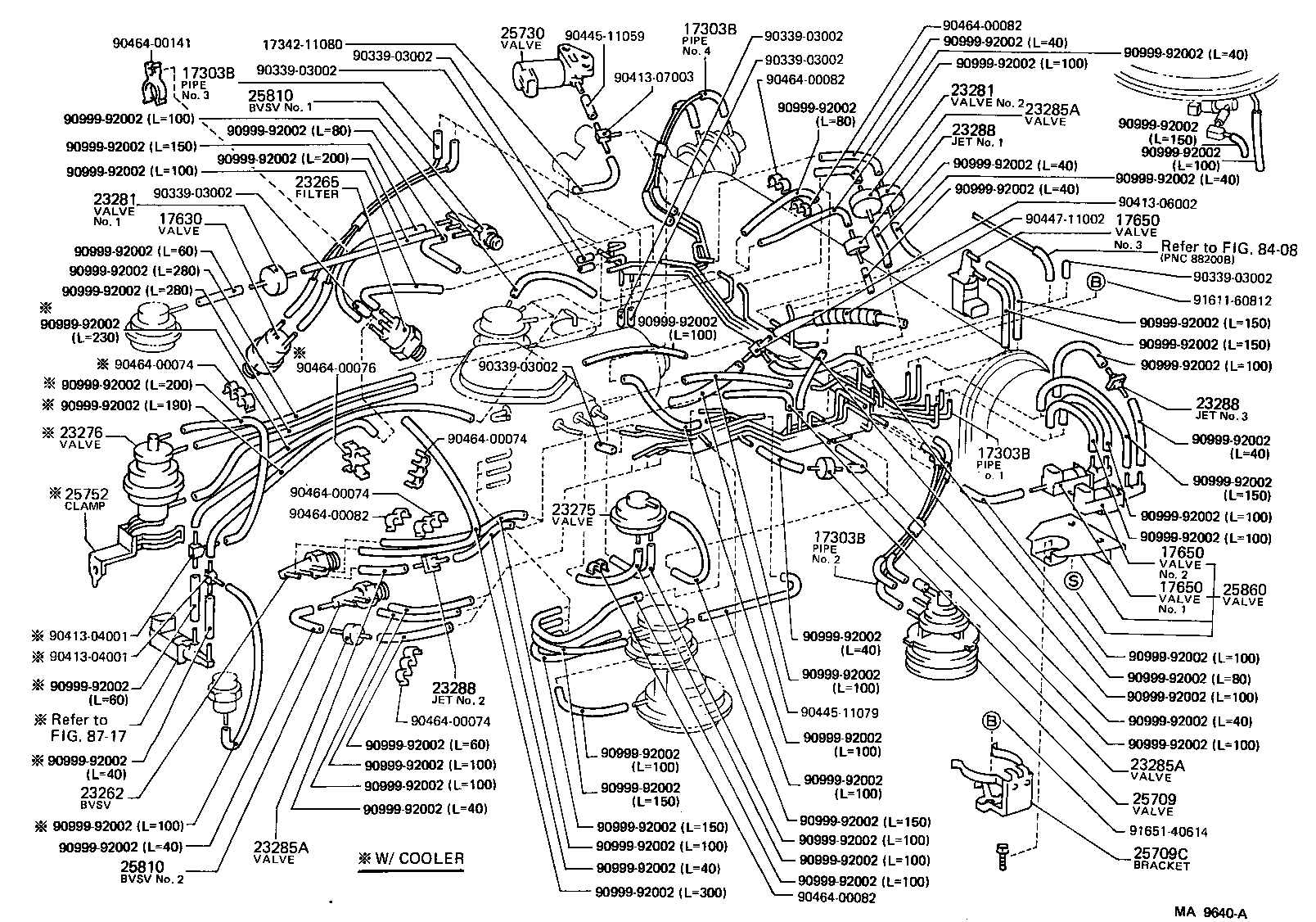

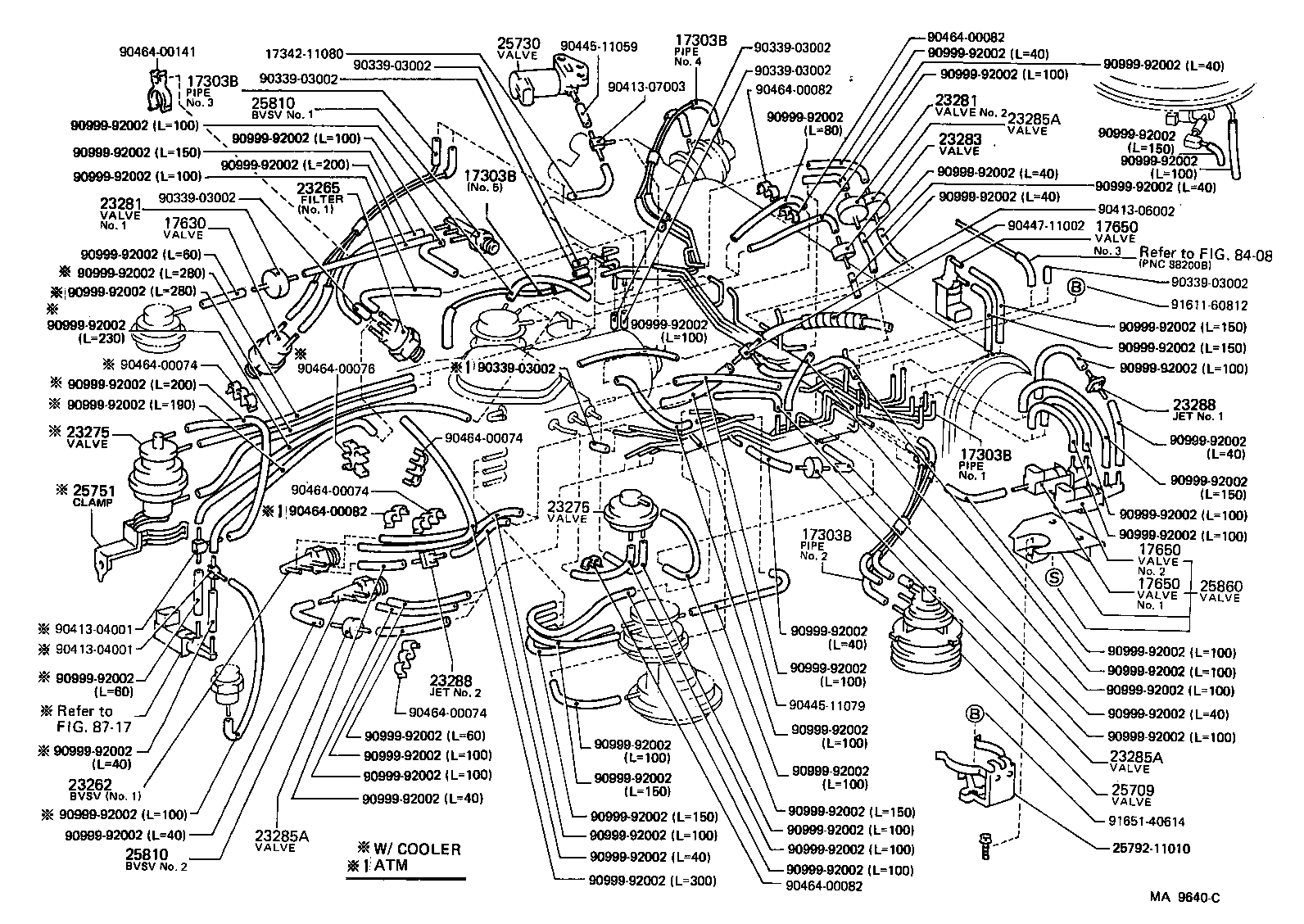

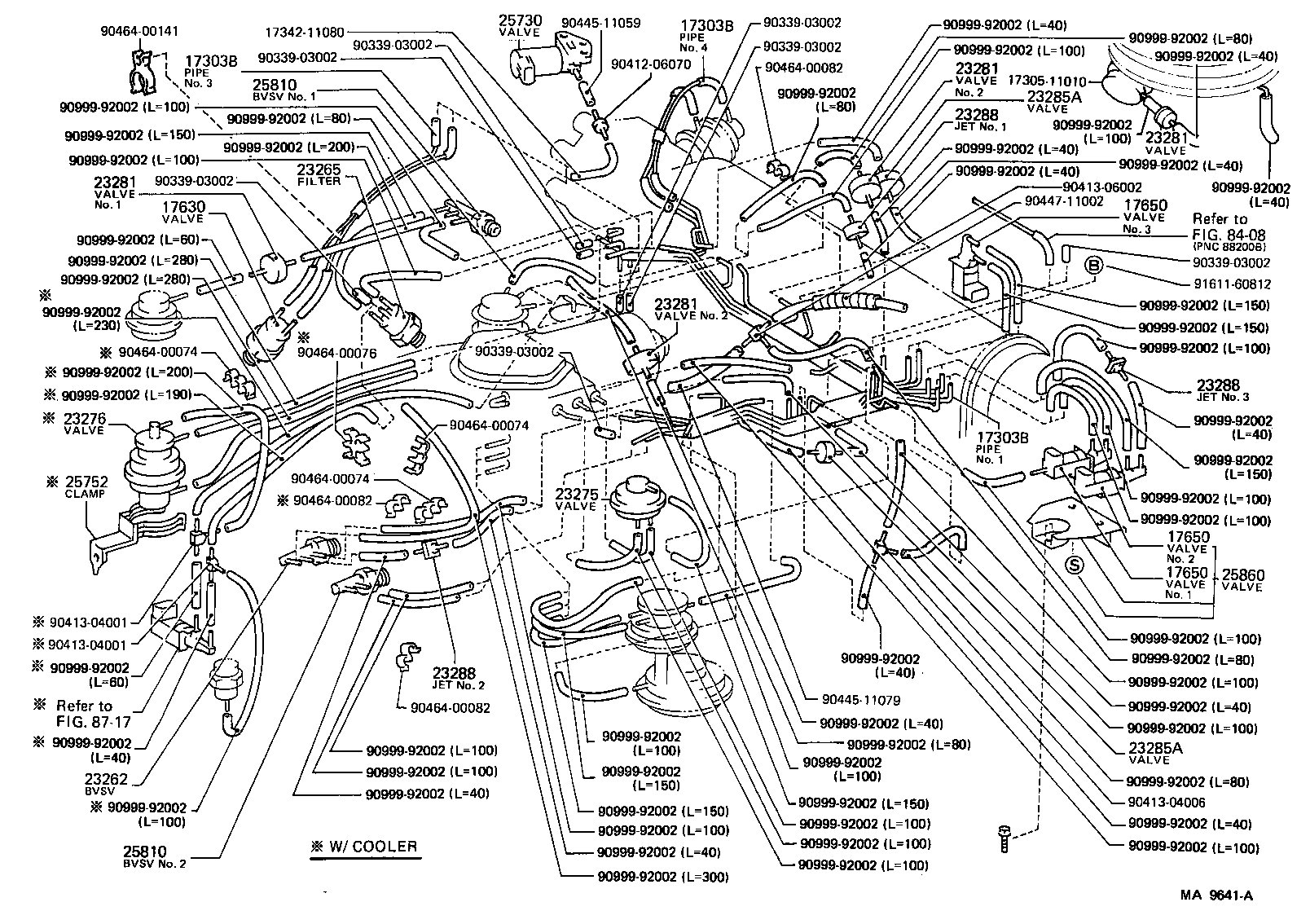

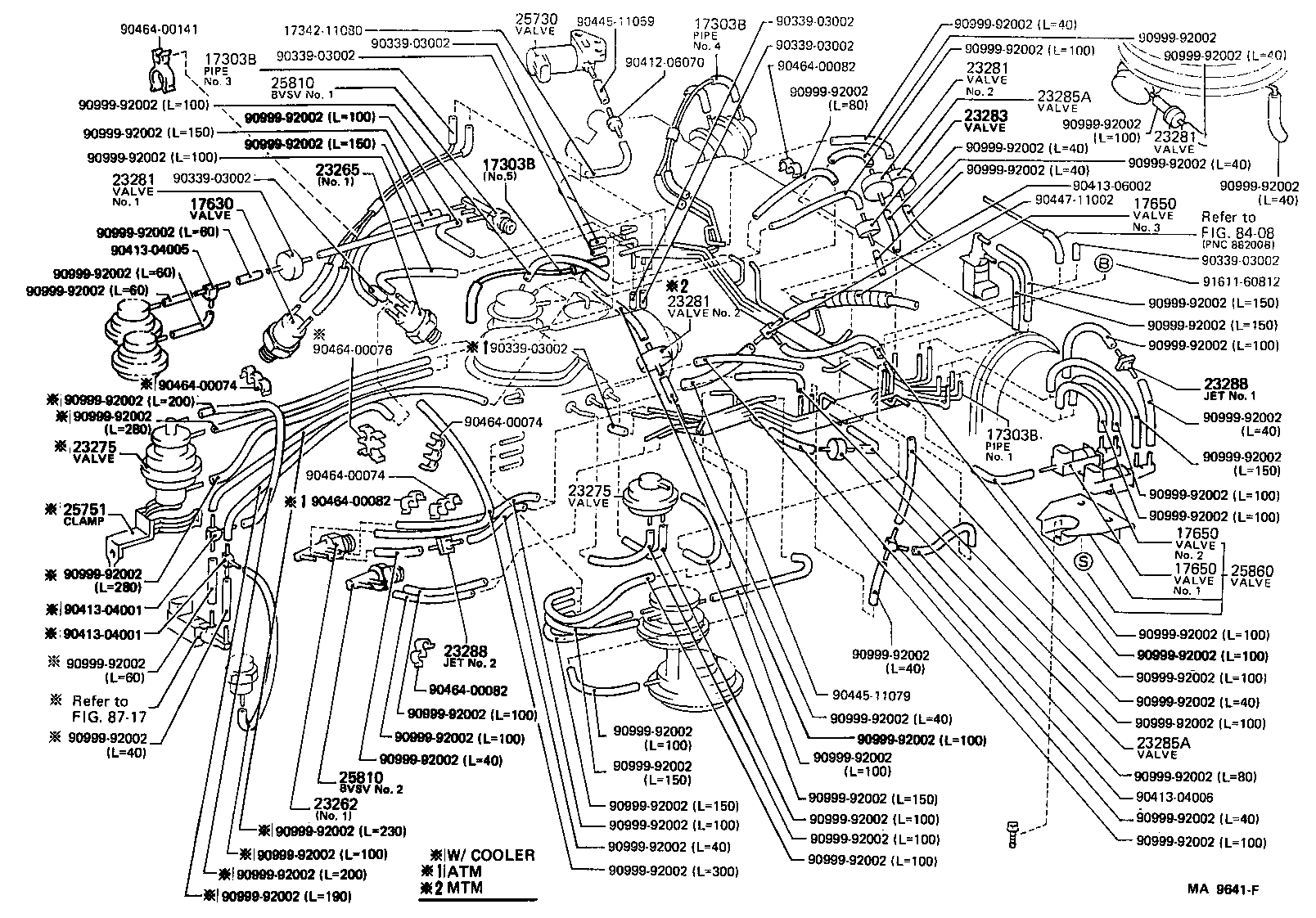

EL31L-ZDHDSA (1987)
Toyota Tercel
(8701-8708)3E..STD..USA ; (8701-8708)3E..3DS..B,DX ; (8701-8708)3E..2DS,5DS..DX..US
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11230 |
3E..EL31..USA NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 17303-11180 |
3E..EL31..USA NO.2 |
1 | ||
| 17303-11110 |
3E..EL31..USA NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11200 |
3E..EL31..USA NO.4 |
1 | ||
| 17303-11190 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11230 |
3E..EL31..USA NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 17303-11180 |
3E..EL31..USA NO.2 |
1 | ||
| 17303-11110 |
3E..EL31..USA NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11200 |
3E..EL31..USA NO.4 |
1 | ||
| 17303-11190 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11230 |
3E..EL31..USA NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 17303-11180 |
3E..EL31..USA NO.2 |
1 | ||
| 17303-11110 |
3E..EL31..USA NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11200 |
3E..EL31..USA NO.4 |
1 | ||
| 17303-11190 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11230 |
3E..EL31..USA NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 17303-11180 |
3E..EL31..USA NO.2 |
1 | ||
| 17303-11110 |
3E..EL31..USA NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11200 |
3E..EL31..USA NO.4 |
1 | ||
| 17303-11190 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17630-15021 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31..USA NO.3(AISIN) |
1 | ||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12046 |
3E..EL31..USA NO.2(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31..USA NO.1(AISIN) |
1 | ||
| 90910-12048 |
3E..EL31..USA NO.2(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12045 |
3E..EL31..USA NO.1(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31..USA NO.3(AISIN) |
1 | ||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12046 |
3E..EL31..USA NO.2(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31..USA NO.1(AISIN) |
1 | ||
| 90910-12048 |
3E..EL31..USA NO.2(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12045 |
3E..EL31..USA NO.1(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31..USA NO.3(AISIN) |
1 | ||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12046 |
3E..EL31..USA NO.2(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31..USA NO.1(AISIN) |
1 | ||
| 90910-12048 |
3E..EL31..USA NO.2(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12045 |
3E..EL31..USA NO.1(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
3E..EL31..3FC..USA |
1 | ||
| 90925-05051 |
3E..EL31..3FC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3E..EL31 DENSO |
1 | ||
| 90917-11027 |
3E..EL31 AISIN |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 90925-03180 |
3E..EL31..3FC NO.2 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W/COOLER |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
3E..EL31..2DS..USA NO.2 |
1 | ||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 90925-01041 |
3E..EL31..3FC NO.2 |
1 | ||
| 90925-01015 |
3E..EL31..USA NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
3E..EL31..2DS..USA NO.2 |
1 | ||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 90925-01041 |
3E..EL31..3FC NO.2 |
1 | ||
| 90925-01015 |
3E..EL31..USA NO.1 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-04007 |
3E..EL31..3FC..USA NO.1 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-04007 |
3E..EL31..3FC..USA NO.1 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-04007 |
3E..EL31..3FC..USA NO.1 |
1 | ||
| 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR | ||||
| 25709-11010 |
3E..EL31..USA |
1 | ||
| 25709-11010 |
3E..EL31 |
1 | ||
| 25709C - BRACKET, HIGH ALTITUDE COMPENSATOR | ||||
| 25792-11010 |
3E..EL31..USA |
1 | ||
| 25792-11010 |
3E..EL31 |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-11020 |
3E..EL31..USA |
1 | ||
| 25730-11020 |
3E..EL31 |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-11030 |
3E..EL31 |
1 | ||
| 25751-11030 |
3E..EL31..(3FC,5F)..USA W/COOLER |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31..USA NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31..USA NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| 25860-11070 |
3E..EL31..USA |
1 | ||
| Common parts | ||||
| 17342-11080 | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-06002 | ||||
| 90413-07003 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
(8701-8708)3E..USA
CALIFORNIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11230 |
3E..EL31..USA NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 17303-11180 |
3E..EL31..USA NO.2 |
1 | ||
| 17303-11110 |
3E..EL31..USA NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11200 |
3E..EL31..USA NO.4 |
1 | ||
| 17303-11190 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11230 |
3E..EL31..USA NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 17303-11180 |
3E..EL31..USA NO.2 |
1 | ||
| 17303-11110 |
3E..EL31..USA NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11200 |
3E..EL31..USA NO.4 |
1 | ||
| 17303-11190 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11230 |
3E..EL31..USA NO.3 |
1 | ||
| 17303-11120 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 17303-11180 |
3E..EL31..USA NO.2 |
1 | ||
| 17303-11110 |
3E..EL31..USA NO.1 |
1 | ||
| 17303-11250 |
3E..EL31 NO.3 |
1 | ||
| 17303-11180 |
3E..EL31 NO.2 |
1 | ||
| 17303-11190 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17303-11200 |
3E..EL31 NO.4 |
1 | ||
| 17303-11110 |
3E..EL31 NO.1 |
1 | ||
| 17303-11200 |
3E..EL31..USA NO.4 |
1 | ||
| 17303-11190 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15021 |
3E..EL31..TER W/POWER STEERING |
1 | ||
| 17630-15021 |
3E..EL31..(3FC,5F)..USA W/POWER STEERING |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31..USA NO.3(AISIN) |
1 | ||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12046 |
3E..EL31..USA NO.2(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31..USA NO.1(AISIN) |
1 | ||
| 90910-12048 |
3E..EL31..USA NO.2(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12045 |
3E..EL31..USA NO.1(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31..USA NO.3(AISIN) |
1 | ||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12046 |
3E..EL31..USA NO.2(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31..USA NO.1(AISIN) |
1 | ||
| 90910-12048 |
3E..EL31..USA NO.2(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12045 |
3E..EL31..USA NO.1(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12034 |
3E..EL31..USA NO.3(AISIN) |
1 | ||
| 90910-12045 |
3E..EL31 NO.1(DENSO) |
1 | ||
| 90910-12046 |
3E..EL31..USA NO.2(DENSO) |
1 | ||
| 90910-12034 |
3E..EL31 NO.3(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31..USA NO.1(AISIN) |
1 | ||
| 90910-12048 |
3E..EL31..USA NO.2(AISIN) |
1 | ||
| 90910-12047 |
3E..EL31 NO.1(AISIN) |
1 | ||
| 90910-12046 |
3E..EL31 NO.2(DENSO) |
1 | ||
| 90910-12045 |
3E..EL31..USA NO.1(DENSO) |
1 | ||
| 90910-12048 |
3E..EL31 NO.2(AISIN) |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
3E..EL31..3FC..USA |
1 | ||
| 90925-05051 |
3E..EL31..3FC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
3E..EL31 DENSO |
1 | ||
| 90917-11027 |
3E..EL31 AISIN |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03180 |
3E..EL31..3FC |
1 | ||
| 90925-03180 |
3E..EL31..3FC NO.2 |
1 | ||
| 23276 - VALVE, VACUUM CONTROL, NO.2 | ||||
| 90925-03179 |
3E..EL31..3FC..USA W/COOLER |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
3E..EL31..2DS..USA NO.2 |
1 | ||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 90925-01041 |
3E..EL31..3FC NO.2 |
1 | ||
| 90925-01015 |
3E..EL31..USA NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
3E..EL31..2DS..USA NO.2 |
1 | ||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 90925-01041 |
3E..EL31..3FC NO.2 |
1 | ||
| 90925-01015 |
3E..EL31..USA NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
3E..EL31..2DS..USA NO.2 |
1 | ||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 90925-01041 |
3E..EL31..3FC NO.2 |
1 | ||
| 90925-01015 |
3E..EL31..USA NO.1 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
3E..EL31..2DS..USA NO.2 |
1 | ||
| 90925-01015 |
3E..EL31 NO.1 |
1 | ||
| 90925-01041 |
3E..EL31..USA CALIFORNIA SPEC |
1 | ||
| 90925-01041 |
3E..EL31..3FC NO.2 |
1 | ||
| 90925-01015 |
3E..EL31..USA NO.1 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3E..EL31 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-04007 |
3E..EL31..3FC..USA NO.1 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-04007 |
3E..EL31..3FC..USA NO.1 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
3E..EL31..3FC NO.1 |
1 | ||
| 90925-04007 |
3E..EL31..3FC..USA NO.1 |
1 | ||
| 25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL | ||||
| 25730-11020 |
3E..EL31..USA |
1 | ||
| 25730-11020 |
3E..EL31 |
1 | ||
| 25752 - CLAMP, VACUUM CONTROL VALVE, NO.2 | ||||
| 25751-11030 |
3E..EL31 |
1 | ||
| 25751-11030 |
3E..EL31..(3FC,5F)..USA W/COOLER |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31..USA NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25810-11030 |
3E..EL31..USA NO.2 |
1 | ||
| 25810-11010 |
3E..EL31 NO.1 |
1 | ||
| 25810-11020 |
3E..EL31..USA CALIFORNIA SPEC,NO.2 |
1 | ||
| 25810-11030 |
3E..EL31 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-11070 |
3E..EL31 |
1 | ||
| 25860-11070 |
3E..EL31..USA |
1 | ||
| Common parts | ||||
| 17305-11010 | ||||
| 17342-11080 | ||||
| 90339-03002 | ||||
| 90412-06070 | ||||
| 90413-04001 | ||||
| 90413-04006 | ||||
| 90413-06002 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
(8808-8904)3E..3FC ; (8808-8912)3E..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17342-11080 | ||||
| 25792-11010 | ||||
| 90339-03002 | ||||
| 90413-04001 | ||||
| 90413-06002 | ||||
| 90413-07003 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
(8808-8904)3E..3FC ; (8808-8912)3E..MTM
CALIFORNIA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17342-11080 | ||||
| 90339-03002 | ||||
| 90412-06070 | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-04006 | ||||
| 90413-06002 | ||||
| 90445-11059 | ||||
| 90445-11079 | ||||
| 90447-11002 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00082 | ||||
| 90464-00141 | ||||
| 90999-92002 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8408 | ||||
| 8717 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
