Toyota Tercel EL31 FRONT SEAT & SEAT TRACK

Manufacturers Home
Toyota
US
TERCEL
EL31L-NGKBSA (1988)
7101 - FRONT SEAT & SEAT TRACK

EL31L-NGKBSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990

Engine 3E

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-12190	EL31	08/1988 - 08/1989	1
71011-16050	EL31..USA	08/1989 - 09/1990	1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-12190	EL31	08/1988 - 08/1989	1
71012-16020	EL31..USA	08/1989 - 09/1990	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-1674003	EL31..BASE GRAY,TRIM2#	08/1988 - 09/1990	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-1627003	EL31..BASE GRAY,TRIM2#	08/1988 - 09/1990	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-1681003	EL31..BASE GRAY,TRIM2#	08/1988 - 10/1989	1
71073-1G01003	EL31..BASE..USA GRAY,TRIM2#	10/1989 - 09/1990	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-1661003	EL31..BASE GRAY,TRIM2#	08/1988 - 10/1989	1
71074-1669003	EL31..BASE..USA GRAY,TRIM2#	10/1989 - 09/1990	1
71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH
71505-16060	EL31..BASE..USA	10/1989 - 09/1990	1
71505-16040	EL31..BASE	08/1988 - 10/1989	1
71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH
71505-16040	EL31..BASE	08/1988 - 10/1989	1
71505-16060	EL31..BASE..USA	10/1989 - 09/1990	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-16060	EL31	08/1988 - 09/1990	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-16060	EL31	08/1988 - 09/1990	1
71553B - PAD, FRONT SEAT BACK, B
71563-16040	EL31	08/1988 - 09/1990	4
71553B - PAD, FRONT SEAT BACK, B
71563-16040	EL31	08/1988 - 09/1990	4

ILLUST NO. 2 OF 2(8808- )2DS,3DS

Click highlighted areas on diagram

Part #	Description	Period	Qty
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-1607001	EL31..2DS,3DS BLACK,TRIM2#	08/1988 - 08/1989	1
71811-1613001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-1604001	EL31 BLACK,TRIM2#	08/1988 - 08/1989	1
71812-1609001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-1604001	EL31 BLACK,TRIM2#	08/1988 - 08/1989	1
71861-1607001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-1603001	EL31 BLACK,TRIM2#	08/1988 - 08/1989	1
71862-1608001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-16140	EL31..BASE..USA	08/1989 - 09/1990	1
72011-16130	EL31..BASE	08/1988 - 08/1989	1
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-16130	EL31..USA	08/1989 - 09/1990	1
72012-16110	EL31	08/1988 - 08/1989	1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-16090	EL31..5DS;EL31..BASE	08/1988 - 08/1989	1
72021-16120	EL31..BASE..USA	08/1989 - 09/1990	1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-16110	EL31	08/1988 - 08/1989	1
72022-16120	EL31..USA	08/1989 - 09/1990	1
72137 - COVER, SEAT TRACK, OUTER RH
72137-16020	EL31	08/1988 - 09/1990	1
72138 - COVER, SEAT TRACK, OUTER LH
72138-16020	EL31	08/1988 - 09/1990	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-16030	EL31	08/1989 - 09/1990	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-16030	EL31	08/1989 - 09/1990	1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16080	EL31..USA	08/1989 - 09/1990	2
72301-16060	EL31	08/1988 - 08/1989	2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16080	EL31..USA	08/1989 - 09/1990	2
72301-16060	EL31	08/1988 - 08/1989	2
72501C - PIPE SUB-ASSY, RECLINING CONNECTING
72501-16010	EL31..USA	08/1989 - 09/1990	2
72501-12030	EL31	08/1988 - 08/1989	2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-12090C0	EL31 BLACK,TRIM2#	03/1989 - 09/1990	1
72525-1209011	EL31 BLACK,TRIM2#	08/1988 - 03/1989	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-1203011	EL31 BLACK,TRIM2#	08/1988 - 09/1990	1
72553 - COVER, RECLINING PEDAL
72553-12040	EL31..2DS,3DS	08/1988 - 09/1990	1
Common parts
90119-08080
90119-10404
90149-40012
90168-40011
90168-40036
90168-40049
93249-54006

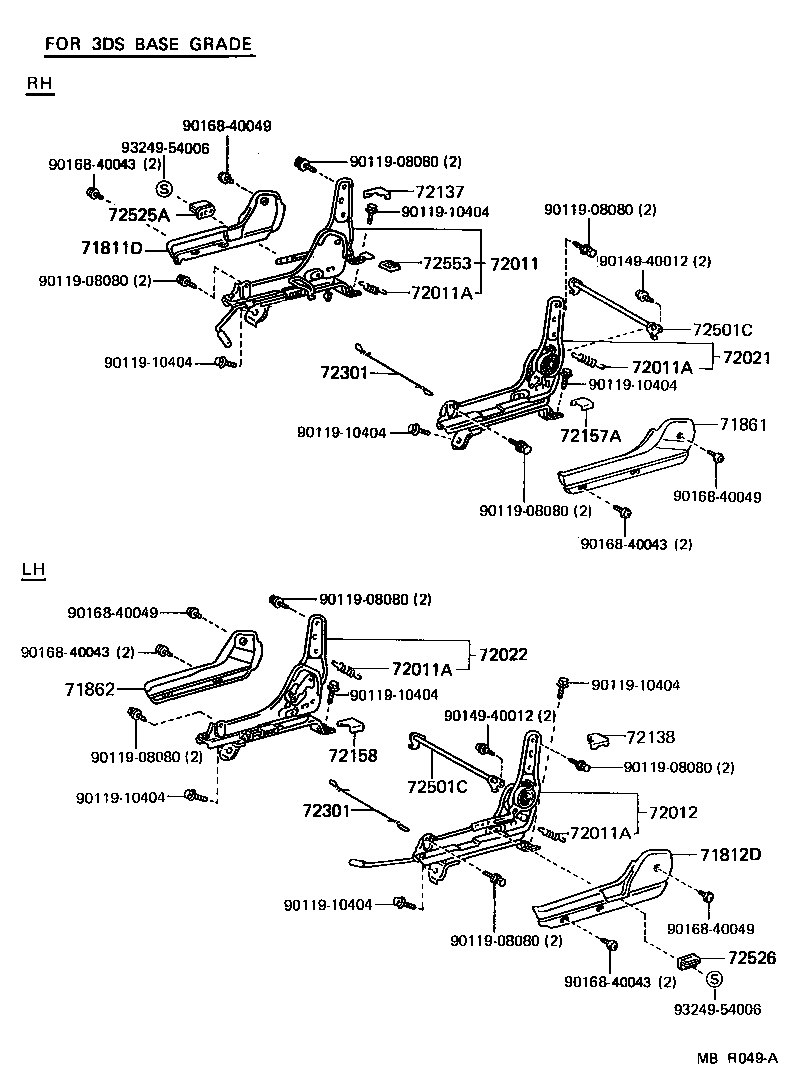

ILLUST NO. 2 OF 2(8808- )BASE

Click highlighted areas on diagram

Part #	Description	Period	Qty
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-1607001	EL31..2DS,3DS BLACK,TRIM2#	08/1988 - 08/1989	1
71811-1613001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-1604001	EL31 BLACK,TRIM2#	08/1988 - 08/1989	1
71812-1609001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-1604001	EL31 BLACK,TRIM2#	08/1988 - 08/1989	1
71861-1607001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-1603001	EL31 BLACK,TRIM2#	08/1988 - 08/1989	1
71862-1608001	EL31..USA NEW BLACK,TRIM2#	08/1989 - 09/1990	1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-16140	EL31..BASE..USA	08/1989 - 09/1990	1
72011-16130	EL31..BASE	08/1988 - 08/1989	1
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039	EL31	08/1988 - 09/1990	2
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-16130	EL31..USA	08/1989 - 09/1990	1
72012-16110	EL31	08/1988 - 08/1989	1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-16090	EL31..5DS;EL31..BASE	08/1988 - 08/1989	1
72021-16120	EL31..BASE..USA	08/1989 - 09/1990	1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-16110	EL31	08/1988 - 08/1989	1
72022-16120	EL31..USA	08/1989 - 09/1990	1
72137 - COVER, SEAT TRACK, OUTER RH
72137-16020	EL31	08/1988 - 09/1990	1
72138 - COVER, SEAT TRACK, OUTER LH
72138-16020	EL31	08/1988 - 09/1990	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-16030	EL31	08/1989 - 09/1990	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-16030	EL31	08/1989 - 09/1990	1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16080	EL31..USA	08/1989 - 09/1990	2
72301-16060	EL31	08/1988 - 08/1989	2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16080	EL31..USA	08/1989 - 09/1990	2
72301-16060	EL31	08/1988 - 08/1989	2
72501C - PIPE SUB-ASSY, RECLINING CONNECTING
72501-16010	EL31..USA	08/1989 - 09/1990	2
72501-12030	EL31	08/1988 - 08/1989	2
72501C - PIPE SUB-ASSY, RECLINING CONNECTING
72501-16010	EL31..USA	08/1989 - 09/1990	2
72501-12030	EL31	08/1988 - 08/1989	2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-12090C0	EL31 BLACK,TRIM2#	03/1989 - 09/1990	1
72525-1209011	EL31 BLACK,TRIM2#	08/1988 - 03/1989	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-1203011	EL31 BLACK,TRIM2#	08/1988 - 09/1990	1
72553 - COVER, RECLINING PEDAL
72553-12040	EL31..2DS,3DS	08/1988 - 09/1990	1
Common parts
90119-08080
90119-10404
90149-40012
90168-40043
90168-40049
93249-54006
