AL25LG-ZWHDCK (1984)
Toyota Tercel
Production
Feb 1984
-
Jan 1988
Engine
3AC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

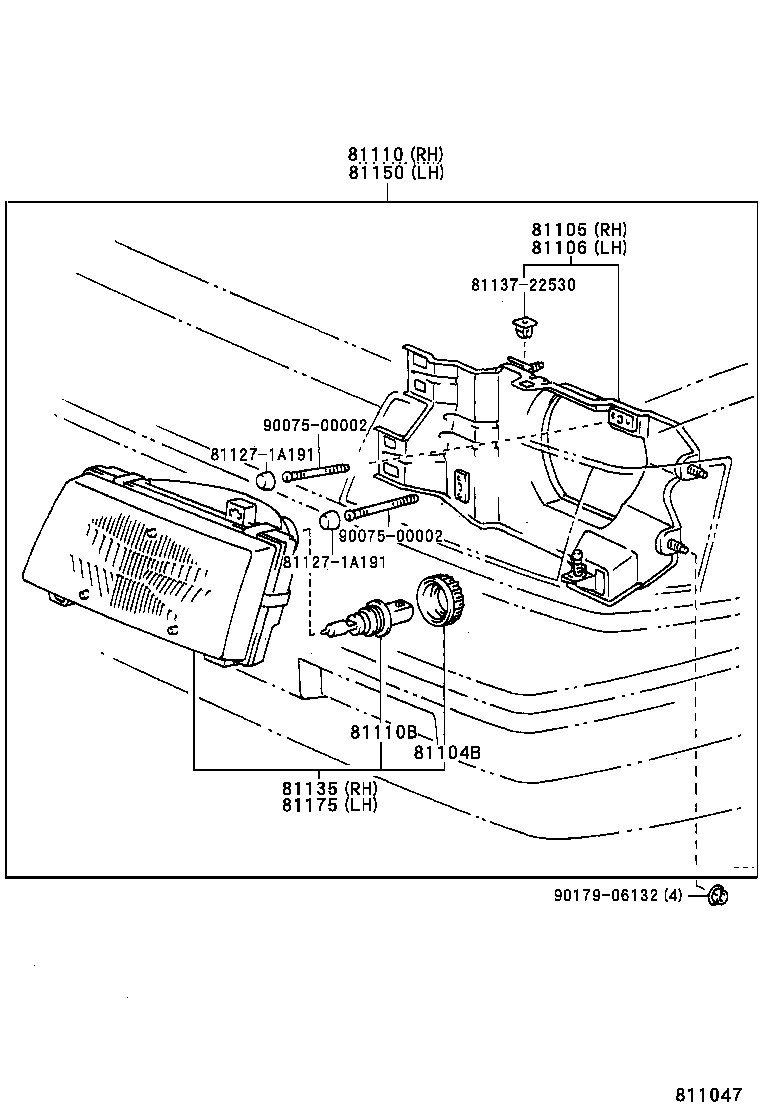

(8608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81104B - LOCKING CAP, HEADLAMP | ||||
| 81104-22520 |
AL2# |
2 | ||
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-16380 |
AL2# |
1 | ||
| 81105-16260 |
AL25 KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-16260 |
AL25 KOITO |
1 | ||
| 81106-16380 |
AL2# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-16380 |
AL2# |
1 | ||
| 81110-80222 |
AL25..DLX KOITO |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13032 |
AL2# 12V 65/45W,*HAL,*WH,12V 65/45W |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-16380 |
AL2# |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-16380 |
AL2# |
1 | ||
| 81150-80219 |
AL25..DLX KOITO |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-16380 |
AL2# |
1 | ||
| Common parts | ||||
| 81127-1A191 | ||||
| 81137-22530 | ||||
| 90075-00002 | ||||
| 90179-06132 | ||||

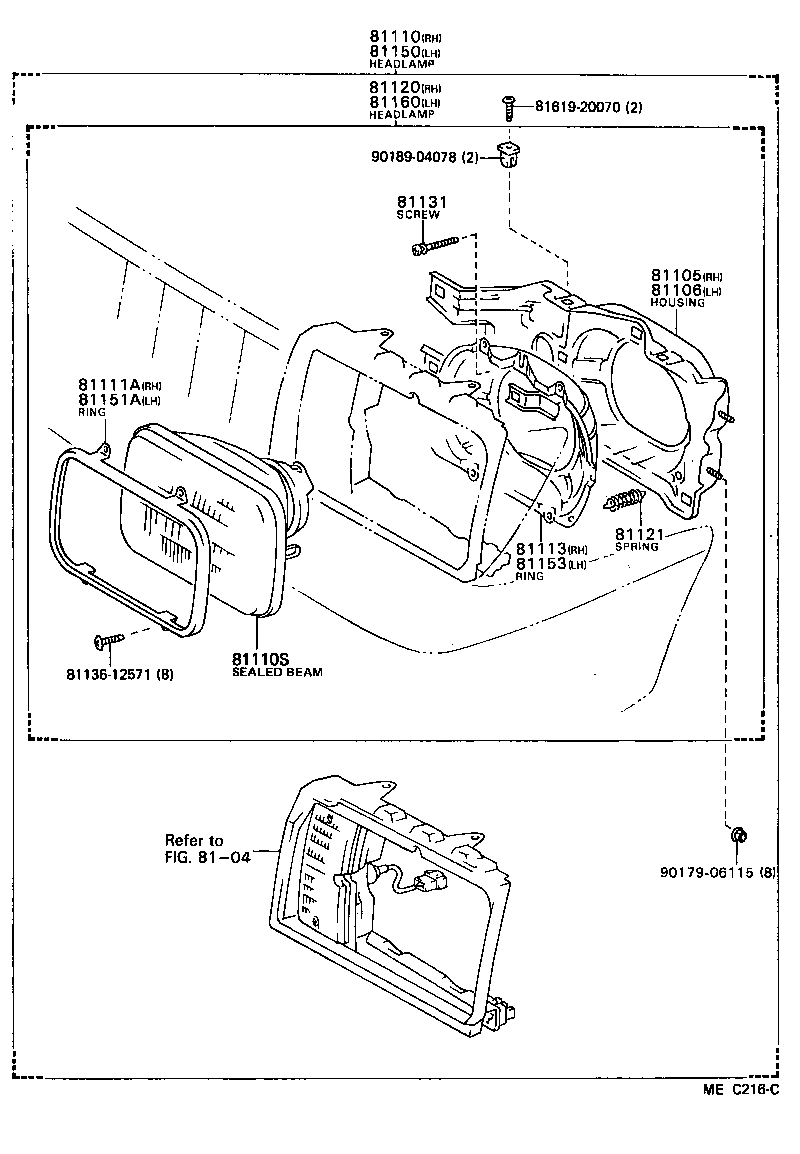

(8208-8608)AL25
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-16380 |
AL2# |
1 | ||
| 81105-16260 |
AL25 KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-16260 |
AL25 KOITO |
1 | ||
| 81106-16380 |
AL2# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-16380 |
AL2# |
1 | ||
| 81110-80222 |
AL25..DLX KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04004 |
AL2#..DLX,STD 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-16020 |
AL2# KOITO |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81153-16020 |
AL2# KOITO |
1 | ||
| 81120 - HEADLAMP SUB-ASSY, RH | ||||
| 81135-16290 |
AL25..DLX |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-16020 |
AL2# KOITO |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-10031 |
AL2# KOITO |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-16380 |
AL2# |
1 | ||
| 81150-80219 |
AL25..DLX KOITO |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-16020 |
AL2# KOITO |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81113-16020 |
AL2# KOITO |
1 | ||
| 81160 - HEADLAMP SUB-ASSY, LH | ||||
| 81175-16290 |
AL25..DLX |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 81619-20070 | ||||
| 90179-06115 | ||||
| 90189-04078 | ||||
| Linked diagrams | ||||
| 8104 | ||||
