AL25LG-ZWHDCK (1984)
Toyota Tercel

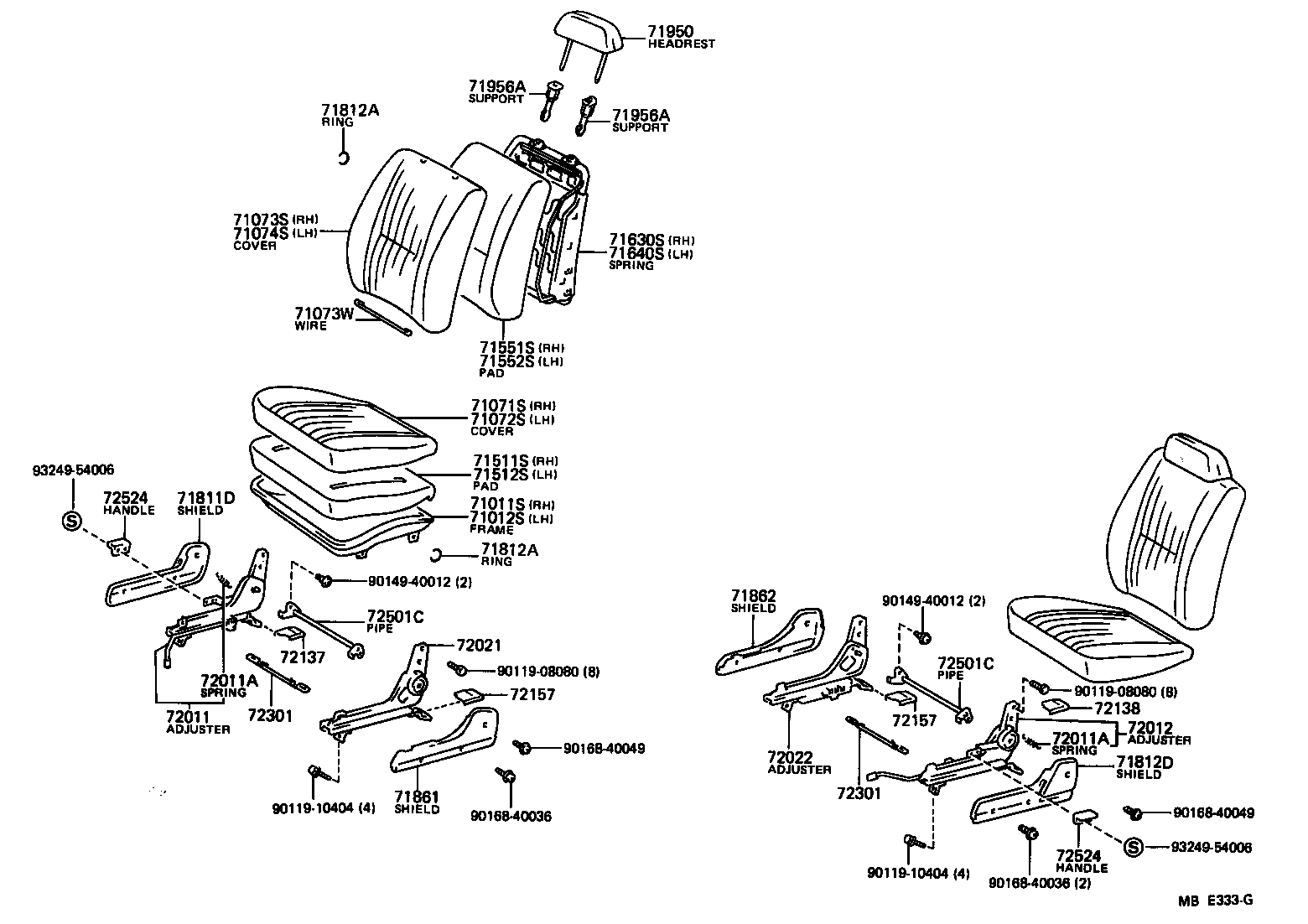

(8208-8608)WG..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16010 |
AL2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16010 |
AL2#..DLX,STD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1643003 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643006 |
AL2#..DLX FB,BROWN,BROWN |
1 | ||
| 71071-1643205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643213 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643305 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643403 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71071-1669005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71071-1643303 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643405 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71071-1669003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71071-1643315 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1643003 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643006 |
AL2#..DLX FB,BROWN,BROWN |
1 | ||
| 71071-1643205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643213 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643305 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643303 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643405 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71071-1669003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71071-1643315 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1669005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71071-1643403 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1647003 |
AL25..DLX..CND FB,GRAY,GRAY |
1 | ||
| 71073-1647006 |
AL25..DLX..CND FB,BROWN,BROWN |
1 | ||
| 71073-1641213 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71073-1641205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71073-1641405 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71073-1641403 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71073-1641503 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71073-1641505 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71073-1641415 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71073-1679005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71073-1679003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-16029 |
AL2# |
4 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1647003 |
AL25..DLX..CND FB,GRAY,GRAY |
1 | ||
| 71073-1647006 |
AL25..DLX..CND FB,BROWN,BROWN |
1 | ||
| 71074-1635013 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71074-1635205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71074-1635215 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71074-1635203 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71074-1635303 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71074-1635005 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71074-1635305 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71074-1654005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71074-1654003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16050 |
AL21;AL25..DLX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16050 |
AL21;AL25..DLX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-16010 |
AL2#..DLX |
1 | ||
| 71551-16080 |
AL25..DLX |
1 | ||
| 71551-16090 |
AL25..DLX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71505-16010 |
AL2#..DLX |
1 | ||
| 71551-16090 |
AL25..DLX |
1 | ||
| 71551-16080 |
AL25..DLX |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16060 |
AL25..DLX |
1 | ||
| 71630-16070 |
AL25..DLX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-16060 |
AL25..DLX |
1 | ||
| 71630-16070 |
AL25..DLX |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1601003 |
AL2# GRAY,GRAY |
1 | ||
| 71811-1601005 |
AL2# BEIGE,BEIGE |
1 | ||
| 71811-1601023 |
AL2# GRAY,GRAY |
1 | ||
| 71811-1601006 |
AL2# BROWN,BROWN |
1 | ||
| 71811-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 71811-1601015 |
AL2#..WG;AL21..5DS BEIGE,DARK BEIGE |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1601006 |
AL2#..DLX,STD BROWN,BROWN |
1 | ||
| 71812-1601005 |
AL2#..DLX,STD BEIGE,BEIGE |
1 | ||
| 71812-1601015 |
AL21..5DS;AL2#..WG..DLX BEIGE,DARK BEIGE |
1 | ||
| 71812-1601003 |
AL2#..DLX,STD GRAY,GRAY |
1 | ||
| 71812-1601013 |
AL2#..DLX,STD GRAY,GRAY |
1 | ||
| 71812-1601001 |
AL2#..DLX BLACK,BLACK |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1601006 |
AL2# BROWN,BROWN |
1 | ||
| 71861-1602005 |
AL2# BEIGE,BEIGE |
1 | ||
| 71861-1601003 |
AL2# GRAY,GRAY |
1 | ||
| 71861-1602001 |
AL2# BLACK,BLACK |
1 | ||
| 71861-1602015 |
AL2#..WG;AL21..5DS BEIGE,DARK BEIGE |
1 | ||
| 71861-1602003 |
AL2# GRAY,GRAY |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1601005 |
AL2# BEIGE,BEIGE |
1 | ||
| 71862-1601003 |
AL2# GRAY,GRAY |
1 | ||
| 71862-1601006 |
AL2# BROWN,BROWN |
1 | ||
| 71862-1602015 |
AL2#..WG;AL21..5DS BEIGE,DARK BEIGE |
1 | ||
| 71862-1601013 |
AL2# GRAY,GRAY |
1 | ||
| 71862-1602001 |
AL2# BLACK,BLACK |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1603006 |
AL25..DLX BROWN,BROWN |
2 | ||
| 71910-1603003 |
AL25..DLX GRAY,GRAY |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006025 |
AL25 W(LOCK),W/LOCK,BEIGE,BEIGE |
2 | ||
| 71930-1006013 |
AL25 W(LOCK),W/LOCK,GRAY,LIGHT GRAY |
2 | ||
| 71931-1001013 |
AL25 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY |
2 | ||
| 71931-1001025 |
AL25 W/O(LOCK),W/O LOCK,BEIGE,BEIGE |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006025 |
AL25 W(LOCK),W/LOCK,BEIGE,BEIGE |
2 | ||
| 71930-1006013 |
AL25 W(LOCK),W/LOCK,GRAY,LIGHT GRAY |
2 | ||
| 71931-1001013 |
AL25 W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY |
2 | ||
| 71931-1001025 |
AL25 W/O(LOCK),W/O LOCK,BEIGE,BEIGE |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16040 |
AL2#..WG;AL21..5DS |
1 | ||
| 72011-16090 |
AL2#..WG;AL21..5DS |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2# |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2# |
4 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16080 |
AL2#..DLX,STD |
1 | ||
| 72012-16030 |
AL2#..DLX,STD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16020 |
AL2#..WG;AL21..5DS |
1 | ||
| 72021-16070 |
AL2#..WG;AL21..5DS |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16030 |
AL2#..DLX,STD |
1 | ||
| 72022-16080 |
AL2#..DLX,STD |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL2# |
2 | ||
| 72301-16040 |
AL2# |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL2# |
2 | ||
| 72301-16040 |
AL2# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-16010 |
AL2# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-16010 |
AL2# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005023 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72526-2004023 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-1203025 |
AL2#..WG;AL21..5DS LH,BEIGE,DARK BEIGE |
1 | ||
| 72525-2005026 |
AL2# RH,BROWN,BROWN |
1 | ||
| 72525-1209015 |
AL2# RH,BEIGE,BEIGE |
1 | ||
| 72526-1203015 |
AL2# LH,BEIGE,BEIGE |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-2004026 |
AL2# LH,BROWN,BROWN |
1 | ||
| 72525-1209025 |
AL2#..WG;AL21..5DS RH,BEIGE,DARK BEIGE |
1 | ||
| 72525-1209011 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72526-1203011 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005023 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72526-2004023 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-1203025 |
AL2#..WG;AL21..5DS LH,BEIGE,DARK BEIGE |
1 | ||
| 72525-2005026 |
AL2# RH,BROWN,BROWN |
1 | ||
| 72525-1209015 |
AL2# RH,BEIGE,BEIGE |
1 | ||
| 72526-1203015 |
AL2# LH,BEIGE,BEIGE |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-2004026 |
AL2# LH,BROWN,BROWN |
1 | ||
| 72525-1209025 |
AL2#..WG;AL21..5DS RH,BEIGE,DARK BEIGE |
1 | ||
| 72525-1209011 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72526-1203011 |
AL2# LH,BLACK,BLACK |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 93249-54006 | ||||

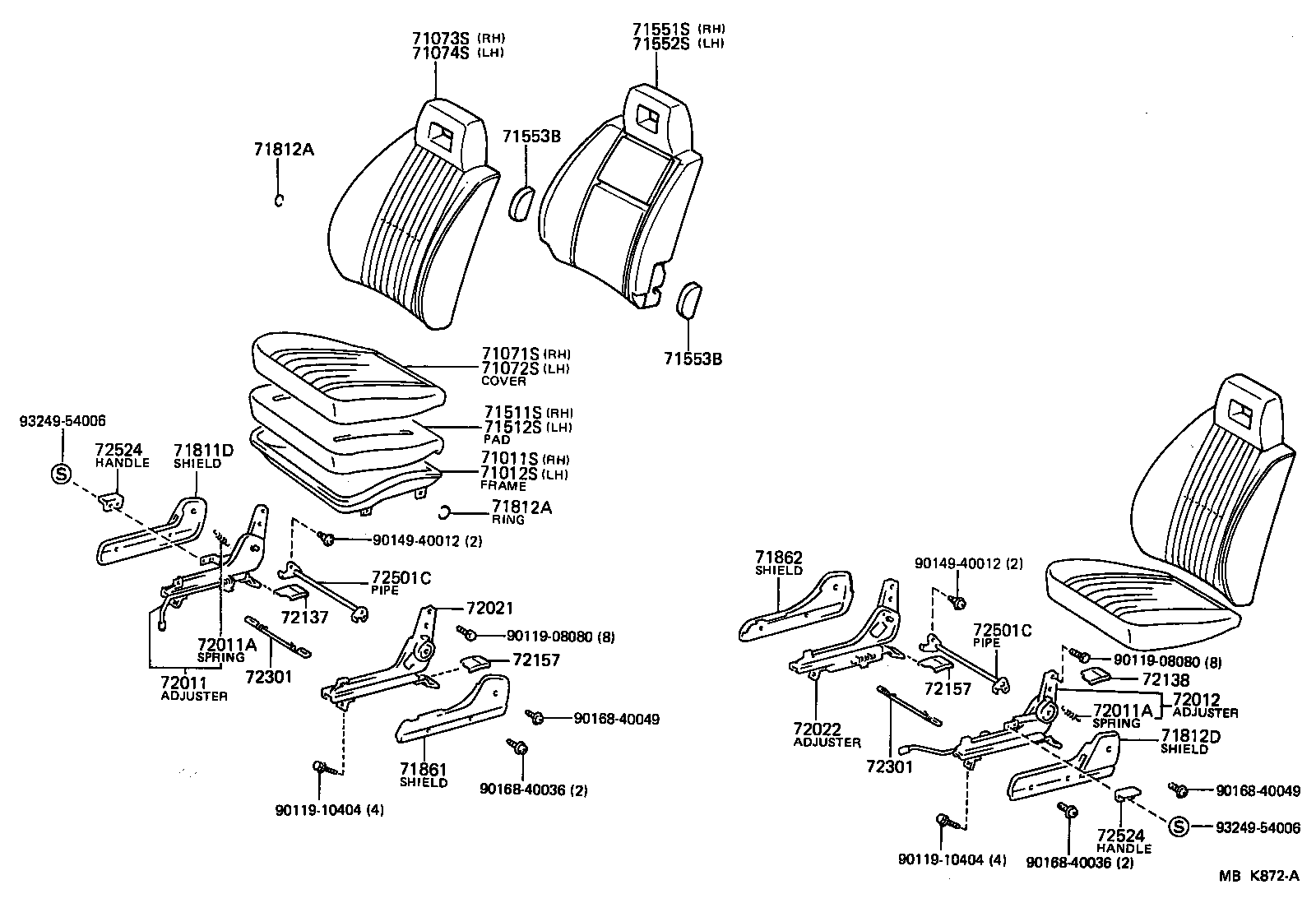

(8608- )DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16010 |
AL2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16010 |
AL2#..DLX,STD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1643003 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643006 |
AL2#..DLX FB,BROWN,BROWN |
1 | ||
| 71071-1643205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643213 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643305 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643403 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71071-1669005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71071-1643303 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643405 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71071-1669003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71071-1643315 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1643003 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643006 |
AL2#..DLX FB,BROWN,BROWN |
1 | ||
| 71071-1643205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643213 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643305 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1643303 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71071-1643405 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71071-1669003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71071-1643315 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71071-1669005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71071-1643403 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1647003 |
AL25..DLX..CND FB,GRAY,GRAY |
1 | ||
| 71073-1647006 |
AL25..DLX..CND FB,BROWN,BROWN |
1 | ||
| 71073-1641213 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71073-1641205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71073-1641405 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71073-1641403 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71073-1641503 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71073-1641505 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71073-1641415 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71073-1679005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71073-1679003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1647003 |
AL25..DLX..CND FB,GRAY,GRAY |
1 | ||
| 71073-1647006 |
AL25..DLX..CND FB,BROWN,BROWN |
1 | ||
| 71074-1635013 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71074-1635205 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71074-1635215 |
AL2#..WG..DLX;AL21..5DS..DLX FB,BEIGE,BEIGE |
1 | ||
| 71074-1635203 |
AL2#..DLX FB,GRAY,GRAY |
1 | ||
| 71074-1635303 |
AL2#..DLX..CND SEMI FB,GRAY,GRAY |
1 | ||
| 71074-1635005 |
AL2#..DLX FB,BEIGE,BEIGE |
1 | ||
| 71074-1635305 |
AL2#..DLX..CND SEMI FB,BEIGE,BEIGE |
1 | ||
| 71074-1654005 |
AL2#..DLX FULL FB,BEIGE,BEIGE |
1 | ||
| 71074-1654003 |
AL2#..DLX FULL FB,GRAY,GRAY |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16050 |
AL21;AL25..DLX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16050 |
AL21;AL25..DLX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-16010 |
AL2#..DLX |
1 | ||
| 71551-16080 |
AL25..DLX |
1 | ||
| 71551-16090 |
AL25..DLX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71505-16010 |
AL2#..DLX |
1 | ||
| 71551-16090 |
AL25..DLX |
1 | ||
| 71551-16080 |
AL25..DLX |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71564-16030 |
AL2#..DLX LH |
2 | ||
| 71563-16040 |
AL2#..DLX |
4 | ||
| 71563-16040 |
AL2#..DLX RH |
2 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71564-16030 |
AL2#..DLX LH |
2 | ||
| 71563-16040 |
AL2#..DLX |
4 | ||
| 71563-16040 |
AL2#..DLX RH |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1601003 |
AL2# GRAY,GRAY |
1 | ||
| 71811-1601005 |
AL2# BEIGE,BEIGE |
1 | ||
| 71811-1601023 |
AL2# GRAY,GRAY |
1 | ||
| 71811-1601006 |
AL2# BROWN,BROWN |
1 | ||
| 71811-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 71811-1601015 |
AL2#..WG;AL21..5DS BEIGE,DARK BEIGE |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1601006 |
AL2#..DLX,STD BROWN,BROWN |
1 | ||
| 71812-1601005 |
AL2#..DLX,STD BEIGE,BEIGE |
1 | ||
| 71812-1601015 |
AL21..5DS;AL2#..WG..DLX BEIGE,DARK BEIGE |
1 | ||
| 71812-1601003 |
AL2#..DLX,STD GRAY,GRAY |
1 | ||
| 71812-1601013 |
AL2#..DLX,STD GRAY,GRAY |
1 | ||
| 71812-1601001 |
AL2#..DLX BLACK,BLACK |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1601006 |
AL2# BROWN,BROWN |
1 | ||
| 71861-1602005 |
AL2# BEIGE,BEIGE |
1 | ||
| 71861-1601003 |
AL2# GRAY,GRAY |
1 | ||
| 71861-1602001 |
AL2# BLACK,BLACK |
1 | ||
| 71861-1602015 |
AL2#..WG;AL21..5DS BEIGE,DARK BEIGE |
1 | ||
| 71861-1602003 |
AL2# GRAY,GRAY |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1601005 |
AL2# BEIGE,BEIGE |
1 | ||
| 71862-1601003 |
AL2# GRAY,GRAY |
1 | ||
| 71862-1601006 |
AL2# BROWN,BROWN |
1 | ||
| 71862-1602015 |
AL2#..WG;AL21..5DS BEIGE,DARK BEIGE |
1 | ||
| 71862-1601013 |
AL2# GRAY,GRAY |
1 | ||
| 71862-1602001 |
AL2# BLACK,BLACK |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16040 |
AL2#..WG;AL21..5DS |
1 | ||
| 72011-16090 |
AL2#..WG;AL21..5DS |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2# |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
AL2# |
4 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16080 |
AL2#..DLX,STD |
1 | ||
| 72012-16030 |
AL2#..DLX,STD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16020 |
AL2#..WG;AL21..5DS |
1 | ||
| 72021-16070 |
AL2#..WG;AL21..5DS |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16030 |
AL2#..DLX,STD |
1 | ||
| 72022-16080 |
AL2#..DLX,STD |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-1601001 |
AL2# BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-1601001 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72158-1601001 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL2# |
2 | ||
| 72301-16040 |
AL2# |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16010 |
AL2# |
2 | ||
| 72301-16040 |
AL2# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-16010 |
AL2# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-16010 |
AL2# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005023 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72526-2004023 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-1203025 |
AL2#..WG;AL21..5DS LH,BEIGE,DARK BEIGE |
1 | ||
| 72525-2005026 |
AL2# RH,BROWN,BROWN |
1 | ||
| 72525-1209015 |
AL2# RH,BEIGE,BEIGE |
1 | ||
| 72526-1203015 |
AL2# LH,BEIGE,BEIGE |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-2004026 |
AL2# LH,BROWN,BROWN |
1 | ||
| 72525-1209025 |
AL2#..WG;AL21..5DS RH,BEIGE,DARK BEIGE |
1 | ||
| 72525-1209011 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72526-1203011 |
AL2# LH,BLACK,BLACK |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005023 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72525-1209003 |
AL2# RH,GRAY,GRAY |
1 | ||
| 72526-2004023 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-1203025 |
AL2#..WG;AL21..5DS LH,BEIGE,DARK BEIGE |
1 | ||
| 72525-2005026 |
AL2# RH,BROWN,BROWN |
1 | ||
| 72525-1209015 |
AL2# RH,BEIGE,BEIGE |
1 | ||
| 72526-1203015 |
AL2# LH,BEIGE,BEIGE |
1 | ||
| 72526-1203003 |
AL2# LH,GRAY,GRAY |
1 | ||
| 72526-2004026 |
AL2# LH,BROWN,BROWN |
1 | ||
| 72525-1209025 |
AL2#..WG;AL21..5DS RH,BEIGE,DARK BEIGE |
1 | ||
| 72525-1209011 |
AL2# RH,BLACK,BLACK |
1 | ||
| 72526-1203011 |
AL2# LH,BLACK,BLACK |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
