AL25LG-ZWHDCK (1984)
Toyota Tercel
Production
Feb 1984
-
Jan 1988
Engine
3AC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

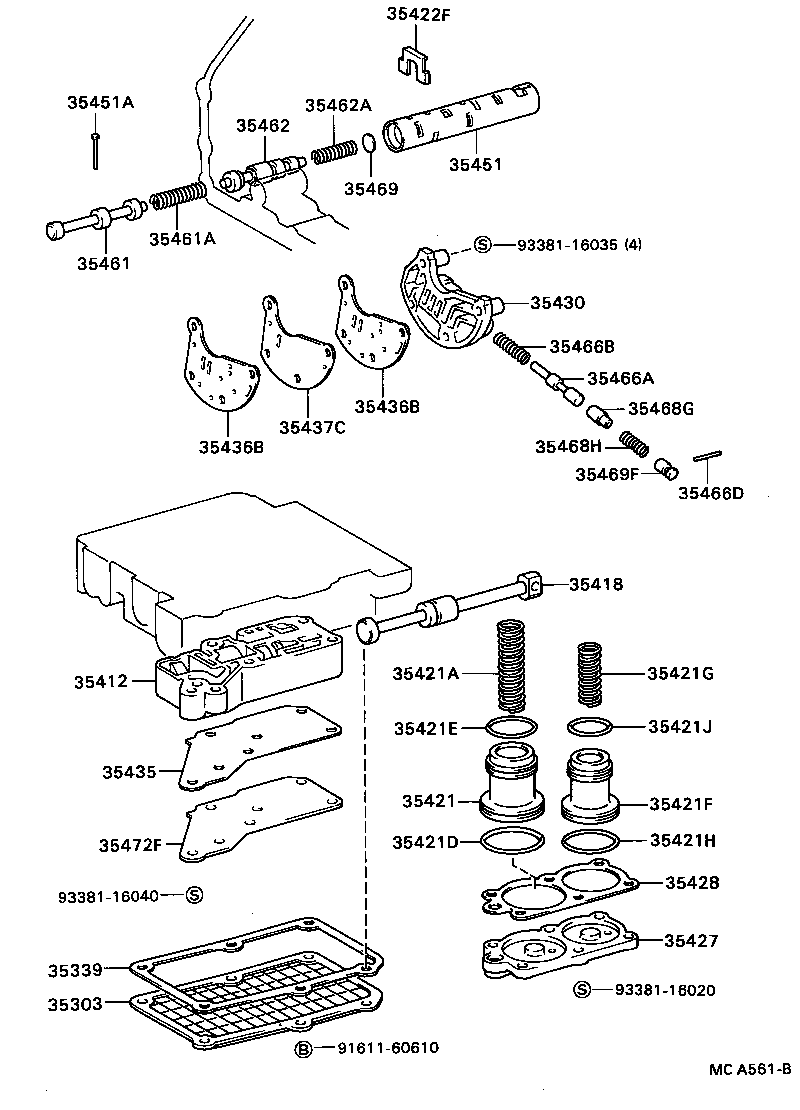

(8402- )AL25..3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-16030 |
AL25..3FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-16010 |
AL2#..3FC |
1 | ||
| 35412 - BODY, FRONT UPPER VALVE | ||||
| 35412-16010 |
AL2#..3FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-16010 |
AL2#..3FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-30020 |
AL2#..3FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-28002 |
AL2#..3FC |
1 | ||
| 90501-23738 |
AL2#..3FC |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
AL2#..3FC |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
AL2#..3FC |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35421-22020 |
AL2#..3FC |
1 | ||
| 35441-30010 |
AL2#..3FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-20676 |
AL2#..3FC |
1 | ||
| 90501-25015 |
AL2#..3FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
AL2#..3FC |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
AL2#..3FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-16010 |
AL2#..3FC |
1 | ||
| 35427 - COVER, ACCUMULATOR | ||||
| 35474-16020 |
AL25..3FC |
1 | ||
| 35428 - GASKET, ACCUMULATOR COVER | ||||
| 35478-16020 |
AL25..3FC |
1 | ||
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-16010 |
AL25..3FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-16010 |
AL2#..3FC |
1 | ||
| 35436B - GASKET, REAR VALVE BODY | ||||
| 35436-16011 |
AL25..3FC |
2 | ||
| 35436B - GASKET, REAR VALVE BODY | ||||
| 35436-16011 |
AL25..3FC |
2 | ||
| 35437C - PLATE, REAR VALVE BODY | ||||
| 35437-16011 |
AL25..3FC |
1 | ||
| 35451 - SLEEVE, THROTTLE VALVE | ||||
| 35451-16010 |
AL2#..3FC |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35461-16010 |
AL2#..3FC |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-09021 |
AL2#..3FC |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-16010 |
AL2#..3FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-06011 |
AL2#..3FC |
1 | ||
| 35466A - VALVE, REAR SERVO CONTROL | ||||
| 35466-16011 |
AL25..3FC |
1 | ||
| 35466B - SPRING, COMPRESSION (FOR REAR SERVO CONTROL VALVE) | ||||
| 90501-07035 |
AL25..3FC |
1 | ||
| 35466D - ROLLER (FOR REAR SERVO CONTROL VALVE) | ||||
| 90361-03044 |
AL25..3FC |
1 | ||
| 35468G - VALVE, REAR SERVO PRESSURE CUT | ||||
| 35468-16010 |
AL25..3FC |
1 | ||
| 35468H - SPRING, COMPRESSION (FOR REAR SERVO PRESSURE CUT VALVE) | ||||
| 90501-06035 |
AL25..3FC |
1 | ||
| 35469 - SPACER (FOR VALVE BODY DOWN SHIFT PLUG) | ||||
| 35469-30010 |
AL2#..3FC |
6 | ||
| 35469F - PLUG, REAR SERVO CONTROL VALVE | ||||
| 35469-16010 |
AL25..3FC |
1 | ||
| 35472F - COVER, FRONT VALVE BODY | ||||
| 35472-16010 |
AL2#..3FC |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 93381-16020 | ||||
| 93381-16035 | ||||
| 93381-16040 | ||||

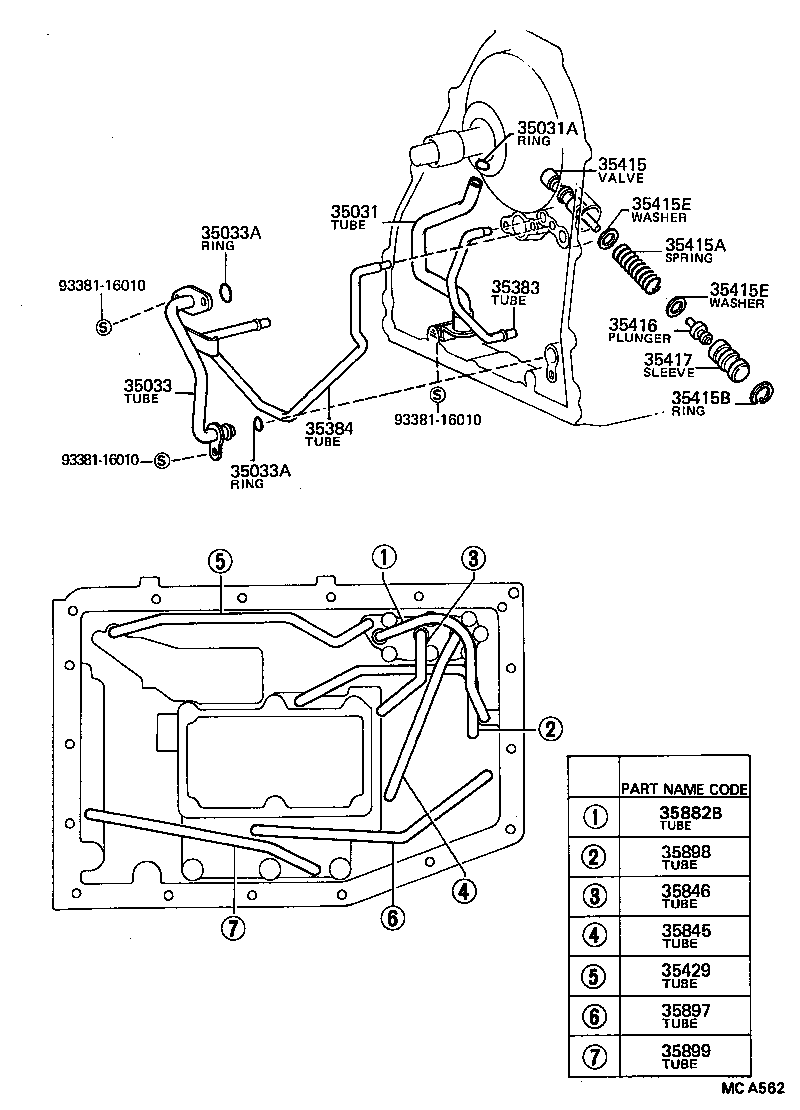

(8402- )AL25..3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35031 - TUBE SUB-ASSY, OIL PUMP SUCTION, NO.1 | ||||
| 35031-16010 |
AL2#..3FC |
1 | ||
| 35031A - RING, O (FOR OIL PUMP SUCTION NO.1 TUBE) | ||||
| 90301-12002 |
AL2#..3FC |
1 | ||
| 35033 - TUBE SUB-ASSY, OIL PUMP DELIVERY | ||||
| 35033-16010 |
AL2#..3FC |
1 | ||
| 35033A - RING, O (FOR OIL PUMP DELIVERY) | ||||
| 90301-10001 |
AL2#..3FC CASE SIDE |
1 | ||
| 90301-12002 |
AL2#..3FC OIL PUMP SIDE |
1 | ||
| 35033A - RING, O (FOR OIL PUMP DELIVERY) | ||||
| 90301-10001 |
AL2#..3FC CASE SIDE |
1 | ||
| 90301-12002 |
AL2#..3FC OIL PUMP SIDE |
1 | ||
| 35383 - TUBE, REVERSE LINE PRESSURE | ||||
| 35383-16010 |
AL2#..3FC |
1 | ||
| 35384 - TUBE, THROTTLE PRESSURE | ||||
| 35384-16010 |
AL2#..3FC |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-16010 |
AL2#..3FC |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16067 |
AL2#..3FC |
1 | ||
| 35415B - RING, HOLE SNAP (FOR PRESSURE REGULATOR VALVE SET) | ||||
| 96151-01900 |
AL2#..3FC |
1 | ||
| 35415E - WASHER, PLATE (FOR PRESSURE REGULATOR VALVE) | ||||
| 90201-08021 |
AL2#..3FC |
4 | ||
| 35415E - WASHER, PLATE (FOR PRESSURE REGULATOR VALVE) | ||||
| 90201-08021 |
AL2#..3FC |
4 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-16020 |
AL25..3FC |
1 | ||
| 35845 - TUBE, RR CLUTCH ACCUMULATOR | ||||
| 35845-16010 |
AL2#..3FC |
1 | ||
| 35846 - TUBE, BRAKE ACCUMULATOR | ||||
| 35846-16010 |
AL2#..3FC |
1 | ||
| 35882B - TUBE, REAR SERVO APPLY | ||||
| 35882-16010 |
AL25..3FC |
1 | ||
| 35897 - TUBE, 1ST & REVERSE BRAKE | ||||
| 35897-16010 |
AL2#..3FC |
1 | ||
| 35898 - TUBE, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35898-16020 |
AL25..3FC |
1 | ||
| 35899 - TUBE, GOVERNOR PRESSURE | ||||
| 35899-16010 |
AL2#..3FC |
1 | ||
| Common parts | ||||
| 93381-16010 | ||||
