AL25LG-ZWHDCK (1984)
Toyota Tercel
Production
Feb 1984
-
Jan 1988
Engine
3AC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8402- )AL25..3FC

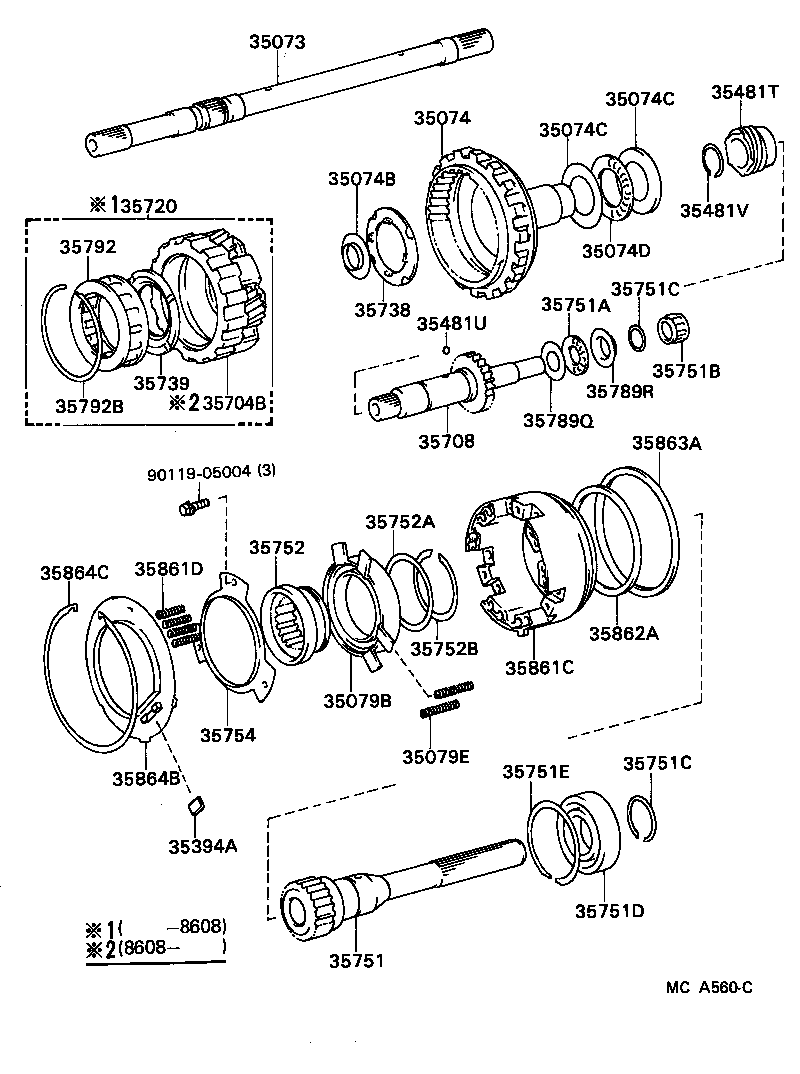

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35073 - SHAFT SUB-ASSY, OUTPUT | ||||
| 35771-16020 |
AL25..3FC |
1 | ||
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-16031 |
AL25..3FC |
1 | ||
| 35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON | ||||
| 35789-22050 |
AL2#..3FC |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-16200 |
AL2#..3FC CASE SIDE |
1 | ||
| 35789-16040 |
AL2#..3FC FLANGE SIDE |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-16200 |
AL2#..3FC CASE SIDE |
1 | ||
| 35789-16040 |
AL2#..3FC FLANGE SIDE |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-32002 |
AL2#..3FC |
1 | ||
| 35079B - GUIDE SUB-ASSY, REAR DRIVE CLUTCH SLEEVE | ||||
| 35079-16010 |
AL25..3FC |
1 | ||
| 35079E - SPRING, COMPRESSION (FOR REAR DRIVE CLUTCH SLEEVE GUIDE | ||||
| 90501-09048 |
AL25..3FC |
6 | ||
| 35394A - MAGNET, OIL CLEANER (FOR REAR SERVO) | ||||
| 35394-30011 |
AL25..3FC |
1 | ||
| 35481T - GEAR, SPEEDMETER DRIVE (ATM) | ||||
| 33481-16030 |
AL25..3FC N=6 |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-05012 |
AL2#..3FC |
2 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 96152-00250 |
AL25..3FC |
1 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-22020 |
AL2#..3FC |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-16010 |
AL25..3FC |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-14010 |
AL2#..3FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-16011 |
AL2#..3FC |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-14010 |
AL2#..3FC |
1 | ||
| 35751 - SHAFT, REAR OUTPUT | ||||
| 35751-16010 |
AL25..3FC |
1 | ||
| 35751A - BEARING, THRUST NEEDLE ROLLER (FOR REAR OUTPUT SHAFT) | ||||
| 90374-18001 |
AL25..3FC |
1 | ||
| 35751B - BEARING, NEEDLE ROLLER (FOR REAR OUTPUT SHAFT) | ||||
| 90364-18003 |
AL25..3FC |
1 | ||
| 35751C - RING, SHAFT SNAP (FOR REAR OUTPUT SHAFT) | ||||
| 90520-22004 |
AL25..3FC OD=26.6,T=1.0 |
1 | ||
| 90520-30200 |
AL25..3FC OD=38,T=1.95 |
1 | ||
| 35751C - RING, SHAFT SNAP (FOR REAR OUTPUT SHAFT) | ||||
| 90520-22004 |
AL25..3FC OD=26.6,T=1.0 |
1 | ||
| 90520-30200 |
AL25..3FC OD=38,T=1.95 |
1 | ||
| 35751D - BEARING, RADIAL BALL (FOR REAR OUTPUT SHAFT) | ||||
| 90363-32014 |
AL25..3FC |
1 | ||
| 35751E - RING, HOLE SNAP (FOR REAR OUTPUT SHAFT) | ||||
| 90521-70002 |
AL25..3FC |
1 | ||
| 35752 - SLEEVE, REAR OUTPUT CLUTCH | ||||
| 35752-16011 |
AL25..3FC |
1 | ||
| 35752A - SPACER (FOR REAR OUTPUT CLUTCH SLEEVE) | ||||
| 90560-58001 |
AL25..3FC |
1 | ||
| 35752B - RING, SHAFT SNAP (FOR REAR OUTPUT CLUTCH SLEEVE) | ||||
| 90520-55001 |
AL25..3FC |
1 | ||
| 35754 - RETAINER, SLEEVE GUIDE | ||||
| 35754-16010 |
AL25..3FC |
1 | ||
| 35789Q - RACE, THRUST BEARING (FOR INTERMEDIATE SHAFT) | ||||
| 35789-16210 |
AL25..3FC |
1 | ||
| 35789R - RACE, THRUST BEARING (FOR REAR OUTPUT SHAFT) | ||||
| 35789-16230 |
AL25..3FC |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30010 |
AL2#..3FC |
1 | ||
| 35792-30011 |
AL2#..3FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
AL2#..3FC |
1 | ||
| 35861C - PISTON, REAR SERVO | ||||
| 35861-16010 |
AL25..3FC |
1 | ||
| 35861D - SPRING, COMPRESSION (FOR REAR SERVO PISTON) | ||||
| 90501-10082 |
AL25..3FC |
12 | ||
| 35862A - RING, REAR PISTON OIL SEAL, INNER | ||||
| 35862-16010 |
AL25..3FC |
1 | ||
| 35863A - RING, REAR PISTON OIL SEAL, OUTER | ||||
| 35863-16010 |
AL25..3FC |
1 | ||
| 35864B - SEAT, REAR SERVO PISTON RETURN SPRING | ||||
| 35864-16010 |
AL25..3FC |
1 | ||
| 35864C - RING, HOLE SNAP (FOR RR SERVO PISTON RETURN SPRING SEAT | ||||
| 90521-99016 |
AL25..3FC |
1 | ||
| Common parts | ||||
| 90119-05004 | ||||
