AL25LG-ZWFQCK (1982)

Toyota Tercel

Production Aug 1982 - Jan 1988
Engine 3AC
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )AL25

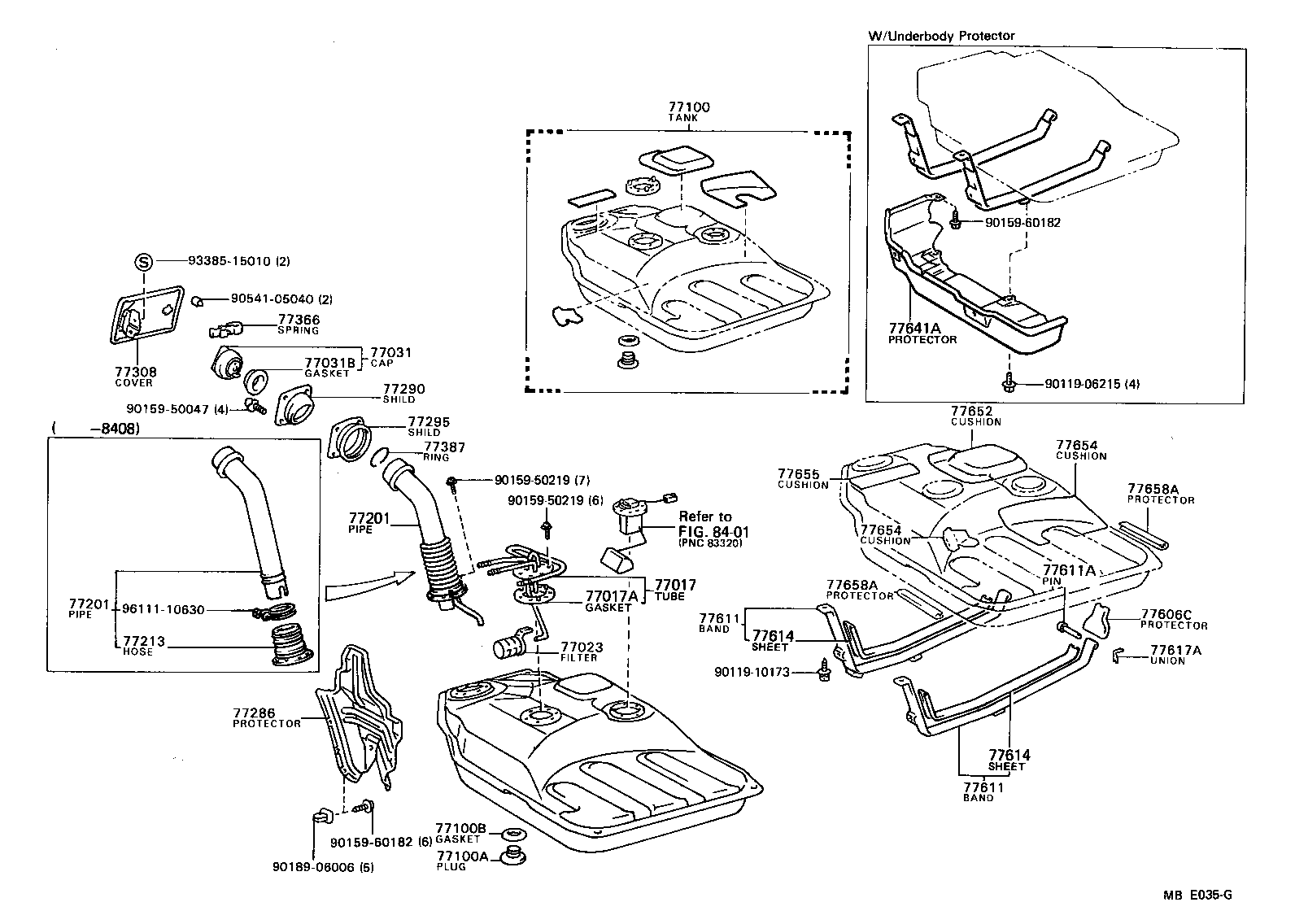

Click highlighted areas on diagram

diagram 77017 77017A 77023 77031 77031B 77100 77100A 77100B 77201 77201 77213 77286 77290 77295 77308 77366 77387 77606C 77611 77611 77611A 77614 77614 77617A 77641A 77652 77654 77654 77655 77658A 77658A 8401 9011906215 9011910173 9015950047 9015950219 9015950219 9015960182 9015960182 9018906006 9054105040 9338515010 9611110630
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-12240

AL25

 1
77017-16080

AL25

 1
77017-12210

AL25

 1
77017-12380

AL25

 1
77017-16050

AL25

 1
77017A - GASKET, FUEL TANK VENT
77178-10010

AL2#

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

AL2#

 1
77031 - CAP ASSY, FUEL TANK
77310-16010

AL2#

 1
77310-16011

AL2#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-16010

AL2#

 1
77100 - TANK ASSY, FUEL
77001-19205

AL25

 1
77001-19385

AL25

 1
77100A - PLUG(FOR FUEL TANK)
90341-24036

AL25

 1
77100B - GASKET(FOR FUEL TANK)
90430-24047

AL25

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-16100

AL25

 1
77201-12300

AL25

 1
77201-16050

AL25

 1
77201-16070

AL25

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-16100

AL25

 1
77201-12300

AL25

 1
77201-16050

AL25

 1
77201-16070

AL25

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-14090

AL25

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
77277-16040

AL25

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-16010

AL2#

 1
77295 - SHIELD, FUEL FILLER PIPE
77293-16020

AL25

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-16070

AL25

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-24010

AL2#

 1
77387 - RING, FUEL INLET BOX
77391-16030

AL25

 1
77606C - PROTECTOR, FUEL TANK, NO.2
77642-12010

AL25

 2
77611 - BAND, FUEL TANK
77602-12030

AL25

LH

 1
77602-16040

AL25

LH

 1
77601-16050

AL25

RH

 1
77611 - BAND, FUEL TANK
77602-12030

AL25

LH

 1
77602-16040

AL25

LH

 1
77601-16050

AL25

RH

 1
77611A - PIN (FOR FUEL TANK BAND)
90240-08020

AL2#

 2
77614 - SEAT, FUEL TANK BAND
77654-12021

AL25

 2
77614 - SEAT, FUEL TANK BAND
77654-12021

AL25

 2
77617A - UNION, AUXILIARY FUEL BAND
77617-12010

AL2#

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-16030

AL25

 1
77652 - CUSHION, FUEL TANK, NO.1
77651-12041

AL25

150 X 150

 1
77651-16050

AL25

150 X 150

 1
77654 - CUSHION, FUEL TANK, NO.2
77652-12041

AL25

220 X 155

 1
77655-12021

AL25

210 X 210

 1
77654 - CUSHION, FUEL TANK, NO.2
77652-12041

AL25

220 X 155

 1
77655-12021

AL25

210 X 210

 1
77655 - CUSHION, FUEL TANK, NO.3
77653-12031

AL25

200 X 90

 1
77658A - PROTECTOR, FUEL TANK EDGE, NO.1
77658-12010

AL25

 2
77658A - PROTECTOR, FUEL TANK EDGE, NO.1
77658-12010

AL25

 2
Common parts
90119-06215
90119-10173
90159-50047
90159-50219
90159-60182
90189-06006
90541-05040
93385-15010
96111-10630
Linked diagrams

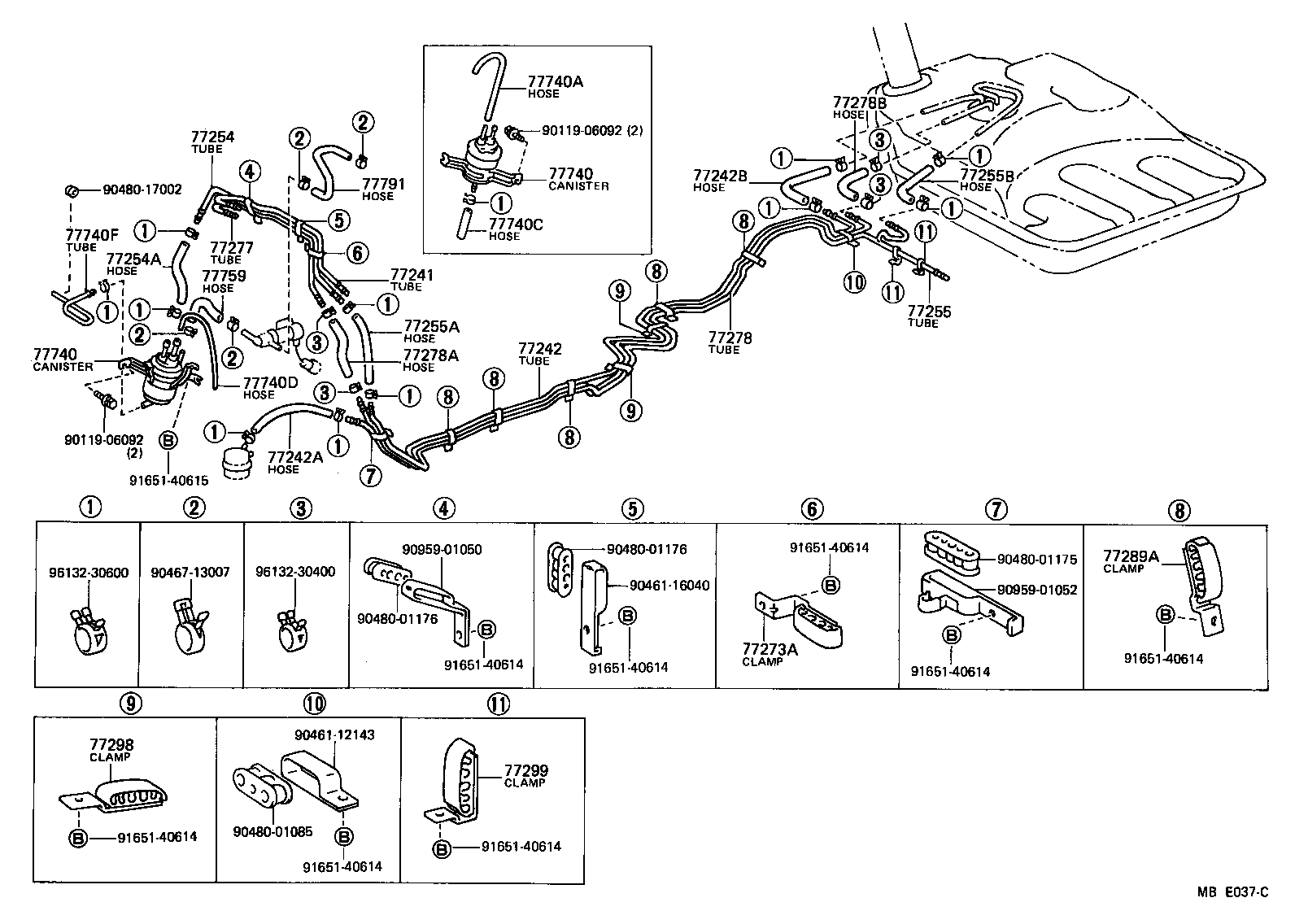

8401

(8208- )AL25

Click highlighted areas on diagram

diagram 77241 77242 77242A 77242B 77254 77254A 77255 77255A 77255B 77273A 77277 77278 77278A 77278B 77289A 77298 77299 77740 77740 77740A 77740C 77740D 77740F 77759 77791 9011906092 9011906092 9046112143 9046116040 9046713007 9048001085 9048001175 9048001176 9048001176 9048017002 9095901050 9095901052 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140615 9613230400 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77252-16060

AL2#

 1
77242 - TUBE, FUEL MAIN, NO.2
77251-16080

AL25

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95333-06020

AL2#

*H,L=200

 1
95332-06020

AL2#

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

AL25

*H,L=200

 1
95333-06020

AL25

*H,L=200

 1
77254 - TUBE, FUEL EMISSION, NO.1
77262-16020

AL2#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77279-16010

AL2#

 1
77255 - TUBE, FUEL EMISSION, NO.2
77261-16060

AL25

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95333-06020

AL2#

*H,L=160

 1
95332-06020

AL2#

*H,L=160

 1
77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)
95332-06020

AL25

*H,L=200

 1
95333-06020

AL25

*H,L=200

 1
77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6
77273-16010

AL25

 1
77277 - TUBE, FUEL RETURN, NO.1
77256-16020

AL2#

 1
77278 - TUBE, FUEL RETURN, NO.2
77255-16080

AL25

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-04020

AL2#

*H,L=130

 1
95333-04013

AL2#

*H,L=130

 1
95333-04020

AL2#

*H,L=130

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95332-04020

AL25

*H,L=180

 1
95333-04020

AL25

*H,L=180,*H,L=180

 1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-16010

AL25

 5
77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4
77298-16020

AL25

 2
77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5
77299-16020

AL25

 2
77740 - CANISTER ASSY, CHARCOAL
77740-16061

AL25;AL21..USA;AL21..(3FC,4F)..CND..3AC

 1
77740-16070

AL21..3A;AL2#..WG..CND

 1
77740-16070

AL25..6F..CND

 1
77740 - CANISTER ASSY, CHARCOAL
77740-16061

AL25;AL21..USA;AL21..(3FC,4F)..CND..3AC

 1
77740-16070

AL21..3A;AL2#..WG..CND

 1
77740-16070

AL25..6F..CND

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

AL21..3A;AL2#..WG..CND

*H,L=300,MARK=#*

 1
95411-19930

AL21..3A;AL2#..WG..MTM..CND

*H,L=300,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90445-12122

AL21..3A;AL2#..WG..CND

L=220

 1
90445-12121

AL2#..MTM..(DLX,SR5)..CND

L=200

 1
90445-12122

AL21..3A;AL2#..WG..MTM..CND

L=220

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-16041

AL25

 1
77759 - HOSE, CHARCOAL CANISTER
77759-16011

AL25;AL21..USA;AL21..(3FC,4F)..CND..3AC

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-16031

AL25

 1
Common parts
90119-06092
90461-12143
90461-16040
90467-13007
90480-01085
90480-01175
90480-01176
90480-17002
90959-01050
90959-01052
91651-40614
91651-40615
96132-30400
96132-30600
