AL25LG-ZWFDCK (1982)
Toyota Tercel
Production
Aug 1982
-
Jan 1988
Engine
3AC
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )DLX,SR5

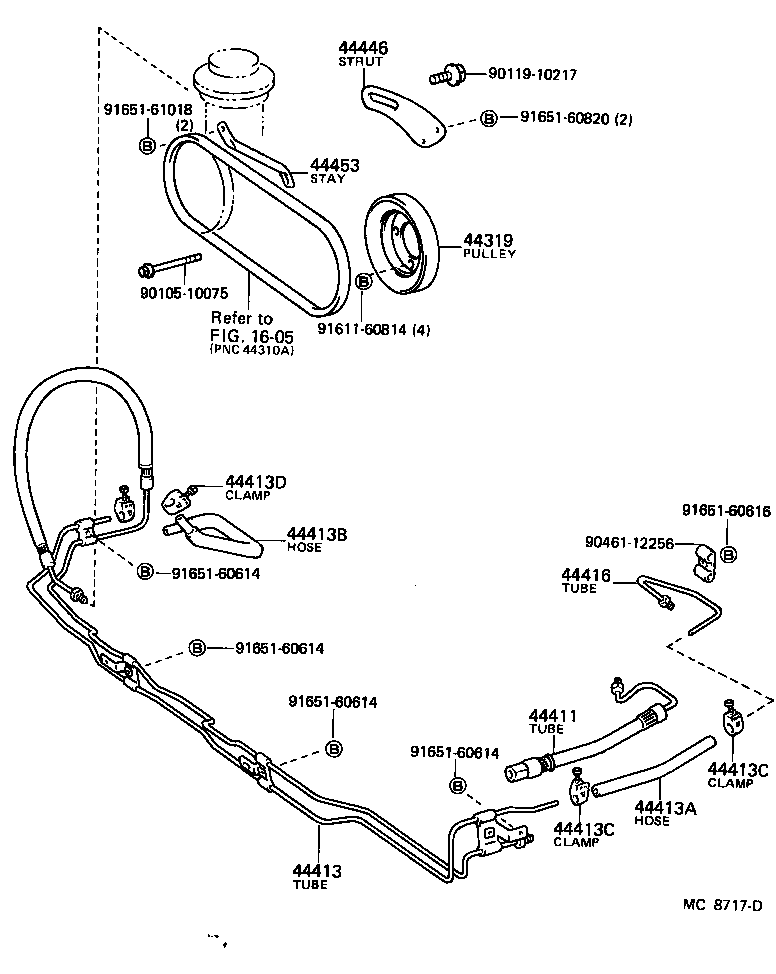

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-12011 |
AL2#..DLX,SR5 |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44413-16010 |
AL2#..DLX,SR5 |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44410-16011 |
AL2#..DLX,SR5 |
1 | ||
| 44410-16010 |
AL2#..DLX,SR5 |
1 | ||
| 44413A - HOSE(FOR RETURN TUBE OUTLET) | ||||
| 44412-16020 |
AL2#..DLX,SR5 |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 44412-16030 |
AL2#..DLX,SR5 |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
AL2#..DLX,SR5 |
2 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
AL2#..DLX,SR5 |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
AL2#..DLX,SR5 |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-16020 |
AL2#..DLX,SR5 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-16010 |
AL2#..DLX,SR5 |
1 | ||
| 44453 - STAY, PUMP, FRONT | ||||
| 44453-16011 |
AL2#..DLX,SR5 |
1 | ||
| 44453-16010 |
AL2#..DLX,SR5 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-10217 | ||||
| 90461-12256 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60820 | ||||
| 91651-61018 | ||||
| Linked diagrams | ||||
| 1605 | ||||
