AL21L-ZHMRCA (1983)

Toyota Tercel

Production Aug 1983 - Aug 1986
Engine 3AC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8608)3A

Click highlighted areas on diagram

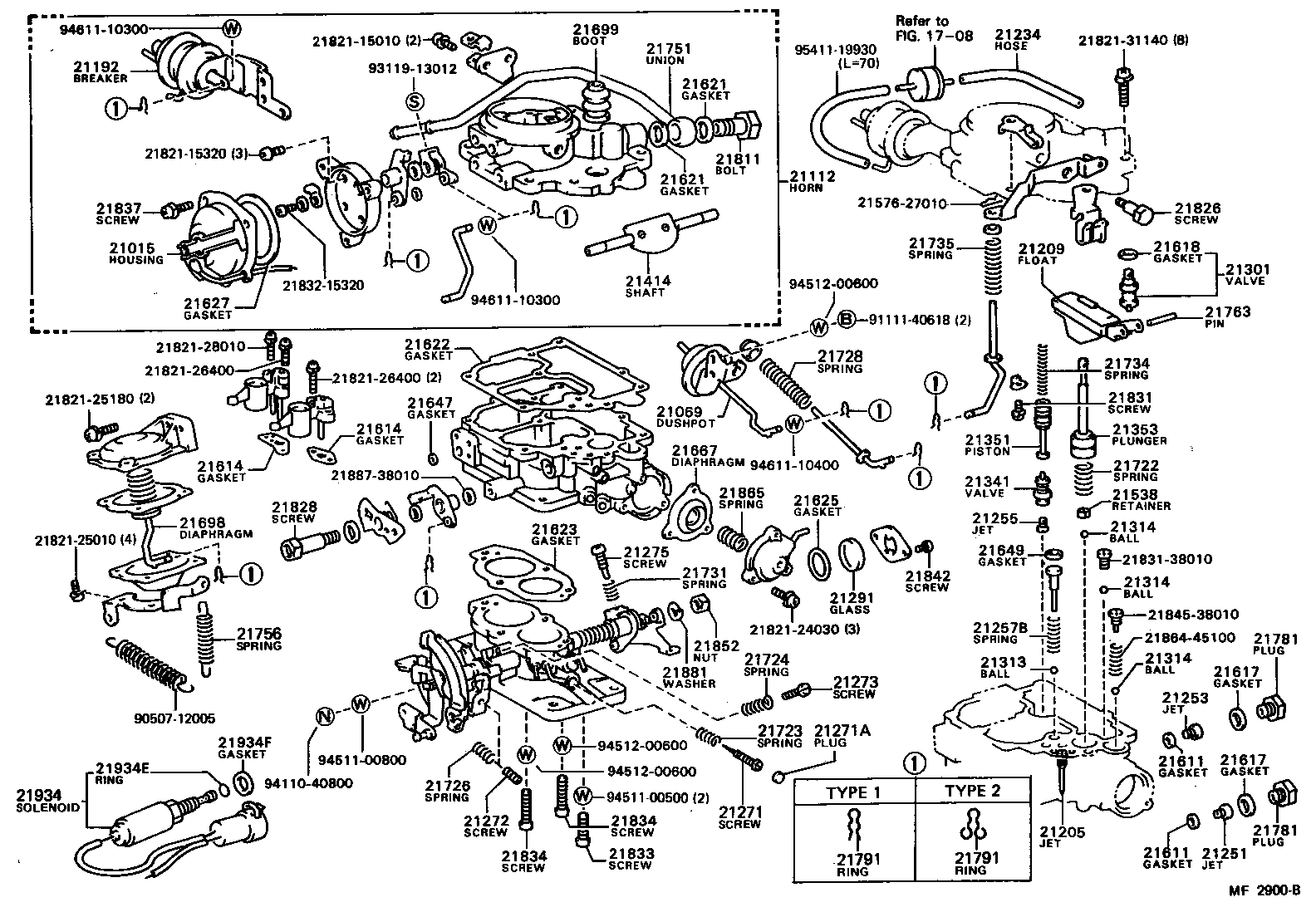

diagram 1708 21015 21069 21112 21192 21205 21209 21234 21251 21253 21255 21257B 21271 21271A 21272 21273 21275 21291 21301 21313 21314 21314 21314 21341 21351 21353 21414 21538 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21623 21625 21627 21647 21649 21667 21698 21699 21722 21723 21724 21726 21728 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21811 2182115010 2182115320 2182124030 2182125010 2182125180 2182126400 2182126400 2182128010 2182131140 21826 21828 21831 2183138010 2183215320 21833 21834 21834 21837 21842 2184538010 21852 2186445100 21865 21881 2188738010 21934 21934E 21934F 9050712005 9111140618 9311913012 9411040800 9451100500 9451100800 9451200600 9451200600 9451200600 9461110300 9461110300 9461110400 9541119930
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-15050

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21069 - DASH POT SUB-ASSY
21069-15290

3A..AL21

 1
21112 - HORN, AIR
21112-15290

3A..AL21

 1
21112-15340

3AC..AL21..SED

 1
21112-16010

3AC..AL21;3AC..AL25..USA

 1
21192 - BREAKER
21192-15290

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21205 - JET SUB-ASSY, SLOW
21205-26391

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21205-27040

3AC..AL21..SED

 1
21209 - FLOAT SUB-ASSY
21209-15020

3A#..AL2#

 1
21234 - PIPE OR HOSE
21249-13090

3A..AL21;3AC..AL25..CND

 1
21251 - JET, 1ST MAIN
90999-41101

3AC..AL21;3AC..AL25..USA

ID=1.01

 1
90999-41102

3AC..AL21..USA;3AC..AL25..3FC;3AC..AL25..6F..USA;3AC..AL21..STD..CND

ID=1.02

 1
90999-41099

3A..AL21;3AC..AL2#..WG..MTM..CND

ID=0.99

 1
90999-41103

3AC..AL21..SED

ID=1.03

 1
21253 - JET, 2ND MAIN
90999-42159

3A#..AL2#

ID=1.59

 1
21255 - JET, POWER
90999-43044

3AC..AL21;3AC..AL25..USA

ID=0.44

 1
90999-43040

3AC..AL21..SED

ID=0.40

 1
90999-43060

3A..AL21;3AC..AL2#..WG..MTM..CND

ID=0.60

 1
21257B - SPRING(FOR PUMP JET)
21864-26020

3A#..AL2#

 1
21271 - SCREW, IDLE ADJUSTING
21271-15160

3A#..AL2#

 1
21271A - PLUG, IDLE LIMIT
21785-13210

3A#..AL2#

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21828-25180

3A#..AL2#

 1
21273 - SCREW, THROTTLE ADJUSTING
21842-28090

3AC..AL21..SED

 1
21844-33010

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21275 - SCREW, ADJUSTING
21842-28090

3A#..AL2#

 1
21291 - GLASS, LEVEL GAGE
21291-34320

3A#..AL2#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-15160

3A#..AL2#

 1
21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21313-11020

3A#..AL2#

 1
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-11020

3A#..AL2#

 3
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-11020

3A#..AL2#

 3
21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314-11020

3A#..AL2#

 3
21341 - VALVE, POWER
21304-30010

3A#..AL2#

 1
21351 - PISTON, POWER
21351-33080

3A#..AL2#

 1
21353 - PLUNGER, PUMP
21353-33010

3A#..AL2#

 1
21414 - SHAFT, CHOKE
21054-15050

3A..AL21

 1
21538 - RETAINER, BALL CHECK
21538-31010

3A#..AL2#

 1
21611 - GASKET, MAIN JET
21611-22010

3A#..AL2#

 2
21611 - GASKET, MAIN JET
21611-22010

3A#..AL2#

 2
21614 - GASKET, VENTURI
21614-33010

3A#..AL2#

1ST

 1
21614-33080

3A#..AL2#

2ND

 1
21614 - GASKET, VENTURI
21614-33010

3A#..AL2#

1ST

 1
21614-33080

3A#..AL2#

2ND

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

3A#..AL2#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

3A#..AL2#

 2
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

3A#..AL2#

 1
21621 - GASKET, UNION NIPPLE
21633-24030

3A#..AL2#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

3A#..AL2#

 2
21622 - GASKET, AIR HORN
21622-26510

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21622-15081

3AC..AL21..SED

 1
21623 - GASKET, BODY FLANGE
21623-25180

3A#..AL2#

 1
21625 - GASKET, LEVEL GAGE
21655-60200

3A#..AL2#

 1
21627 - GASKET, COIL HOUSING
21627-28090

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21647 - GASKET, DIAPHRAGM HOUSING CAP
21649-33080

3A#..AL2#

 1
21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21641-33011

3A#..AL2#

 1
21667 - DIAPHRAGM
21667-38310

3A#..AL2#

 1
21698 - DIAPHRAGM
21669-15230

3A#..AL2#

 1
21669-15230

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21669-15320

3AC..AL21..SED

 1
21699 - BOOT(FOR PUMP PLUNGER)
21699-28150

3A#..AL2#

 1
21722 - SPRING, PUMP DAMPING
21722-22010

3A#..AL2#

 1
21723 - SPRING, IDLE ADJUSTING
21723-15160

3A#..AL2#

 1
21724 - SPRING, THROTTLE ADJUSTING
21723-21030

3A#..AL2#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21723-21030

3A#..AL2#

 1
21728 - SPRING, THROTTLE VALVE RETURN
21756-25181

3A#..AL2#

 1
21756-15340

3AC..AL21..SED

 1
21756-25181

3A..AL21

 1
21731 - SPRING, DASH POT OR POSITIONER ADJUSTING
21723-21030

3A#..AL2#

 1
21734 - SPRING, POWER PISTON
21734-18010

3AC..AL21;3AC..AL25..USA

 1
21734-33080

3A..AL21;3AC..AL25..CND

 1
21735 - SPRING, PUMP ARM
21735-21032

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21735-11150

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21735-15270

3AC..AL21..SED

 1
21751 - UNION, NIPPLE
21894-16010

3A#..AL2#

 1
21756 - SPRING, BACK(FOR THROTTLE SHAFT)
21756-15080

3A#..AL2#

 1
21763 - PIN, FLOAT LEVER
21763-26350

3A#..AL2#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

3A#..AL2#

 2
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

3A#..AL2#

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3A#..AL2#

TYPE 1

 9
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

3A#..AL2#

TYPE 1

 9
21811 - BOLT, UNION NIPPLE
21811-11060

3A#..AL2#

 1
21826 - SCREW, PUMP ARM SET
21826-31012

3A#..AL2#

 1
21828 - SCREW, 1ST IDLE SET
21845-15230

3A#..AL2#

 1
21831 - SCREW, POWER PISTON STOP
21821-15060

3A#..AL2#

 1
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21833-33010

3A#..AL2#

 2
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31140

3A#..AL2#

W/HOLE

 1
21844-26400

3A#..AL2#

 1
21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834-31140

3A#..AL2#

W/HOLE

 1
21844-26400

3A#..AL2#

 1
21837 - SCREW, COIL HOUSING SET
21821-25010

3A..AL21;3AC..AL2#..WG..MTM..CND

 1
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

3A#..AL2#

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

3A#..AL2#

 1
21865 - SPRING
21865-15230

3A#..AL2#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

3A#..AL2#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-15290

3A..AL21

 1
21062-16010

3AC..AL2#

NO.1

 1
21072-16010

3AC..AL2#

NO.2

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

3A#..AL2#

 2
21934F - GASKET
21649-38010

3A#..AL2#

 2
Common parts
21576-27010
21821-15010
21821-15320
21821-24030
21821-25010
21821-25180
21821-26400
21821-28010
21821-31140
21831-38010
21832-15320
21845-38010
21864-45100
21887-38010
90507-12005
91111-40618
93119-13012
94110-40800
94511-00500
94511-00800
94512-00600
94611-10300
94611-10400
95411-19930
Linked diagrams
1708

(8208-8608)3AC..AL21..SED ; (8208-8708)3AC..AL25..3FC ; (8208-8708)3AC..AL21..WG..U

Click highlighted areas on diagram

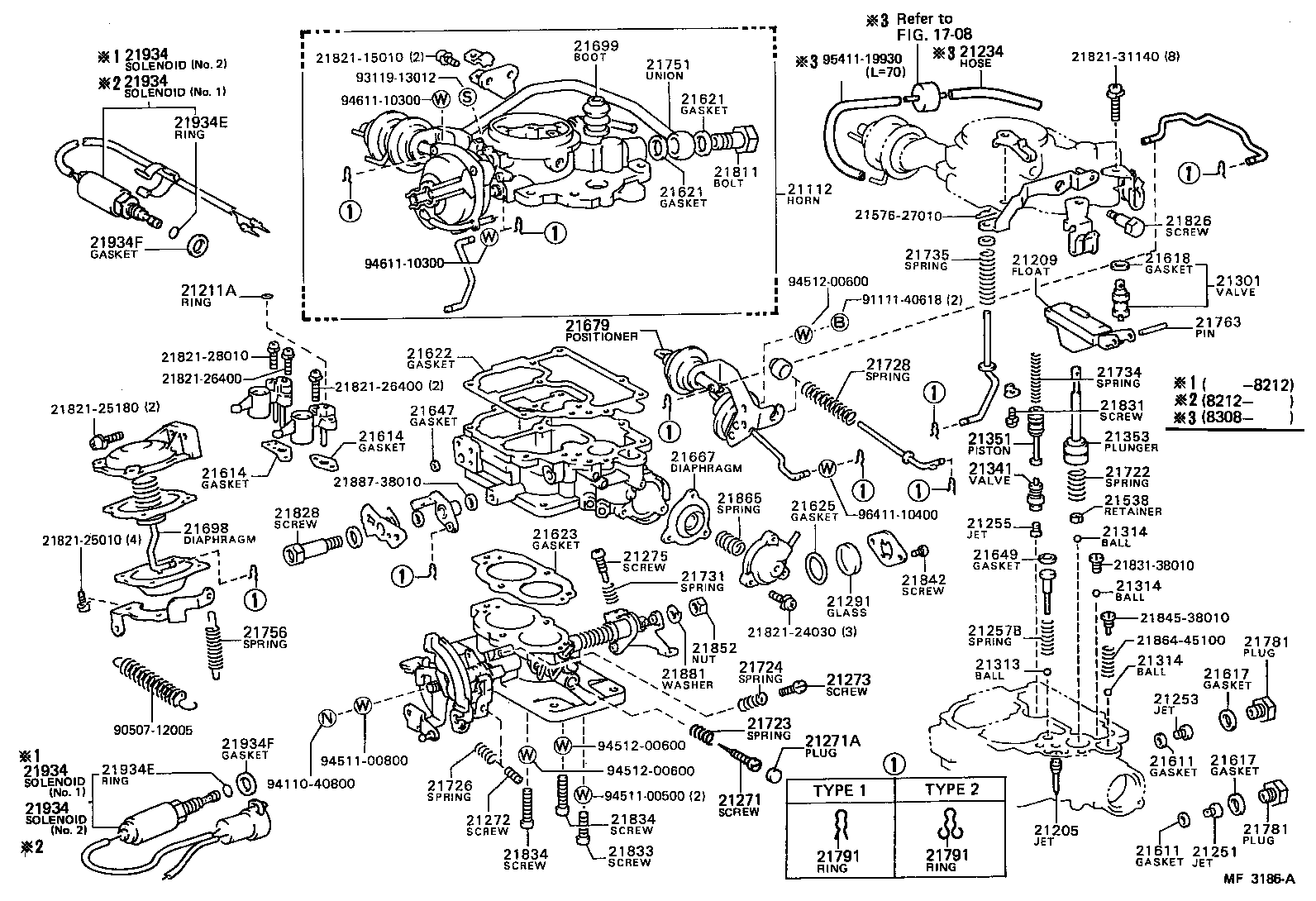

diagram 1708 21112 21205 21209 21211A 21234 21251 21253 21255 21257B 21271 21271A 21272 21273 21275 21291 21301 21313 21314 21314 21314 21341 21351 21353 21538 2157627010 21611 21611 21614 21614 21617 21617 21618 21621 21621 21622 21623 21625 21647 21649 21667 21679 21698 21699 21722 21723 21724 21726 21728 21731 21734 21735 21751 21756 21763 21781 21781 21791 21791 21811 2182115010 2182124030 2182125010 2182125180 2182126400 2182126400 2182128010 2182131140 21826 21828 21831 2183138010 21833 21834 21834 21842 2184538010 21852 2186445100 21865 21881 2188738010 21934 21934 21934 21934 21934E 21934E 21934F 21934F 9050712005 9111140618 9311913012 9411040800 9451100500 9451100800 9451200600 9451200600 9451200600 9461110300 9461110300 9541119930 9641110400
