AL21L-ZHMDSK (1982)

Toyota Tercel

Production Aug 1982 - Aug 1986
Engine 3A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

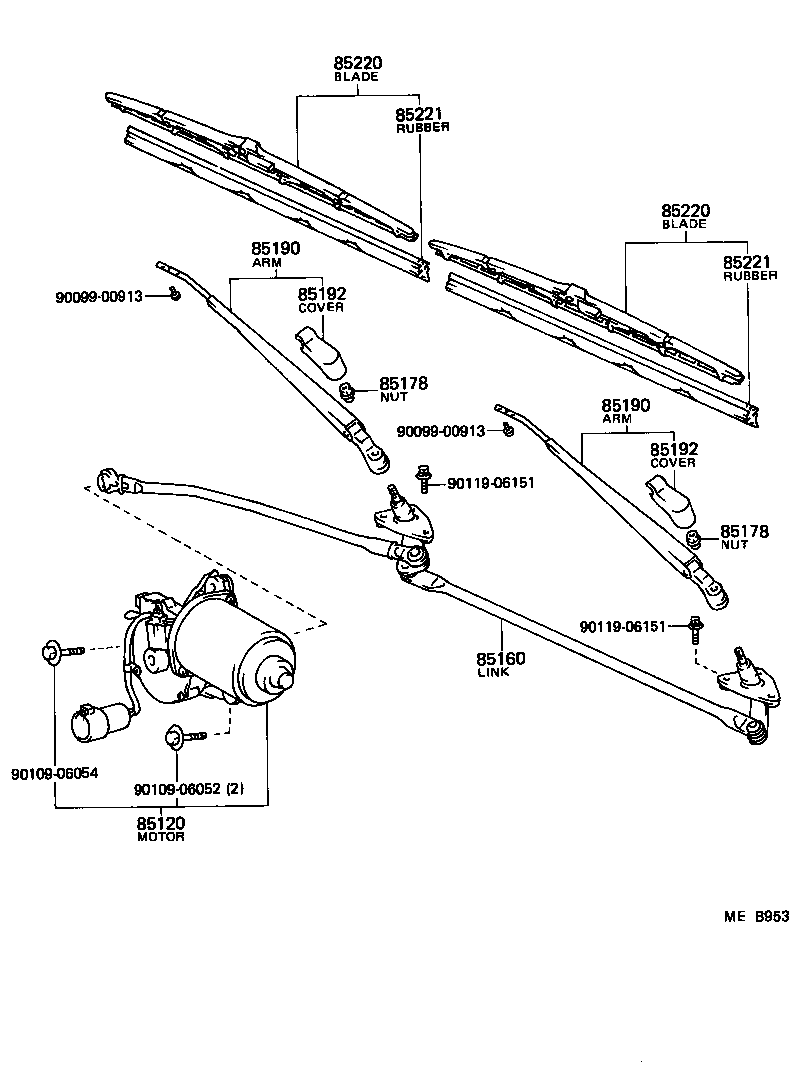

Click highlighted areas on diagram

diagram 85120 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9010906052 9010906054 9011906151 9011906151
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-16130

AL2#..CND

 1
85120-16131

AL2#..CND

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-16140

AL2#..CND

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

AL2#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

AL2#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-16100

AL2#

LH

 1
85210-16020

AL2#

RH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-16100

AL2#

LH

 1
85210-16020

AL2#

RH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-16020

AL2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-16020

AL2#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16150

AL2#

RH

 1
85220-16140

AL2#

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16150

AL2#

RH

 1
85220-16140

AL2#

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-12120

AL2#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-12120

AL2#

 2
Common parts
90099-00913
90109-06052
90109-06054
90119-06151
