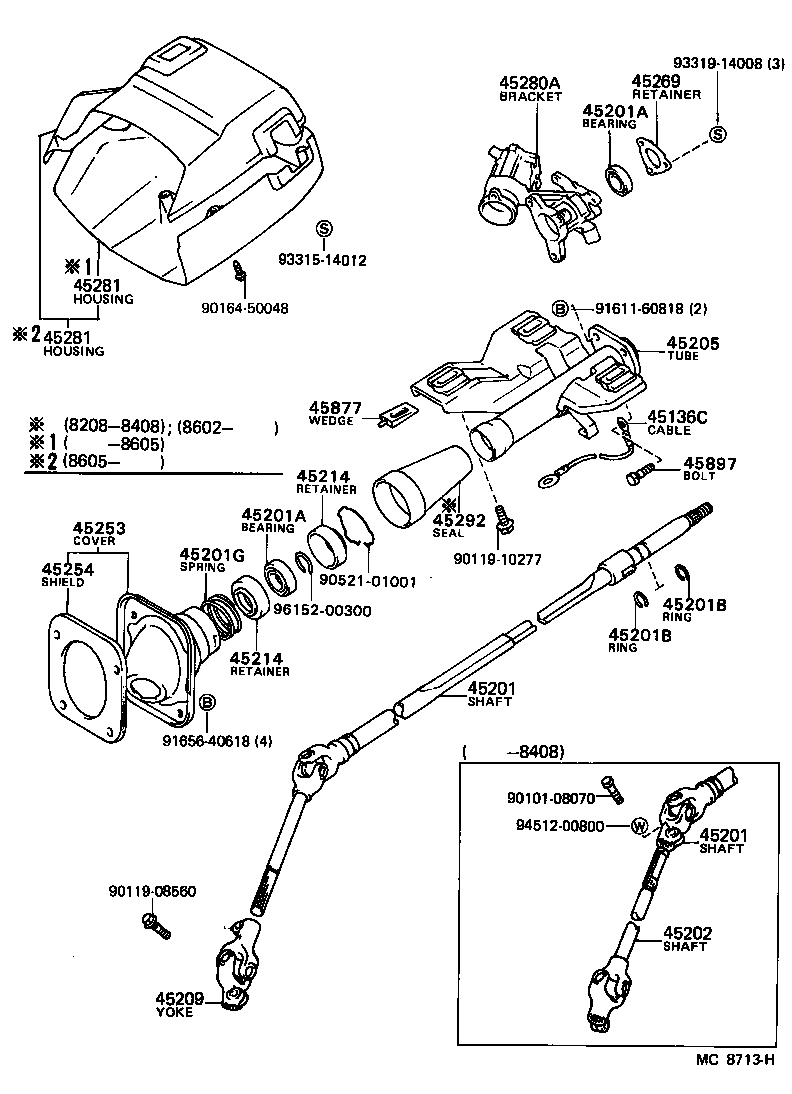

AL21L-ZHMDSK (1982)
Toyota Tercel
(8208-8408) ; (8408- )SED..DLX,STD ; (8408-)DLX..CND..3AC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07204 |
AL2# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16050 |
AL2# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16050 |
AL2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL2# UPR |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL2# UPR |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL2# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL2# T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL2# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL2# T=1.20,T=1.2 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
AL2# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-16040 |
AL2# |
1 | ||
| 45202-16060 |
AL2#..DLX,SR5 W/POWER STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16040 |
AL2# |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-16040 |
AL2# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-16020 |
AL2# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AL2# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16030 |
AL2# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1603002 |
AL21 LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604002 |
AL21 UPR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604006 |
AL2# UPR,BROWN,BROWN |
1 | ||
| 45286-1604003 |
AL2# UPR,GRAY,GRAY |
1 | ||
| 45287-1603003 |
AL2# LWR,GRAY,GRAY |
1 | ||
| 45286-1604005 |
AL2#..(DLX,STD)..CND UPR,BEIGE,BEIGE |
1 | ||
| 45287-1603005 |
AL2#..(DLX,STD)..CND LWR,BEIGE,BEIGE |
1 | ||
| 45287-1603006 |
AL2# LWR,BROWN,BROWN |
1 | ||
| 45286-1604002 |
AL21..SED..(DLX,STD)..CND UPR,DARK WINE,RED/MAROON |
1 | ||
| 45287-1603002 |
AL21..SED..(DLX,STD)..CND LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1605002 |
AL21..SED..DLX UPR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45286-1605005 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1605003 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690302 |
AL21..SED..CND DARK WINE,RED/MAROON |
1 | ||
| 45287-1603013 |
AL2#..(DLX,STD)..CND LWR,GRAY,GRAY |
1 | ||
| 45287-1605002 |
AL21..SED..DLX LWR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45287-1605005 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1604013 |
AL2#..(DLX,STD)..CND UPR,GRAY,GRAY |
1 | ||
| 45287-1605003 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690402 |
AL21..SED..DLX W/TILT STEERING,DARK WINE,RED/MAROON |
1 | ||
| 45286-1690315 |
AL21..DLX..3A BEIGE,DARK BEIGE |
1 | ||
| 45286-1690313 |
AL2#..(DLX,STD)..CND GRAY,GRAY |
1 | ||
| 45286-1690403 |
AL2#..DLX,SR5 W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1603002 |
AL21 LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604002 |
AL21 UPR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604006 |
AL2# UPR,BROWN,BROWN |
1 | ||
| 45286-1604003 |
AL2# UPR,GRAY,GRAY |
1 | ||
| 45287-1603003 |
AL2# LWR,GRAY,GRAY |
1 | ||
| 45286-1604005 |
AL2#..(DLX,STD)..CND UPR,BEIGE,BEIGE |
1 | ||
| 45287-1603005 |
AL2#..(DLX,STD)..CND LWR,BEIGE,BEIGE |
1 | ||
| 45287-1603006 |
AL2# LWR,BROWN,BROWN |
1 | ||
| 45286-1604002 |
AL21..SED..(DLX,STD)..CND UPR,DARK WINE,RED/MAROON |
1 | ||
| 45287-1603002 |
AL21..SED..(DLX,STD)..CND LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1605002 |
AL21..SED..DLX UPR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45286-1605005 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1605003 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690302 |
AL21..SED..CND DARK WINE,RED/MAROON |
1 | ||
| 45287-1603013 |
AL2#..(DLX,STD)..CND LWR,GRAY,GRAY |
1 | ||
| 45287-1605002 |
AL21..SED..DLX LWR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45287-1605005 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1604013 |
AL2#..(DLX,STD)..CND UPR,GRAY,GRAY |
1 | ||
| 45287-1605003 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690402 |
AL21..SED..DLX W/TILT STEERING,DARK WINE,RED/MAROON |
1 | ||
| 45286-1690315 |
AL21..DLX..3A BEIGE,DARK BEIGE |
1 | ||
| 45286-1690313 |
AL2#..(DLX,STD)..CND GRAY,GRAY |
1 | ||
| 45286-1690403 |
AL2#..DLX,SR5 W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
AL2# |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
AL2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AL2# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08560 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90521-01001 | ||||
| 91611-60818 | ||||
| 91656-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||

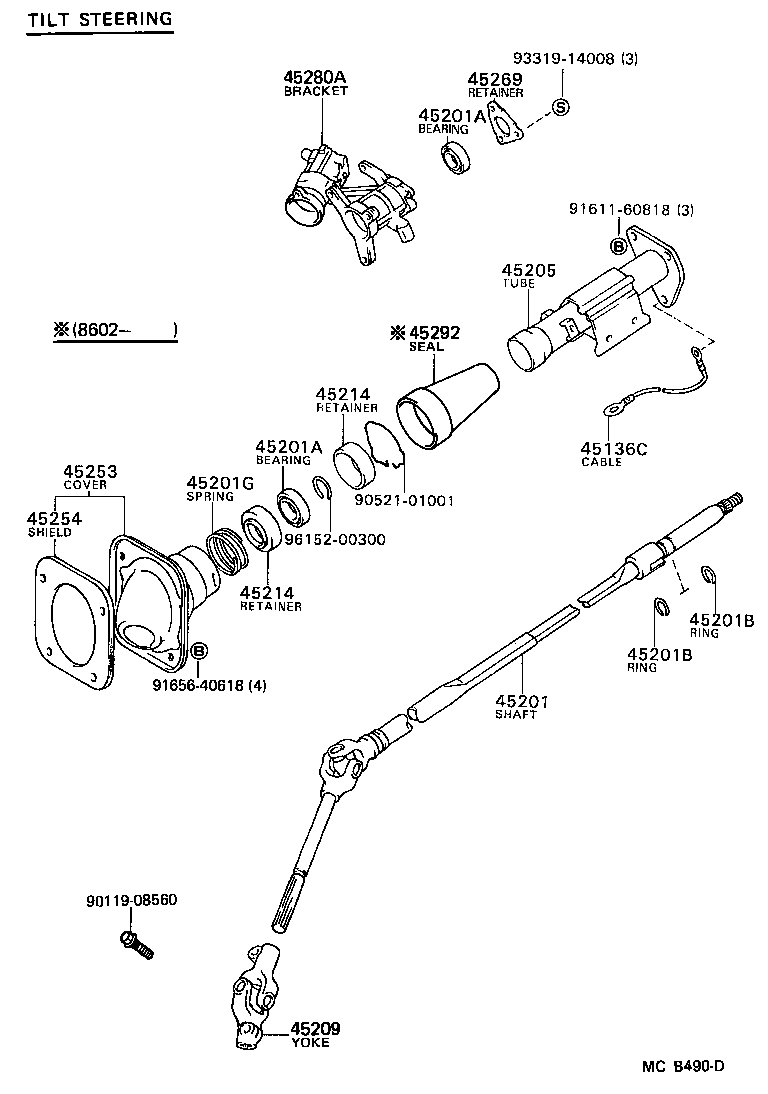

(8408- )DLX,SR5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07204 |
AL2# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16050 |
AL2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL2# UPR |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL2# UPR |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL2# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL2# T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL2# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL2# T=1.20,T=1.2 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
AL2# |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16040 |
AL2# |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-16040 |
AL2# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-16020 |
AL2# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AL2# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16030 |
AL2# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
AL2# |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90521-01001 | ||||
| 91611-60818 | ||||
| 91656-40618 | ||||
| 93319-14008 | ||||
| 96152-00300 | ||||

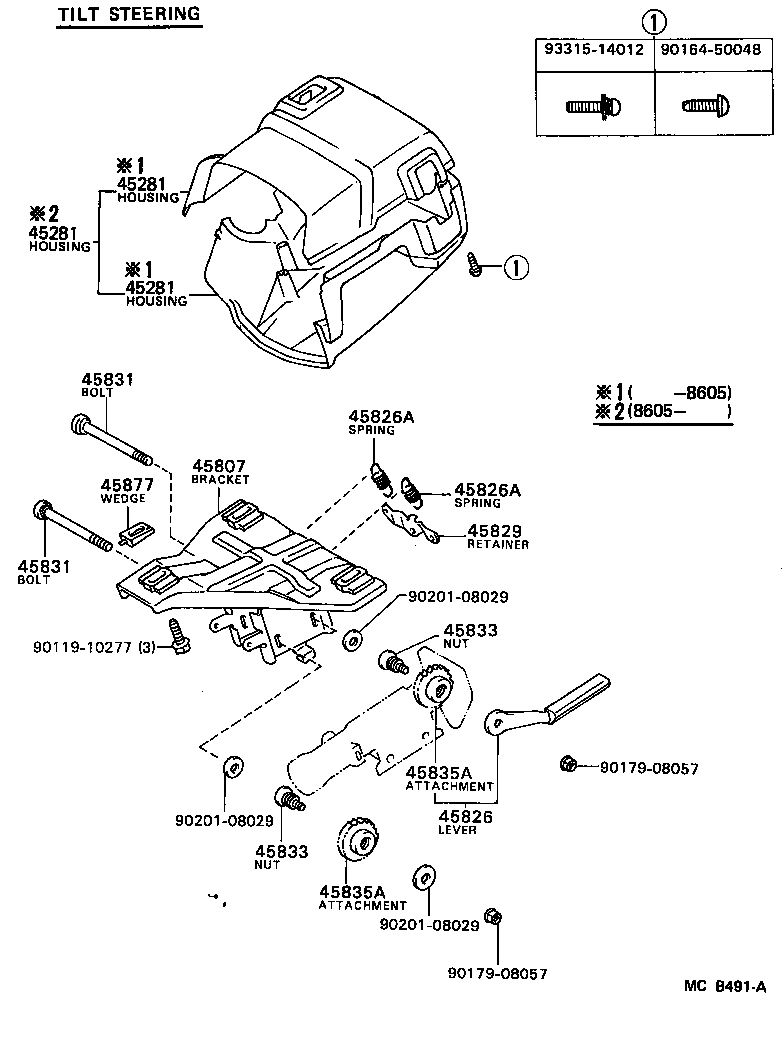

(8408- )DLX,SR5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1603002 |
AL21 LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604002 |
AL21 UPR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604006 |
AL2# UPR,BROWN,BROWN |
1 | ||
| 45286-1604003 |
AL2# UPR,GRAY,GRAY |
1 | ||
| 45287-1603003 |
AL2# LWR,GRAY,GRAY |
1 | ||
| 45286-1604005 |
AL2#..(DLX,STD)..CND UPR,BEIGE,BEIGE |
1 | ||
| 45287-1603005 |
AL2#..(DLX,STD)..CND LWR,BEIGE,BEIGE |
1 | ||
| 45287-1603006 |
AL2# LWR,BROWN,BROWN |
1 | ||
| 45286-1604002 |
AL21..SED..(DLX,STD)..CND UPR,DARK WINE,RED/MAROON |
1 | ||
| 45287-1603002 |
AL21..SED..(DLX,STD)..CND LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1605002 |
AL21..SED..DLX UPR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45286-1605005 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1605003 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690302 |
AL21..SED..CND DARK WINE,RED/MAROON |
1 | ||
| 45287-1603013 |
AL2#..(DLX,STD)..CND LWR,GRAY,GRAY |
1 | ||
| 45287-1605002 |
AL21..SED..DLX LWR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45287-1605005 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1604013 |
AL2#..(DLX,STD)..CND UPR,GRAY,GRAY |
1 | ||
| 45287-1605003 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690402 |
AL21..SED..DLX W/TILT STEERING,DARK WINE,RED/MAROON |
1 | ||
| 45286-1690315 |
AL21..DLX..3A BEIGE,DARK BEIGE |
1 | ||
| 45286-1690313 |
AL2#..(DLX,STD)..CND GRAY,GRAY |
1 | ||
| 45286-1690403 |
AL2#..DLX,SR5 W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1603002 |
AL21 LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604002 |
AL21 UPR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604006 |
AL2# UPR,BROWN,BROWN |
1 | ||
| 45286-1604003 |
AL2# UPR,GRAY,GRAY |
1 | ||
| 45287-1603003 |
AL2# LWR,GRAY,GRAY |
1 | ||
| 45286-1604005 |
AL2#..(DLX,STD)..CND UPR,BEIGE,BEIGE |
1 | ||
| 45287-1603005 |
AL2#..(DLX,STD)..CND LWR,BEIGE,BEIGE |
1 | ||
| 45287-1603006 |
AL2# LWR,BROWN,BROWN |
1 | ||
| 45286-1604002 |
AL21..SED..(DLX,STD)..CND UPR,DARK WINE,RED/MAROON |
1 | ||
| 45287-1603002 |
AL21..SED..(DLX,STD)..CND LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1605002 |
AL21..SED..DLX UPR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45286-1605005 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1605003 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690302 |
AL21..SED..CND DARK WINE,RED/MAROON |
1 | ||
| 45287-1603013 |
AL2#..(DLX,STD)..CND LWR,GRAY,GRAY |
1 | ||
| 45287-1605002 |
AL21..SED..DLX LWR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45287-1605005 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1604013 |
AL2#..(DLX,STD)..CND UPR,GRAY,GRAY |
1 | ||
| 45287-1605003 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690402 |
AL21..SED..DLX W/TILT STEERING,DARK WINE,RED/MAROON |
1 | ||
| 45286-1690315 |
AL21..DLX..3A BEIGE,DARK BEIGE |
1 | ||
| 45286-1690313 |
AL2#..(DLX,STD)..CND GRAY,GRAY |
1 | ||
| 45286-1690403 |
AL2#..DLX,SR5 W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1603002 |
AL21 LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604002 |
AL21 UPR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1604006 |
AL2# UPR,BROWN,BROWN |
1 | ||
| 45286-1604003 |
AL2# UPR,GRAY,GRAY |
1 | ||
| 45287-1603003 |
AL2# LWR,GRAY,GRAY |
1 | ||
| 45286-1604005 |
AL2#..(DLX,STD)..CND UPR,BEIGE,BEIGE |
1 | ||
| 45287-1603005 |
AL2#..(DLX,STD)..CND LWR,BEIGE,BEIGE |
1 | ||
| 45287-1603006 |
AL2# LWR,BROWN,BROWN |
1 | ||
| 45286-1604002 |
AL21..SED..(DLX,STD)..CND UPR,DARK WINE,RED/MAROON |
1 | ||
| 45287-1603002 |
AL21..SED..(DLX,STD)..CND LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-1605002 |
AL21..SED..DLX UPR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45286-1605005 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1605003 |
AL2#..DLX,SR5 UPR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690302 |
AL21..SED..CND DARK WINE,RED/MAROON |
1 | ||
| 45287-1603013 |
AL2#..(DLX,STD)..CND LWR,GRAY,GRAY |
1 | ||
| 45287-1605002 |
AL21..SED..DLX LWR,W/TILT STEERING,DARK WINE,DARK WINE |
1 | ||
| 45287-1605005 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,BEIGE,BEIGE |
1 | ||
| 45286-1604013 |
AL2#..(DLX,STD)..CND UPR,GRAY,GRAY |
1 | ||
| 45287-1605003 |
AL2#..DLX,SR5 LWR,W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45286-1690402 |
AL21..SED..DLX W/TILT STEERING,DARK WINE,RED/MAROON |
1 | ||
| 45286-1690315 |
AL21..DLX..3A BEIGE,DARK BEIGE |
1 | ||
| 45286-1690313 |
AL2#..(DLX,STD)..CND GRAY,GRAY |
1 | ||
| 45286-1690403 |
AL2#..DLX,SR5 W/TILT STEERING,GRAY,GRAY |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
AL2# |
1 | ||
| Common parts | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-08057 | ||||
| 90201-08029 | ||||
| 93315-14012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
