AL21L-ZHHRCA (1983)
Toyota Tercel
Production
Aug 1983
-
Aug 1986
Engine
3AC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208-8608)AL21

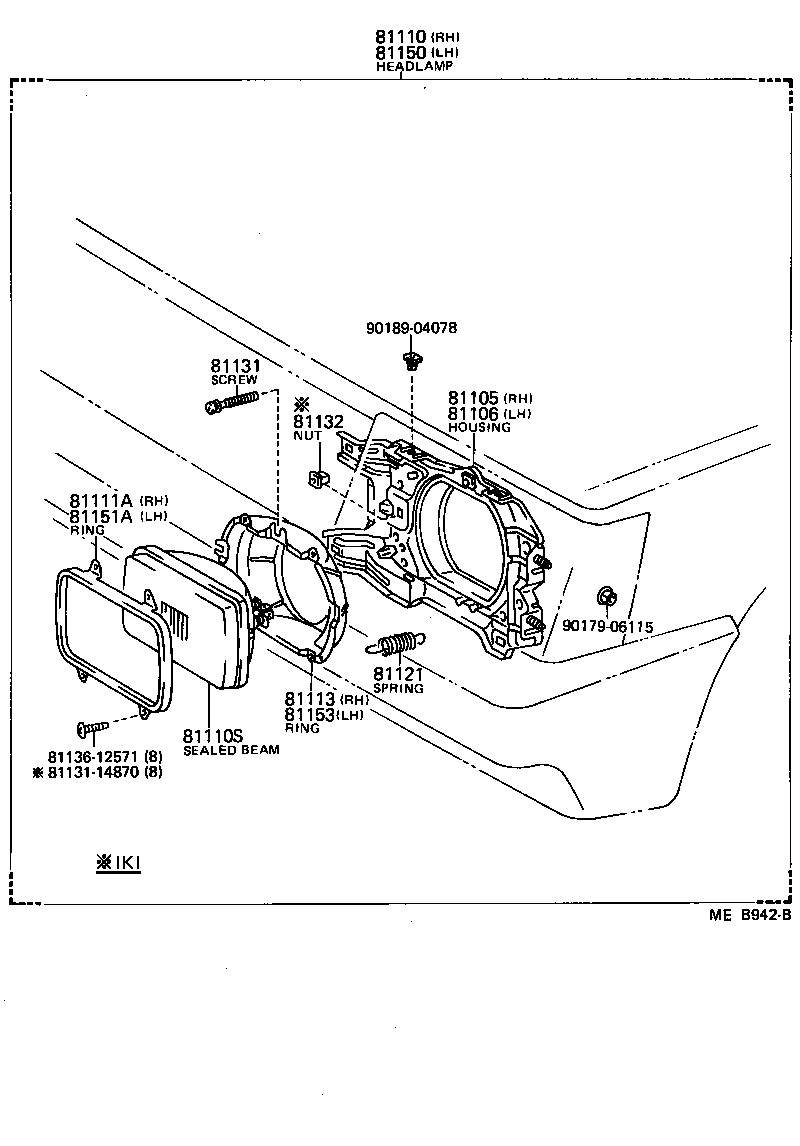

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-16230 |
AL21..DLX,STD IKI |
1 | ||
| 81105-16220 |
AL21 KOITO |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-16230 |
AL21..DLX,STD IKI |
1 | ||
| 81106-16220 |
AL21 KOITO |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80217 |
AL21..DLX,STD IKI |
1 | ||
| 81110-80216 |
AL21..DLX,STD KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04004 |
AL2#..DLX,STD 12V 65/55W,*WB,12V 65/55W,KOITO |
2 | ||
| 90981-04003 |
AL21..DLX,STD 12V 65/55W,*WB,12V 65/55W,IKI |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-16020 |
AL2# KOITO |
1 | ||
| 81111-16010 |
AL21..DLX,STD IKI |
1 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-16230 |
AL21..DLX,STD IKI |
1 | ||
| 81153-16020 |
AL2# KOITO |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-16020 |
AL2# KOITO |
2 | ||
| 81121-16230 |
AL21..DLX,STD IKI |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-10031 |
AL2# KOITO |
4 | ||
| 81131-16230 |
AL21..DLX,STD IKI |
4 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 90041-89003 |
AL21..DLX,STD IKI |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80213 |
AL21..DLX,STD KOITO |
1 | ||
| 81150-80214 |
AL21..DLX,STD IKI |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-16020 |
AL2# KOITO |
1 | ||
| 81111-16010 |
AL21..DLX,STD IKI |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-16230 |
AL21..DLX,STD IKI |
1 | ||
| 81113-16020 |
AL2# KOITO |
1 | ||
| Common parts | ||||
| 81131-14870 | ||||
| 81136-12571 | ||||
| 90179-06115 | ||||
| 90189-04078 | ||||
