AL21L-ZHHRCA (1983)

Toyota Tercel

Production Aug 1983 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8502- )

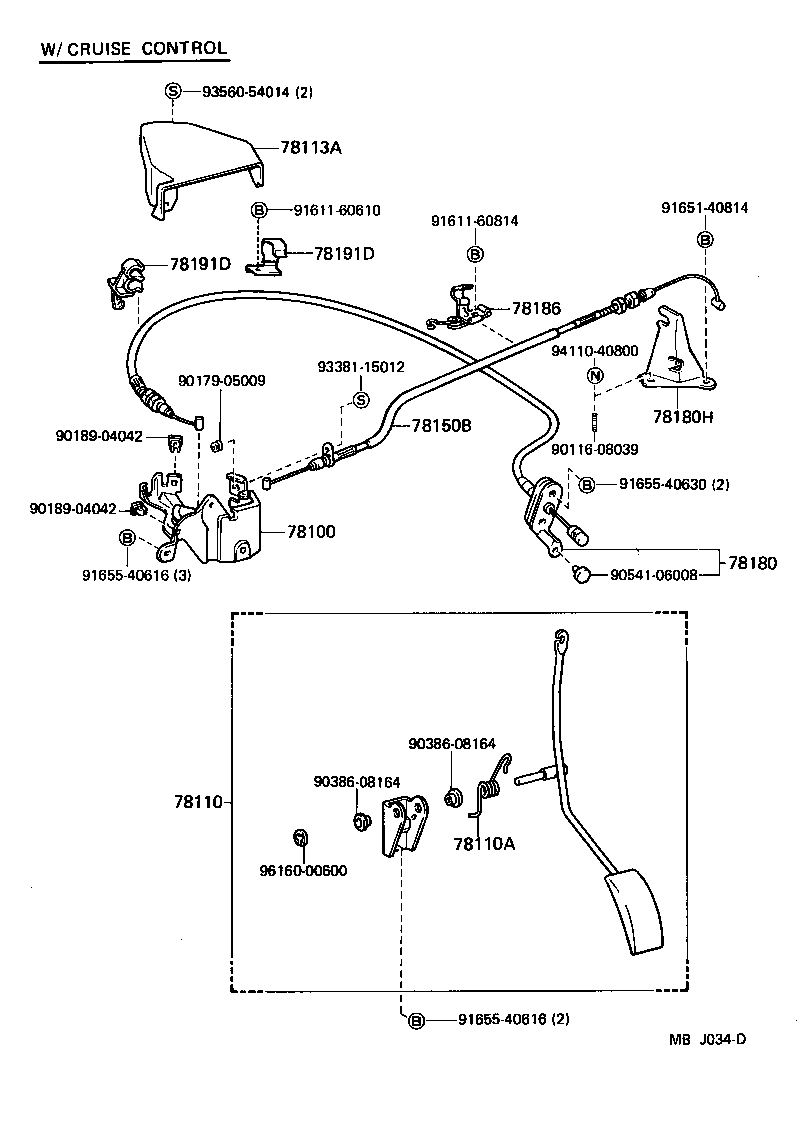

Click highlighted areas on diagram

diagram 78100 78110 78110A 78113A 78150B 78180 78180H 78186 78191D 78191D 9011608039 9017905009 9018904042 9018904042 9038608164 9038608164 9054106008 9161160610 9161160814 9165140814 9165540616 9165540616 9165540630 9338115012 9356054014 9411040800 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-16040

AL2#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18031

AL2#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-16070

AL2#

 1
78180H - BRACKET, ACCELERATOR CONTROL CABLE
78184-16030

AL2#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-16020

AL2#..USA

 1
78191D - CLAMP, ACCELERATOR CONTROL CABLE
78183-16030

AL2#

 1
78191D - CLAMP, ACCELERATOR CONTROL CABLE
78183-16030

AL2#

 1
Common parts
90116-08039
90179-05009
90189-04042
90386-08164
90541-06008
91611-60610
91611-60814
91651-40814
91655-40616
91655-40630
93381-15012
93560-54014
94110-40800
96160-00600
