AL21L-ZHHRCA (1983)

Toyota Tercel

Production Aug 1983 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8708)AL21

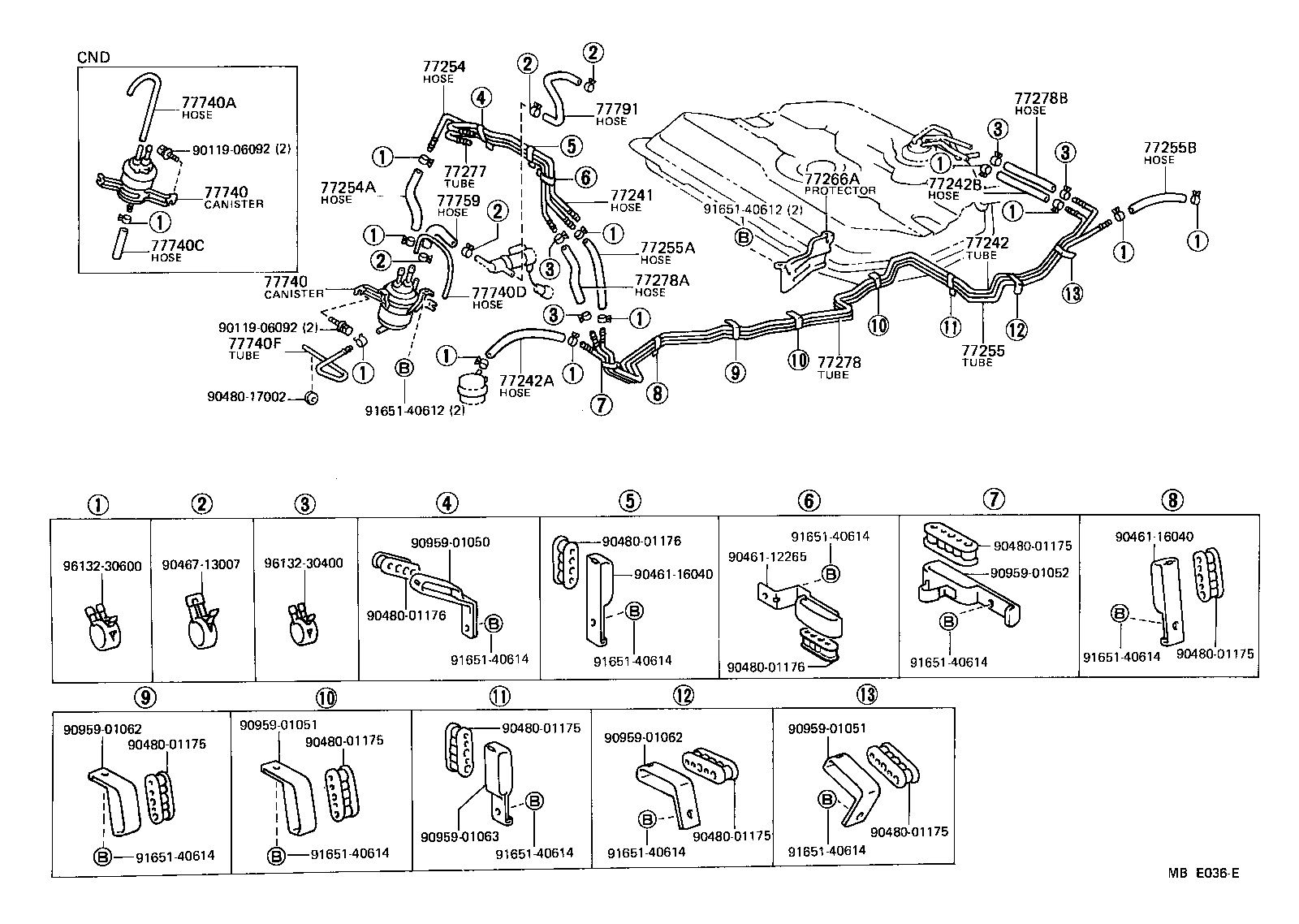

Click highlighted areas on diagram

diagram 77241 77242 77242A 77242B 77254 77254A 77255 77255A 77255B 77266A 77277 77278 77278A 77278B 77740 77740 77740A 77740C 77740D 77740F 77759 77791 9011906092 9011906092 9046112265 9046116040 9046116040 9046713007 9048001175 9048001175 9048001175 9048001175 9048001175 9048001175 9048001175 9048001176 9048001176 9048001176 9048017002 9095901050 9095901051 9095901051 9095901052 9095901062 9095901062 9095901063 9165140612 9165140612 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9613230400 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77252-16060

AL2#

 1
77242 - TUBE, FUEL MAIN, NO.2
77251-16050

AL21

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

AL2#

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

AL21

*H,L=130

 1
77254 - TUBE, FUEL EMISSION, NO.1
77262-16020

AL2#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77279-16010

AL2#

 1
77255 - TUBE, FUEL EMISSION, NO.2
77261-16040

AL21

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

AL2#

*H,L=160

 1
77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)
95332-06020

AL21

*H,L=140

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-16010

AL21

 1
77277 - TUBE, FUEL RETURN, NO.1
77256-16020

AL2#

 1
77278 - TUBE, FUEL RETURN, NO.2
77255-16040

AL21

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95332-04020

AL2#

*H,L=130

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95332-04020

AL21

*H,L=160

 1
77740 - CANISTER ASSY, CHARCOAL
77740-16060

AL2#..USA;AL21..STD..CND..3AC

 1
77740-16070

AL21..3A;AL2#..WG..CND

 1
77740 - CANISTER ASSY, CHARCOAL
77740-16060

AL2#..USA;AL21..STD..CND..3AC

 1
77740-16070

AL21..3A;AL2#..WG..CND

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

AL21..3A;AL2#..WG..CND

*H,L=300,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90445-12122

AL21..3A;AL2#..WG..CND

L=220

 1
90445-12122

AL21..3A;AL2#..WG..MTM..CND

L=220

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-16040

AL2#..USA;AL21..STD..CND..3AC

 1
77759 - HOSE, CHARCOAL CANISTER
77759-16010

AL2#..USA;AL21..STD..CND..3AC

 1
77759-16011

AL25;AL21..USA;AL21..(3FC,4F)..CND..3AC

 1
77791 - HOSE, OUTER VENT VALVE TO CARBURETOR
77791-16030

AL2#..USA;AL21..STD..CND..3AC

 1
Common parts
90119-06092
90461-12265
90461-16040
90467-13007
90480-01175
90480-01176
90480-17002
90959-01050
90959-01051
90959-01052
90959-01062
90959-01063
91651-40612
91651-40614
96132-30400
96132-30600
