AL21L-ZHHRCA (1983)

Toyota Tercel

Production Aug 1983 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8408)

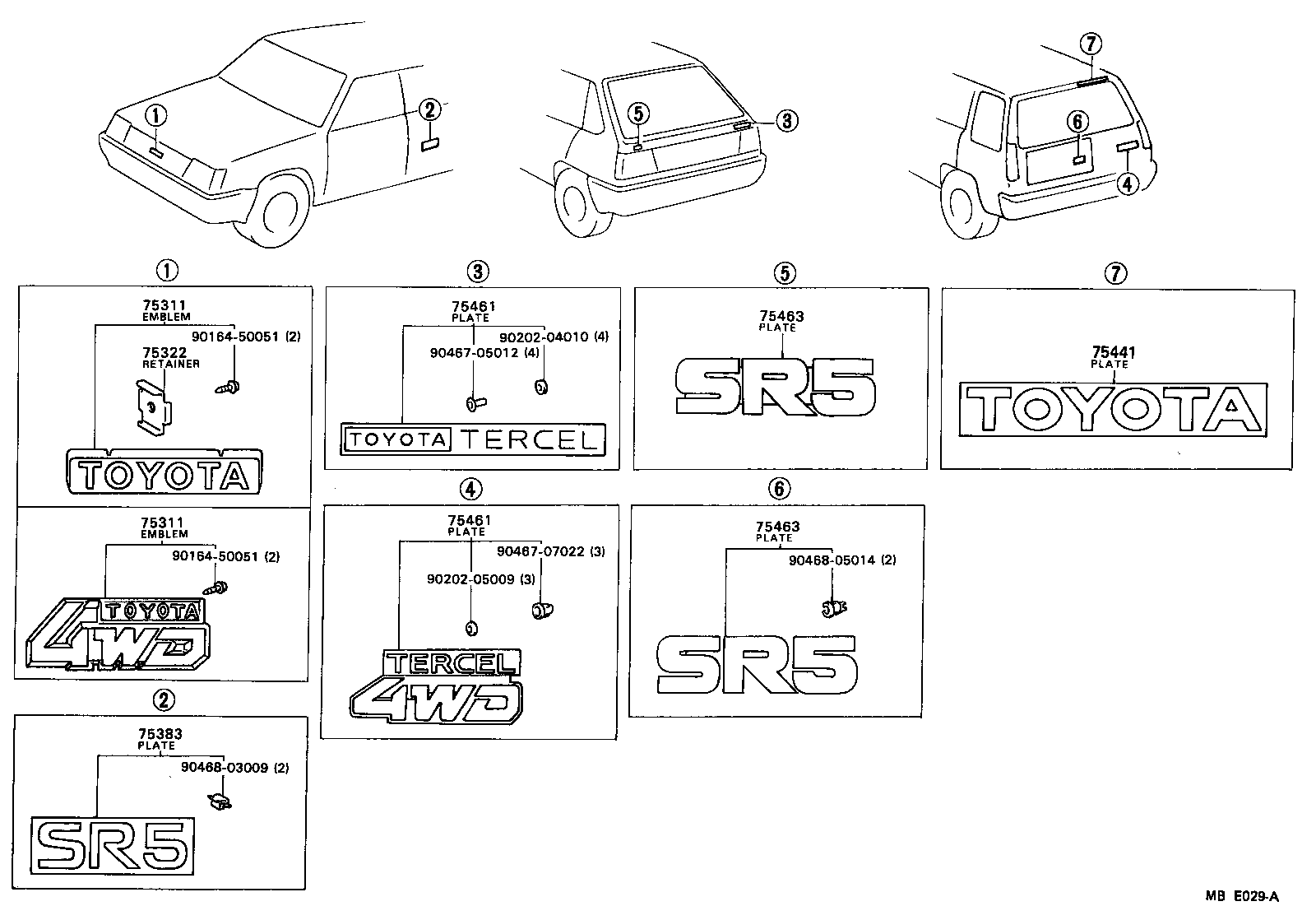

Click highlighted areas on diagram

diagram 75311 75311 75322 75383 75441 75461 75461 75463 75463 9016450051 9016450051 9020204010 9020205009 9046705012 9046707022 9046803009 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80020

AL21

 1
75311-16190

AL21

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80020

AL21

 1
75311-16190

AL21

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-16040

AL21

 2
75324-16050

AL21

 2
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL21..SED

 1
75441-16190

AL21..SED

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL21..SED

 1
75441-16190

AL21..SED

 1
Common parts
90164-50051
90202-04010
90202-05009
90467-05012
90467-07022
90468-03009
90468-05014

(8408- )

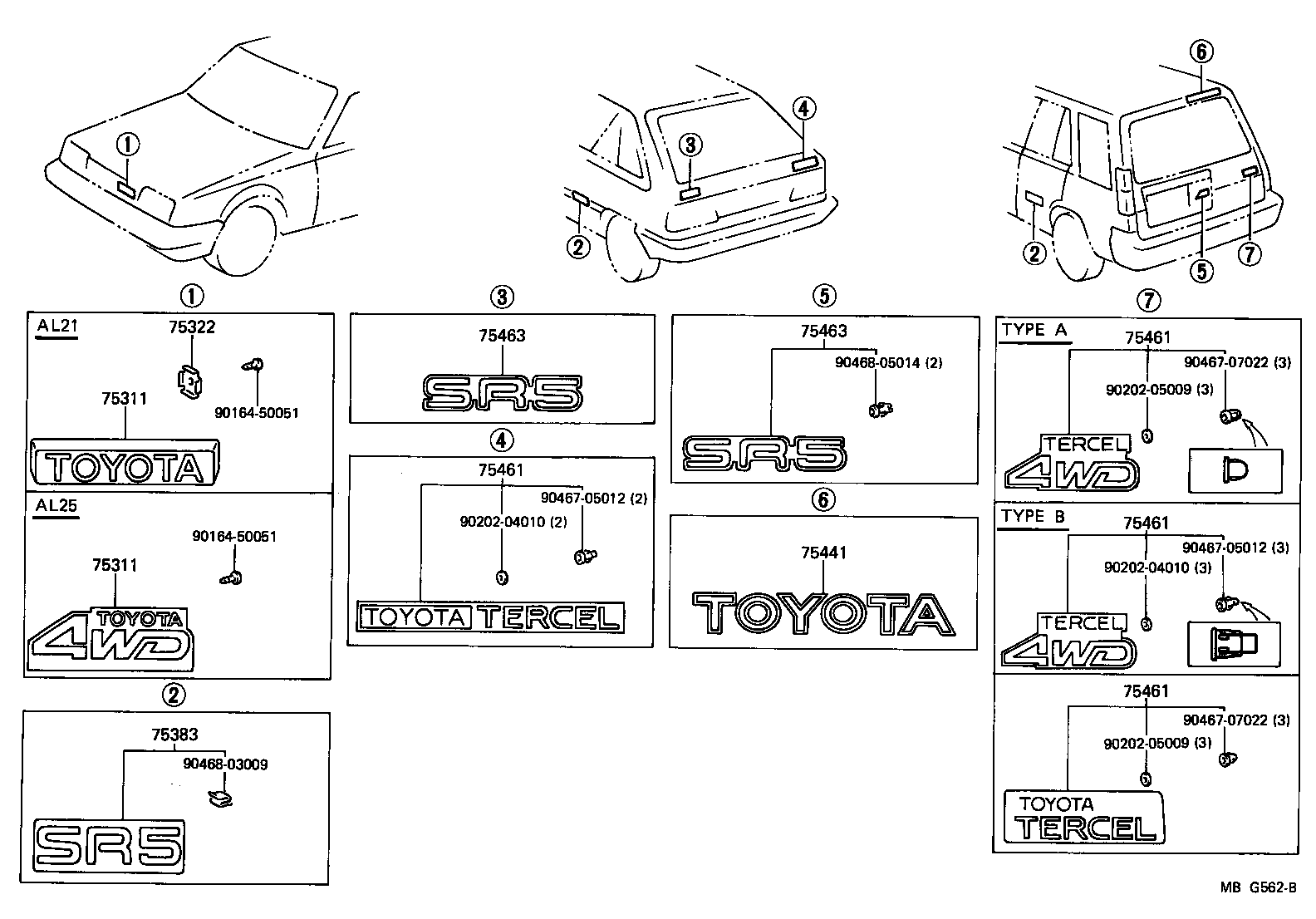

Click highlighted areas on diagram

diagram 75311 75311 75322 75383 75441 75461 75461 75461 75461 75463 75463 9016450051 9016450051 9020204010 9020204010 9020205009 9020205009 9046705012 9046705012 9046707022 9046707022 9046803009 9046805014
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80020

AL21

 1
75311-16190

AL21

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80020

AL21

 1
75311-16190

AL21

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-16040

AL21

 2
75324-16050

AL21

 2
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL21..SED

 1
75441-16190

AL21..SED

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL21..SED

 1
75441-16190

AL21..SED

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL21..SED

 1
75441-16190

AL21..SED

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL21..SED

 1
75441-16190

AL21..SED

 1
Common parts
90164-50051
90202-04010
90202-05009
90467-05012
90467-07022
90468-03009
90468-05014
