AL21L-ZHHRCA (1983)

Toyota Tercel

Production Aug 1983 - Aug 1986
Engine 3AC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208-8608)SED

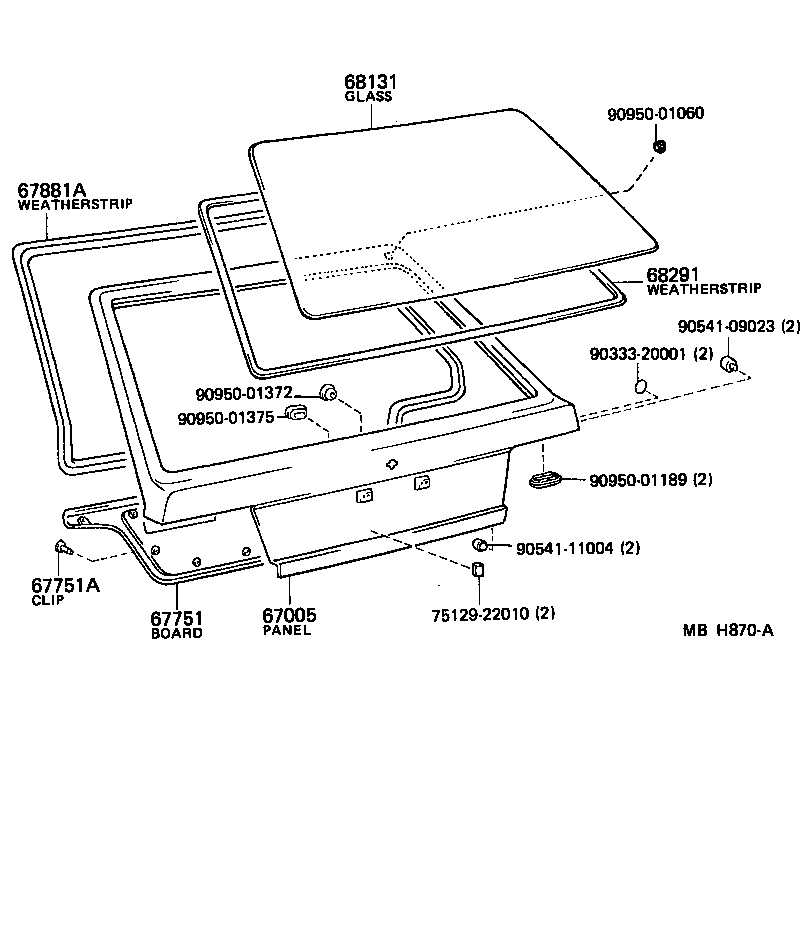

Click highlighted areas on diagram

diagram 67005 67751 67751A 67881A 68131 68291 7512922010 9033320001 9054109023 9054111004 9095001060 9095001189 9095001372 9095001375
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-16050

AL21..SED

W/O RR WIPER

 1
67005-16060

AL21..SED

W/RR WIPER

 1
67005-16061

AL21..SED

W/RR WIPER

 1
67005-16062

AL21..SED

W/RR WIPER

 1
67005-16051

AL21..SED

W/O RR WIPER

 1
67005-16052

AL21..SED

W/O RR WIPER

 1
67751 - BOARD, BACK DOOR TRIM
67751-1602002

AL21..SED

DARK WINE,DARK WINE

 1
67751-1602003

AL21..SED

GRAY,GRAY

 1
67751-1602002

AL21..SED..(DLX,STD)

DARK WINE,DARK WINE

 1
67751-1601002

AL21..SED

DARK WINE,DARK WINE

 1
67751-1602005

AL21..SED

BEIGE,BEIGE

 1
67751-1602006

AL21..SED

BROWN,BROWN

 1
67751-1601015

AL21..5DS

BEIGE,BEIGE

 1
67751-1602013

AL21..SED

GRAY,GRAY

 1
67751-1601005

AL21..SED

BEIGE,BEIGE

 1
67751-1601003

AL21..SED

GRAY,GRAY

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0601702

AL21..SED

DARK WINE,DARK WINE

 13
90467-0601726

AL21..SED

BROWN,BROWN

 13
90467-0601713

AL21..SED

GRAY,GRAY

 13
90467-0601702

AL21..SED..(DLX,STD)

DARK WINE,DARK WINE

 13
90467-0601745

AL21..SED

BEIGE,BEIGE

 13
90467-0601753

AL21..SED

GRAY,GRAY

 13
90467-0601749

AL21..5DS

BEIGE,DARK BEIGE

 13
67881A - WEATHERSTRIP, BACK DOOR
67881-16040

AL2#

 1
68131 - GLASS, BACK DOOR
68131-16120

AL21..STD..USA

*EHT,T=3.5

 1
68131-16140

AL21..STD..3A;AL21..(3FC,5F)..STD..3AC

*EHT,T=3.5,W/HEAVY DEFOGGER

 1
68131-16110

AL21..STD..USA

*TEM,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-16010

AL21..SED

 1
Common parts
75129-22010
90333-20001
90541-09023
90541-11004
90950-01060
90950-01189
90950-01372
90950-01375
